RUNICDatasheet (PDF)

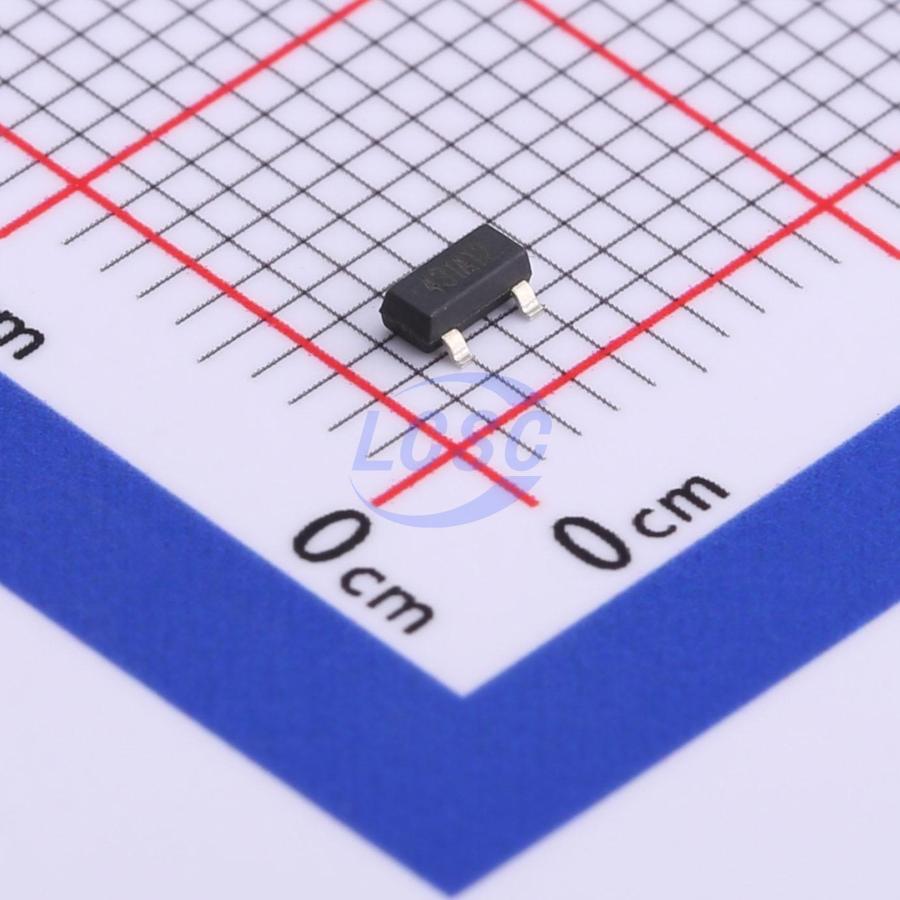

RS431AYSF3
36V ±0.5% 37V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
RS431/RS432 Precision Programmable Reference
- Manufacturer
- RUNIC
- Manufacturer part #
- RS431AYSF3
- Store part #
- C783426
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,090 in stock
#C783426
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹16.48 | ₹164.80 |
| 100+ | ₹12.32 | ₹1,232.00 |
| 300+ | ₹10.24 | ₹3,072.00 |
| 3,000+ | ₹8.68 | ₹26,040.00 |
10 × ₹16.48
₹164.80
excl. GST
₹194.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS431AYSF3
₹164.80 for 10 + GST
Specifications
- Output Voltage
- 36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 37V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
RS431 and RS432 device are three-terminal adjustable shunt regulators, with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. These devices have provides a very sharp turn-on characteristic, making these devices excellent replacement for Zener diodes in many applications. Both the RS431 and RS432 devices are offered in two grades, with initial tolerances (at 25℃) of 0.5% and 1%, for A and B grade.
Applications
- Adjustable voltage and current referencing
- Power supply
- Zener replacement
- Voltage monitoring
- Comparator with integrated reference
- As precision voltage reference
Key features
- Reference Voltage Tolerance at 25℃ 0.5% (A Grade) 1% (B Grade)
- Programmable output voltage to 36V
- Low dynamic output impedance 0.2Ω
- Sink current capability of 0.5 to 100mA
- Equivalent full-range temperature coefficient of 50ppm/℃ typical
- Temperature compensated for operation over full rated operating temperature range
- Low output noise voltage
- Fast turn on response
- Operation from -40℃ to 105℃
- Lead-Free Packages: SOT23
