RUNIC

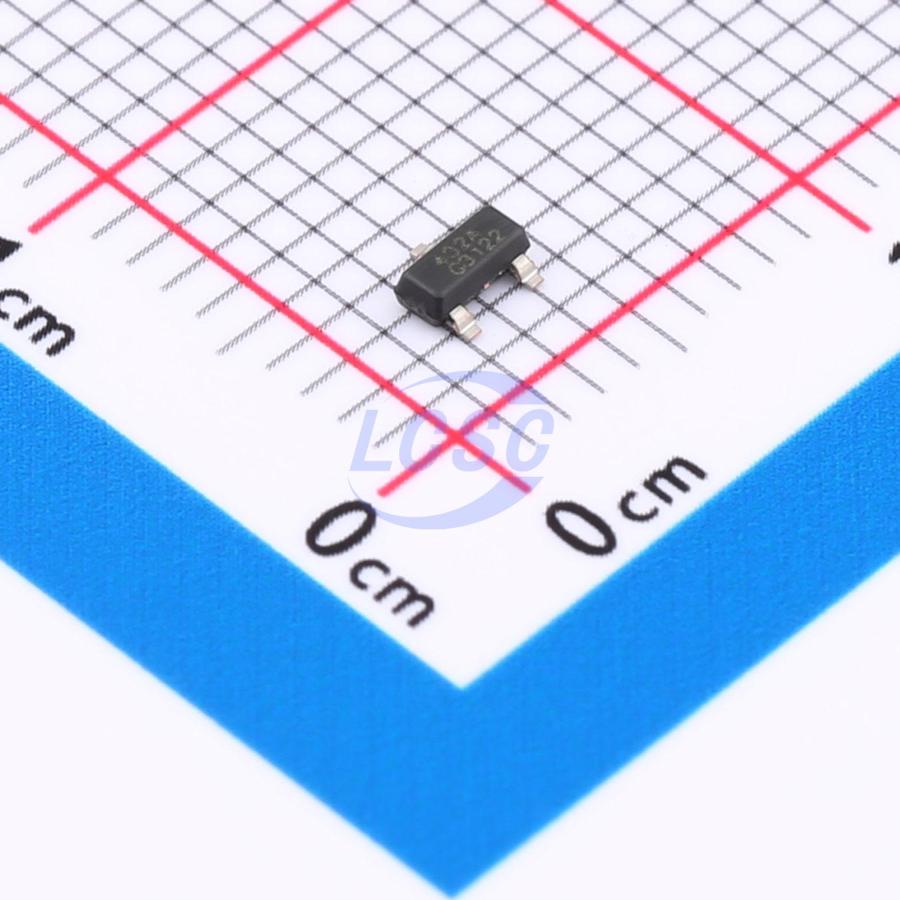

RS432AXSF3-Q1

2.5V~32V ±0.5% 2.5V~32V 100mA Adjustable SOT-23 Voltage Reference

SOT-23RoHSActive

Precision Programmable Reference

Manufacturer: RUNIC
Manufacturer part #: RS432AXSF3-Q1
Store part #: C19269208
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,830 in stock

#C19269208

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
5+	₹25.89	₹129.45
50+	₹19.33	₹966.50
150+	₹16.52	₹2,478.00
500+	₹13.02	₹6,510.00

Quantity (min 5, multiples of 5)

5 × ₹25.89

₹129.45

excl. GST

₹152.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS432AXSF3-Q1

₹129.45 for 5 + GST

Specifications

Output Voltage: 2.5V~32V
Tolerance: ±0.5%
Voltage - Supply: 2.5V~32V
Minimum Cathode Current for Regulation: 300uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Features: Temperature compensation control
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The RS431-Q1 and RS432-Q1 device are three-terminal adjustable shunt regulators, with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between VREF (approximately 2.5V) and 32V with two external resistors. These devices have provided a very sharp turnon characteristic, making these devices excellent replacement for Zener diodes in many applications. Both the RS431-Q1 and RS432-Q1 devices are offered in two grades, with initial tolerances (at 25℃) of 0.5%, for A grade.

Applications

Adjustable Voltage and Current Referencing
Power Supply Zener Replacement
Voltage Monitoring Comparator with Integrated Reference
As Precision Voltage Reference

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified with the Grade 1 Reference Voltage Tolerance at 25°C 0.5% (A Grade) Programmable Output Voltage to 32V
Low Dynamic Output Impedance 0.2Ω
Sink Current Capability of 0.5mA to 100mA
Equivalent Full-Range Temperature Coefficient of 50ppm/°C
Typical Temperature Compensated for Operation Over Full Rated Operating Temperature Range
Low Output Noise Voltage
Fast Turn on Response
Operation Junction Temperature from -40°C to 150°C
Lead-Free Packages: SOT23
