RUNIC

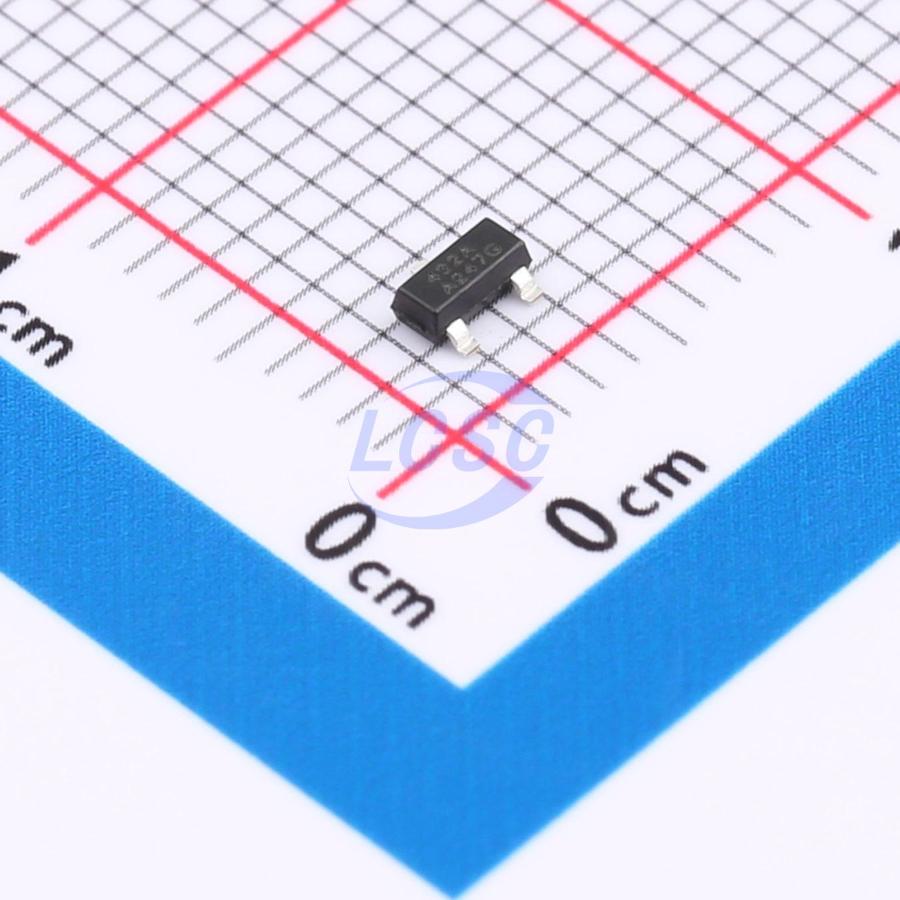

RS432AYSF3

2.5V~36V ±0.5% 2.5V~36V 100mA Adjustable SOT-23-3 Voltage Reference RoHS

SOT-23-3ROHS3 CompliantActive

Precision Programmable Reference

Manufacturer: RUNIC
Manufacturer part #: RS432AYSF3
Store part #: C5125827
Package / case: SOT-23-3
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

340 in stock

#C5125827

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹16.30	₹163.00
100+	₹12.18	₹1,218.00
300+	₹10.12	₹3,036.00
3,000+	₹8.59	₹25,770.00

Quantity (min 10, multiples of 10)

10 × ₹16.30

₹163.00

excl. GST

₹192.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS432AYSF3

₹163.00 for 10 + GST

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±0.5%
Voltage - Supply: 2.5V~36V
Minimum Cathode Current for Regulation: 300uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃@(Ta)
Features: Temperature compensation control
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

The RS431 and RS432 device are three-terminal adjustable shunt regulators, with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. These devices have provided a very sharp turn-on characteristic, making these devices excellent replacement for Zener diodes in many applications. Both the RS431 and RS432 devices are offered in two grades, with initial tolerances (at 25°C) of 0.5% and 1%, for A and B grade.

Applications

Adjustable Voltage and Current Referencing
Power Supply Zener Replacement
Voltage Monitoring
Comparator with Integrated Reference
As Precision Voltage Reference

Key features

Reference Voltage Tolerance at 25°C: 0.5% (A Grade), 1% (B Grade)
Programmable Output Voltage to 36V
Low Dynamic Output Impedance 0.2Ω
Sink Current Capability of 0.5mA to 100mA
Equivalent Full-Range Temperature Coefficient of 50ppm/°C
Typical Temperature Compensated for Operation Over Full Rated Operating Temperature Range
Low Output Noise Voltage
Fast Turn on Response Operation
Junction Temperature from -40°C to 150°C
Lead-Free Packages: SOT23
