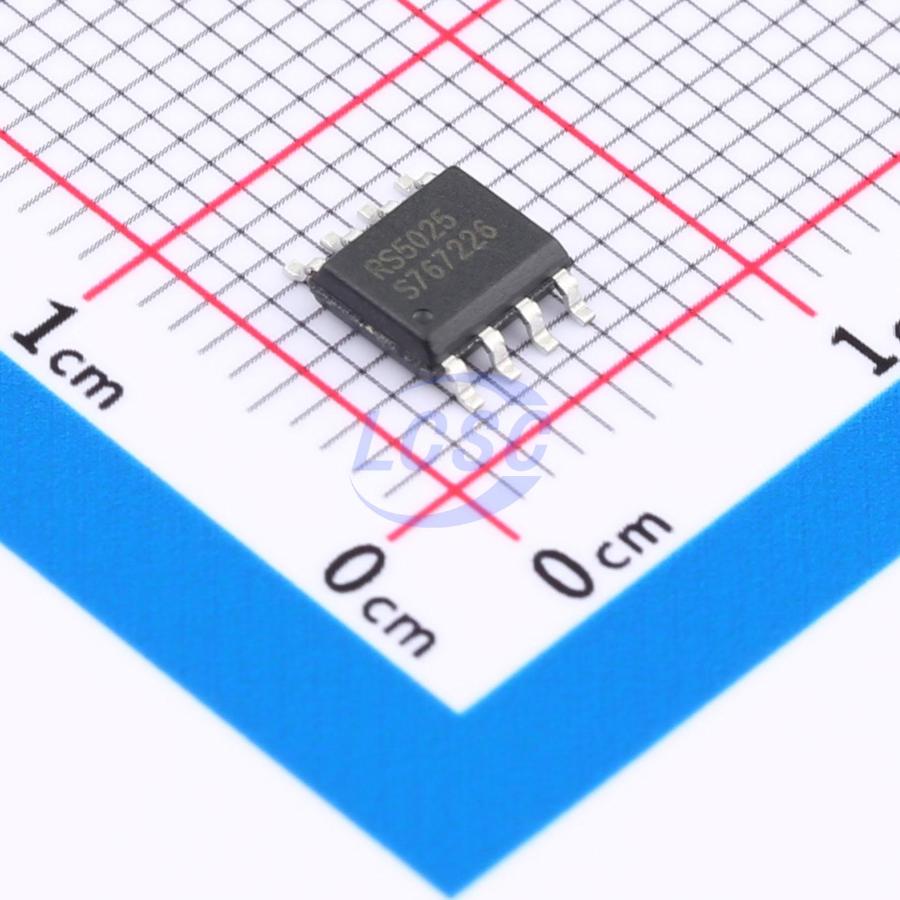

RS5025XK
2.5V ±0.1% 4V~16V 10mA Fixed SOIC-8 Voltage Reference
SOIC-8RoHSActive
Low-noise, ultra-low drift, precision voltage reference
- Manufacturer
- RUNIC
- Manufacturer part #
- RS5025XK
- Store part #
- C19269221
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,083 in stock
#C19269221
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.40 | ₹244.40 |
| 10+ | ₹200.83 | ₹2,008.30 |
| 30+ | ₹173.45 | ₹5,203.50 |
| 100+ | ₹145.24 | ₹14,524.00 |
1 × ₹244.40
₹244.40
excl. GST
₹288.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS5025XK
₹244.40 for 1 + GST
Specifications
- Quiescent Current
- 2mA
- Output Voltage
- 2.5V
- Tolerance
- ±0.1%
- Voltage - Supply
- 4V~16V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.199 g
Overview
The RS50XX is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (3 ppm/℃) and high accuracy (0.1%) are achieved using proprietary design techniques with 2 mA (typical) quiescent current. These features, combined with low noise, make the RS50XX family ideal for use in high-precision data acquisition systems. The RS50XX is available in Green SOIC-8(SOP8) packages. It operates over an ambient temperature range of -40℃ to +125℃.
Applications
- Precision Data Acquisition Systems
- Semiconductor Test Equipment
- Medical Instrumentation
- Industrial Process Controls
- Pressure and Temperature Transmitters
- Lab and Field Instrumentation
Key features
- Low Temperature Drift: 3 ppm/°C (TYP)
- High Accuracy: 0.1% Maximum
- Low Noise: 7.5 μVₚ₋ₚ/V
- Low IQ: 2 mA (Typical)
- Operating Temperature Range: -40°C to +125°C
- High Output Current: ±10 mA
- Micro SIZE PACKAGES: SOIC-8(SOP8)
