RUNICDatasheet (PDF)

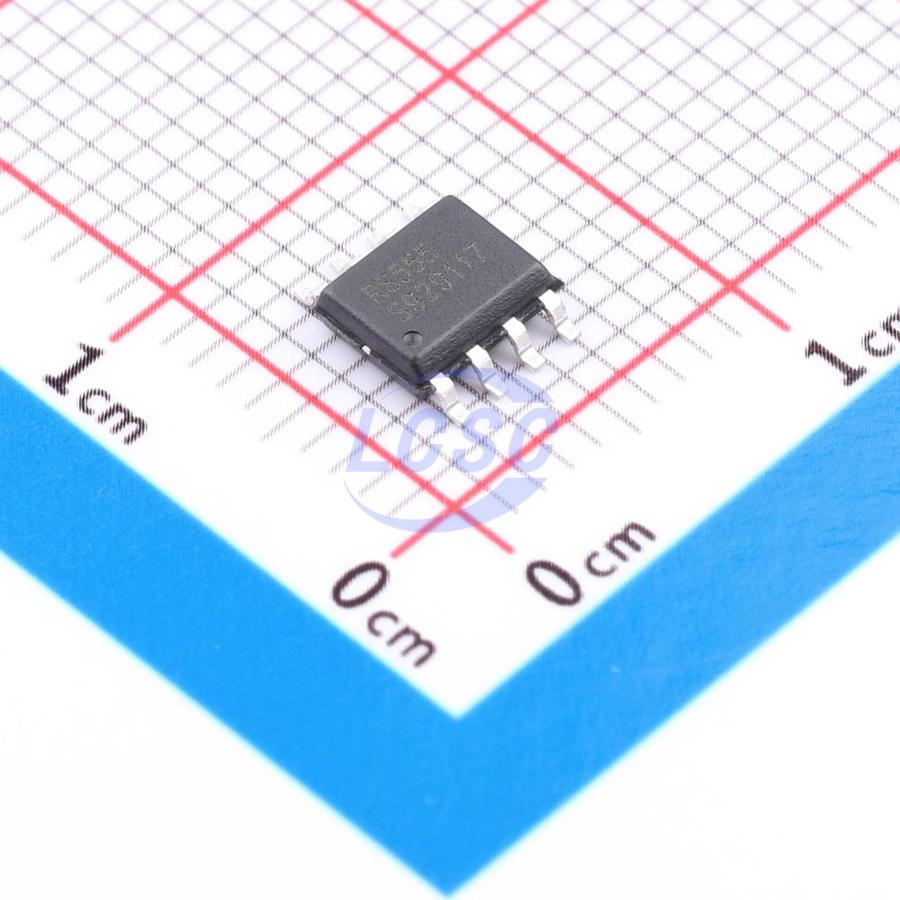

RS555XK
4.5V~16V SOP-8 Application Specific Clock/Timing
SOP-8RoHSSold out at source
- Manufacturer
- RUNIC
- Manufacturer part #
- RS555XK
- Store part #
- C42459627
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,675 in stock
#C42459627
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.44 | ₹87.20 |
| 50+ | ₹13.79 | ₹689.50 |
| 150+ | ₹11.96 | ₹1,794.00 |
| 500+ | ₹10.58 | ₹5,290.00 |
| 2,500+ | ₹9.49 | ₹23,725.00 |
| 4,000+ | ₹8.94 | ₹35,760.00 |
5 × ₹17.44
₹87.20
excl. GST
₹102.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS555XK
₹87.20 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~16V
- Features
- Reset function;Adjustable duty cycle oscillation;Duty cycle stabilization
- Output Current
- 100mA
- Timer Number
- 1
- Operating Temperature
- -40℃~+125℃
- Current - Supply
- 240uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
A low-power timer IC supporting a supply voltage range of 4.5V~16V with 0.5W power consumption, featuring 100mA sink current and 10mA source current capability. Suitable for timing, signal modulation, delay generation, and other applications, with a maximum output frequency of 6MHz. Available in SOP8 and MSOP8 packages.
Applications
- Precision timing
- Pulse generation
- Sequential timing
- Time delay generation
- PWM
- Linear ramp generation
- LED
- Telematics
