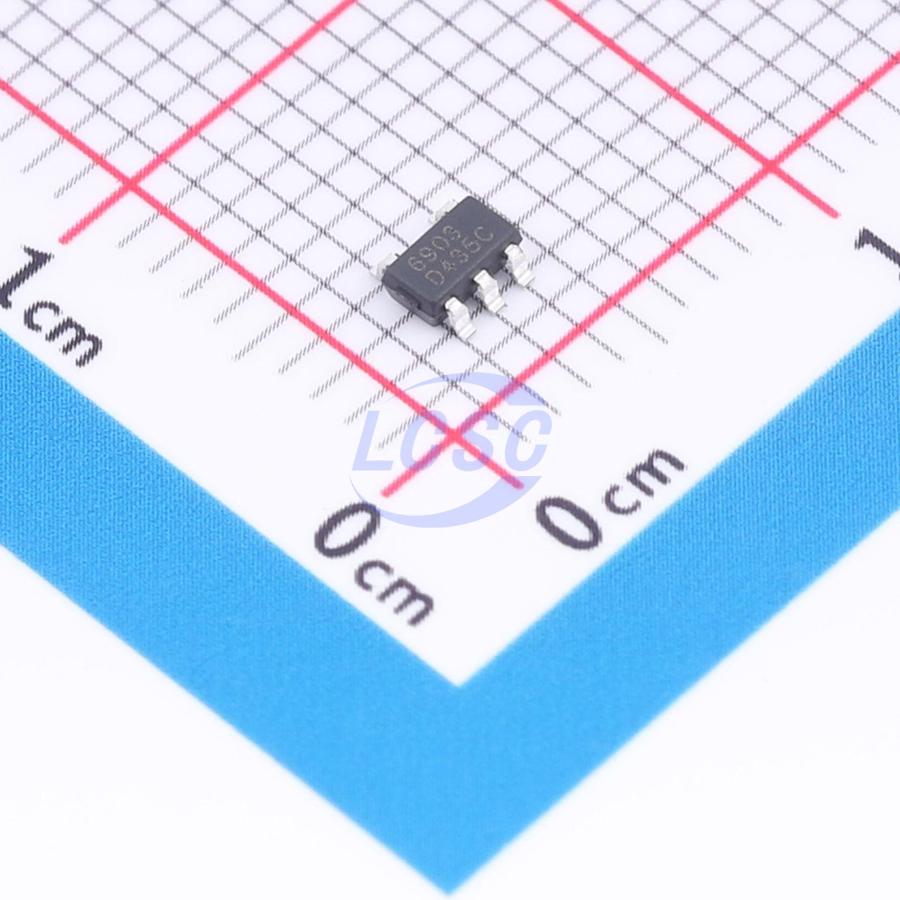

RUNIC

RS6903YF5

Inverted 50kHz -5.5V~-1.5V 60mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS3 CompliantActive

Manufacturer: RUNIC
Manufacturer part #: RS6903YF5
Store part #: C32710818
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,725 in stock

#C32710818

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹20.82	₹104.10
50+	₹16.44	₹822.00
150+	₹14.58	₹2,187.00
500+	₹12.24	₹6,120.00
3,000+	₹11.19	₹33,570.00
6,000+	₹10.57	₹63,420.00

Quantity (min 5, multiples of 5)

5 × ₹20.82

₹104.10

excl. GST

₹122.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS6903YF5

₹104.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Inverted
Frequency - Switching: 50kHz
Features: Soft-start
Operating Voltage: 1.5V~5.5V
Output Voltage: -5.5V~-1.5V
Output Current: 60mA
Energy Efficiency: 85%
Quiescent Current: 110uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.08 g

Overview

RS6903 generates an unregulated negative output voltage from an input voltage range of 1.5V to 5.5V. A complete DC/DC charge pump inverter can be built with only three external capacitors. By integrating the circuit to replace the Schottky diode typically required for load startup, additional board area and component count are reduced. The RS6903 delivers a maximum output current of up to 60mA, with typical conversion efficiency exceeding 85% over a wide output current range. The fixed switching frequency is 50kHz. The RS6903 is available in a SOT23-5 package and operates over an ambient temperature range of -40°C to +85°C.
