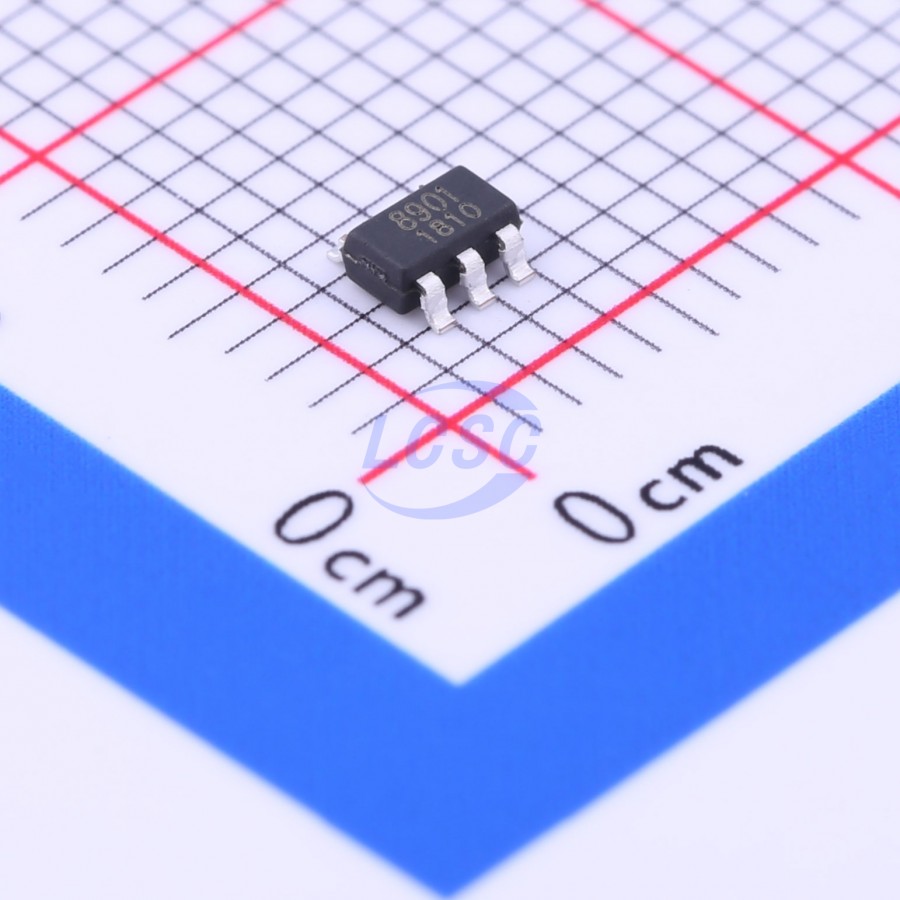

RS8901XF
1 400nA 1mV Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Comparators RoHS
Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8901XF
- Store part #
- C255492
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,465 in stock
#C255492
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.43 | ₹187.15 |
| 50+ | ₹26.55 | ₹1,327.50 |
| 150+ | ₹21.76 | ₹3,264.00 |
5 × ₹37.43
₹187.15
excl. GST
₹220.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8901XF
₹187.15 for 5 + GST
Specifications
- Number of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 13us
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Quiescent Current(Iq)
- 400nA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 7V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Response Time (tr)
- 240ns
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The RS8901 offers a wide supply range, low quiescent current 400nA (TYP), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems. Featuring a push-pull output stage, the RS8901 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load. The devices are ideal for system monitoring, include tablets, portable medical, smart phones. The RS8901 is specified at the full temperature range of -40°C to +125°C under single power supplies of 1.4V to 5.5V.
Applications
- OVERVOLTAGE AND UNDERVOLTAGE DETECTION
- MULTIVIBRATORS
- OVERCURRENT DETECTION
- SYSTEM MONITORING
- BATTERY POWERED SYSTEM
Key features
- Low supply current 400nA (TYP) at VS = 1.4V
- Low input offset voltage: Vos(max) = 5mV
- Rail-to-Rail Input and output
- Supply range: +1.4V to +5.5V
- Specified up to +125°C
- MicroSIZE PACKAGES: SOT353(SC70-5), SOT23-5
