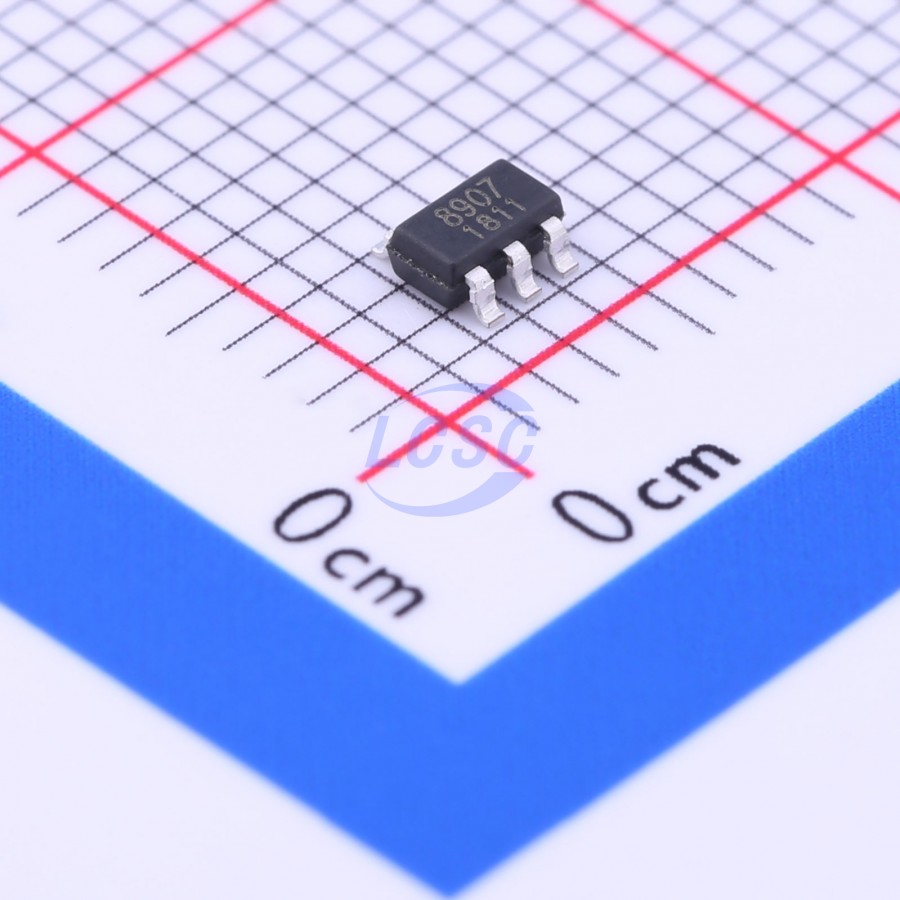

RS8907XF
1 400nA 5mV Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Comparators RoHS
Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8907XF
- Store part #
- C255493
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,510 in stock
#C255493
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.30 | ₹186.50 |
| 50+ | ₹26.46 | ₹1,323.00 |
| 150+ | ₹21.68 | ₹3,252.00 |
5 × ₹37.30
₹186.50
excl. GST
₹220.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8907XF
₹186.50 for 5 + GST
Specifications
- Number of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 13us
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Quiescent Current(Iq)
- 400nA
- Vos - Input Offset Voltage
- 5mV
- Maximum Power Supply Range (Vdd-Vss)
- 7V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The RS8907 offers a wide supply range, low quiescent current 400nA (TYP), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems. Featuring a push-pull output stage, the RS8907 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load. The devices are ideal for system monitoring, include tablets, portable medical, smart phones. The RS8907 is specified at the full temperature range of -40°C to +125°C under single power supplies of 1.4V to 5.5V.
Applications
- OVERVOLTAGE AND UNDERVOLTAGE DETECTION
- MULTIVIBRATORS
- OVERCURRENT DETECTION
- SYSTEM MONITORING BATTERY POWERED SYSTEM
Key features
- Low supply current 400nA (TYP) at VS = 1.4V
- Low input offset voltage: Vos(max) = 5mV
- Rail-to-Rail Input and output
- Supply range: +1.4V to +5.5V
- Specified up to ±125°C
- Micro SIZE PACKAGES: SOT353(SC70-5), SOT23-5
