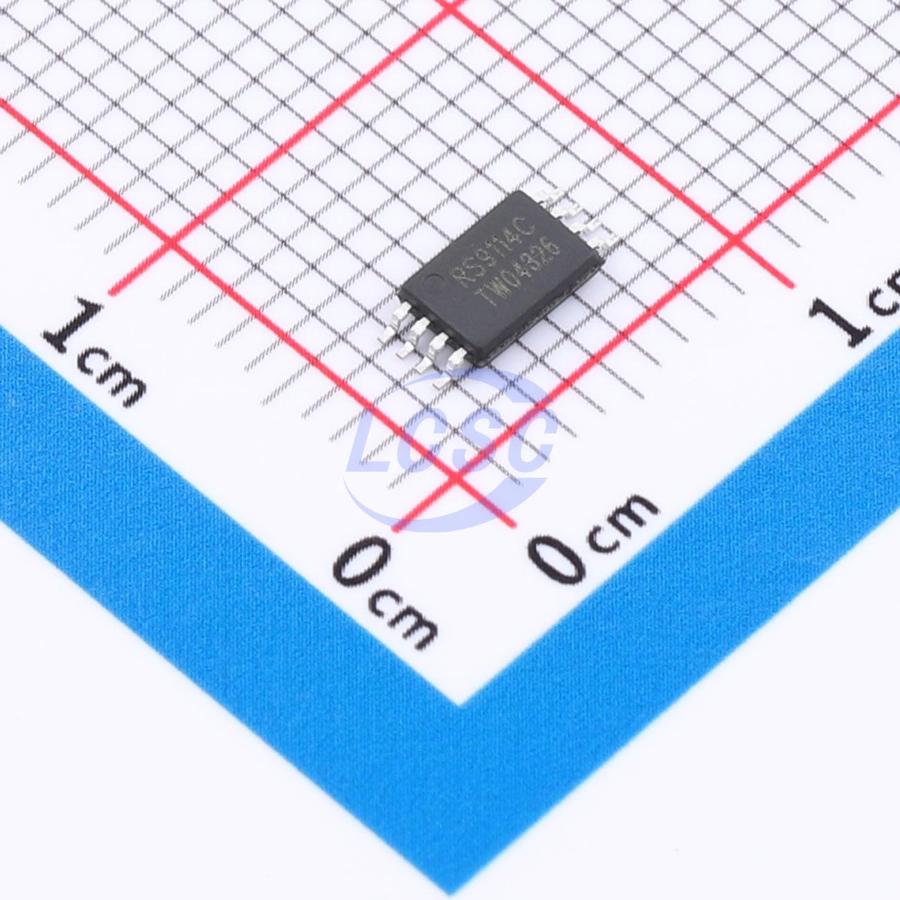

RUNICDatasheet (PDF)
RS9114CYQ
4 TSSOP-8 Clock Buffers, Drivers
TSSOP-8RoHSSold out at source
- Manufacturer
- RUNIC
- Manufacturer part #
- RS9114CYQ
- Store part #
- C42459694
- Package / case
- TSSOP-8
- Category
- Clock Buffers, Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,558 in stock
#C42459694
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.73 | ₹119.73 |
| 10+ | ₹104.49 | ₹1,044.90 |
| 30+ | ₹91.43 | ₹2,742.90 |
| 100+ | ₹76.19 | ₹7,619.00 |
1 × ₹119.73
₹119.73
excl. GST
₹141.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS9114CYQ
₹119.73 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3V~3.6V;2.3V~2.7V
- Features
- Multi-channel fan-out/isolation drive;Output enable/shutdown
- Number of Inputs
- 1
- Output Frequency(Max)
- 250MHz;180MHz
- Number of outputs
- 4
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Three different fan-out variations, 1:2 to 1:4, are available. All of the devices are pin-compatible to each other for easy handling. All family members share the same high performing characteristics such as low skew, and wide operating temperature range. The RS911xC supports an asynchronous output enable control (1G) which switches the outputs into a low state when 1G is low. The RS911xc family operates in a 2.5-V and 3.3-V environment and are characterized for operation from -40℃ to 85℃.
Applications
- General-Purpose Communication, Industrial, and Consumer Applications
Key features
- High-Performance 1:2, 1:3, 1:4 LVCMOS Clock Buffer Family
- Supply Voltage: 3.3 V or 2.5 V
- fmax = 250 MHz for 3.3 V
- fmax = 180 MHz for 2.5 V
- Operating Temperature Range: -40℃ to 85℃
- Available in TSSOP8 Package
