TECH PUBLICDatasheet (PDF)

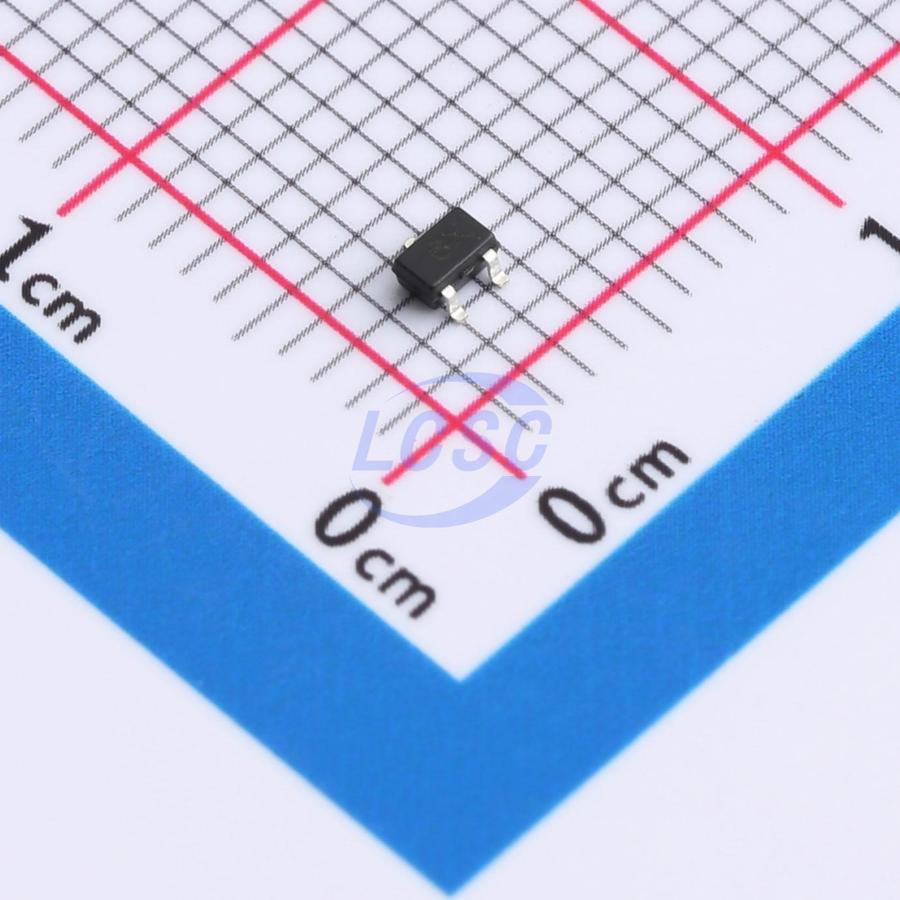

RSB27F2
40VC Clamp 3A@8/20us Ipp SOT-323
SOT-323RoHSActive
24VWM 40VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RSB27F2
- Store part #
- C42370514
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C42370514
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.17 | ₹51.70 |
| 100+ | ₹5.04 | ₹504.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 1,000+ | ₹4.88 | ₹4,880.00 |
10 × ₹5.17
₹51.70
excl. GST
₹61.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RSB27F2
₹51.70 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 32V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- CAN Bus Protection
- Automotive Appllcatrons
Key features
- Ultra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 3A (8/20μs)
- RoHS Compliant
