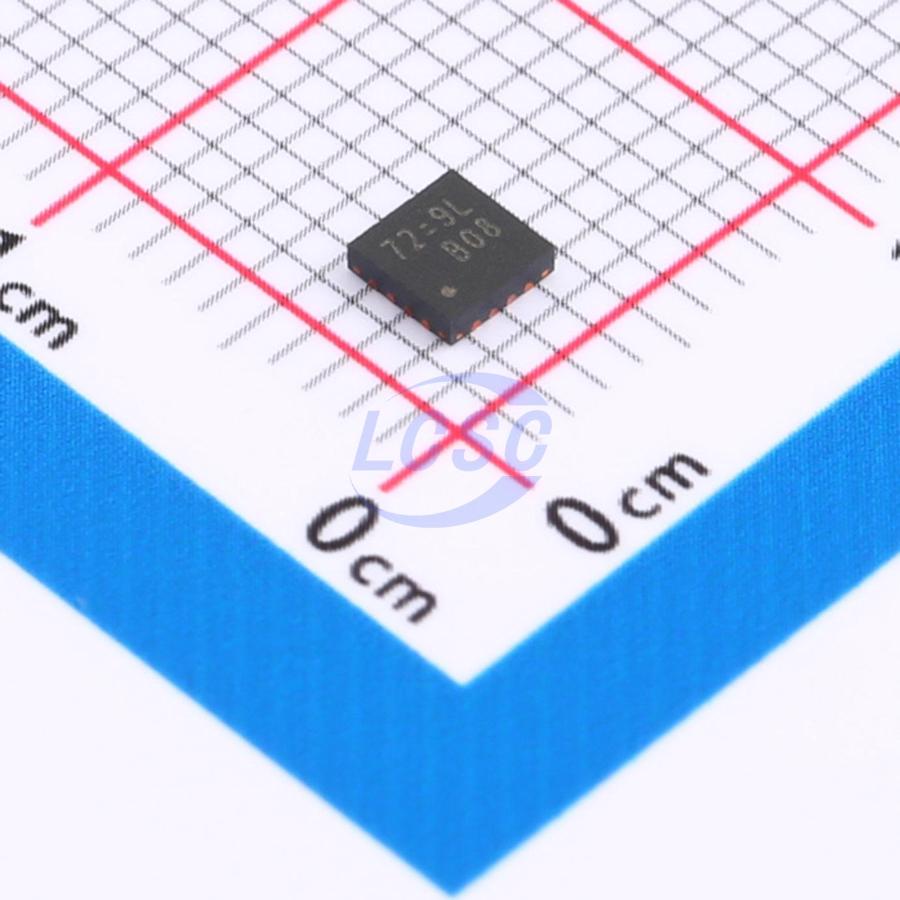

RT2101AGQW

The RT2101A is a high efficiency step-down converter and capable of delivering 3A output current over a wide input voltage range from 2.95V to 6V. The RT2101A provides accurate regulation for a variety of loads with ±2.5% accuracy. For reducing inductor size, it provides up to 2MHz switching frequency. The efficiency is maximized through the integrated 45mΩ MOSFETs and 550μA typical supply current. Under-voltage lockout voltage of the RT2101A is 2.7V, and it also provides external setting by a resistor network on the enable pin. The RT2101A provides protections such as inductor current limit under-voltage lockout and thermal shutdown. The over-temperature threshold is 145°C. The RT2101A is available in WQFN-16L 3×3 package.

Applications

• Low-Voltage, High-Density Power Systems
• Distributed Power Systems
• Point-of-Load Conversions

Key features

• AEC-Q100 Grade 2 Qualified
• Integrated 45mΩ MOSFETs
• Input Range: 2.95V to 6V
• Adjustable PWM Frequency: 700kHz to 2MHz
• Output Current: 3A
• 95% Efficiency
• Adjustable Soft-Start
• Power Good Indicator
• Enable Control
• Under-Voltage Lockout
• Current Limit
• Thermal Shutdown
