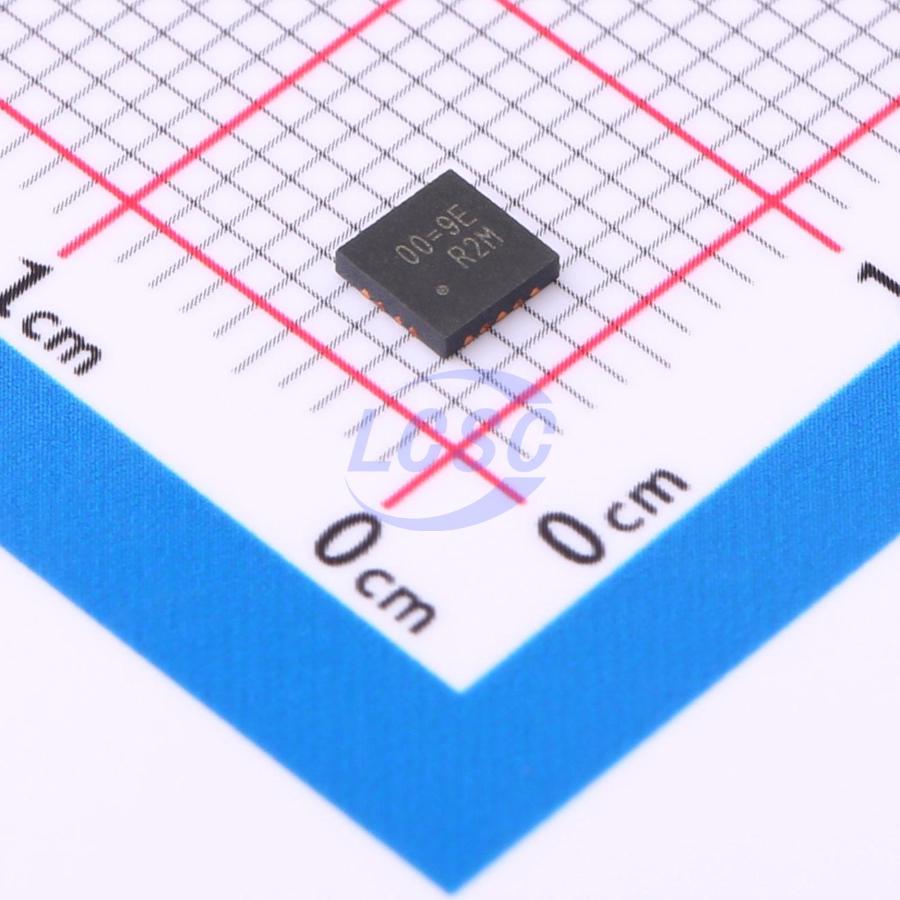

RT2856GQW

200kHz~1.6MHz Step-down type Adjustable 800mV~18V 6A WQFN-14-AL(3.5x3.5) Voltage Regulators - DC DC Switching Regulators RoHS

WQFN-14-AL(3.5x3.5)ROHS3 CompliantActive

High Efficiency 6A Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT2856GQW
Store part #: C3188073
Package / case: WQFN-14-AL(3.5x3.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,517 in stock

#C3188073

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹158.06	₹158.06
10+	₹132.70	₹1,327.00
30+	₹119.04	₹3,571.20
100+	₹103.21	₹10,321.00
500+	₹96.27	₹48,135.00
1,500+	₹93.23	₹1,39,845.00

Quantity (min 1)

1 × ₹158.06

₹158.06

excl. GST

₹186.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT2856GQW

₹158.06 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 200kHz~1.6MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Load disconnect;Frequency synchronization;External compensation;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~18V
Output Current: 6A
Quiescent Current: 600uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.072 g

Overview

The RT2856 is a high efficiency, monolithic synchronous step-down DC-DC converter that can deliver up to 6A output current from a 4.5V to 18V input supply. The RT2856 current-mode architecture with external compensation allows the transient response to be optimized over a wide range of loads and output capacitors. Cycle-by-cycle current limit provides protection against shorted outputs, and soft-start eliminates input current surge during startup. Fault condition protections include output under-voltage protection, output over-voltage protection, and overtemperature protection. The low current shutdown mode provides output disconnection, enabling easy power management in battery-powered systems.

Applications

High Performance Point of Load Regulation
Notebook Computers
High Density and Distributed Power Systems

Key features

Low RDS(ON) Power MOSFET Switches 26mΩ/19mΩ
Input Voltage Range: 4.5V to 18V
Adjustable Switching Frequency: 200kHz to 1.6MHz
Current-Mode Control
Synchronous to External Clock: 200kHz to 1.6MHz
Accurate Voltage Reference: 0.8V ±1%, Over -40°C to 85°C; 0.8V ±1.5%, Over -40°C to 150°C
Monotonic Start-Up into Pre-biased Outputs
Adjustable Soft-Start
Power Good Indicator
Under-Voltage and Over-Voltage Protection
Input Under-Voltage Lockout
RoHS Compliant and Halogen Free
