RICHTEKDatasheet (PDF)

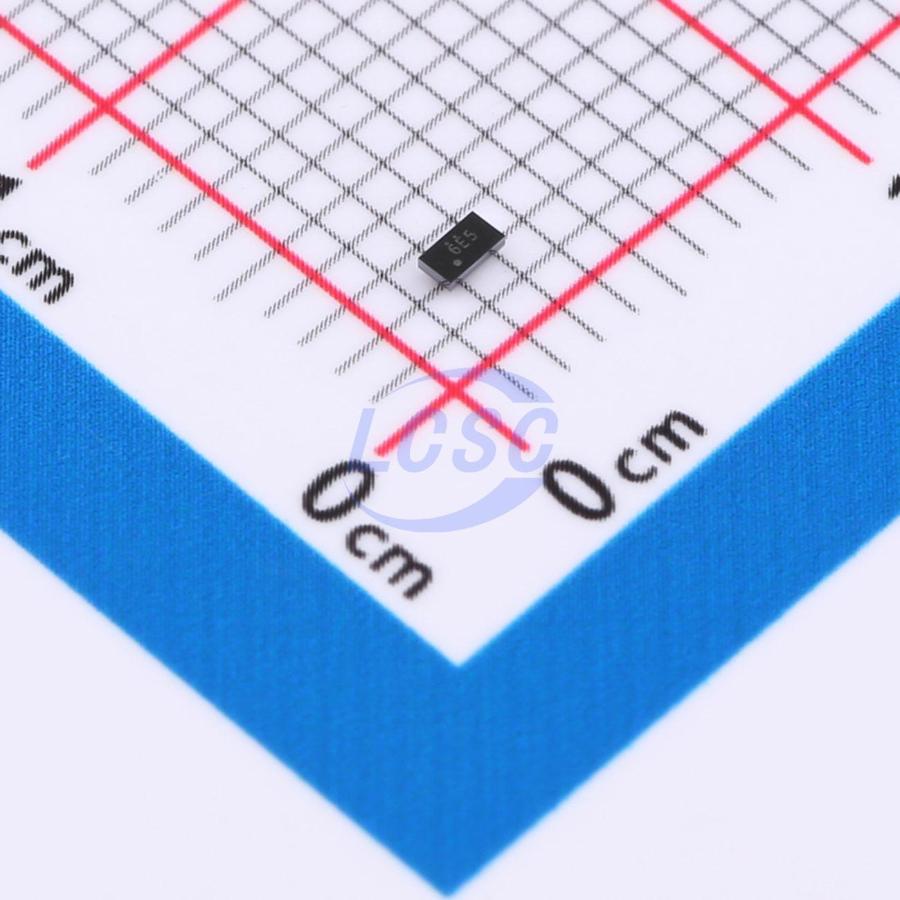

RT5707WSC
1.2MHz Step-down type Adjustable 600mA 1.2V~3.3V WLCSP-8(0.9x1.6) Voltage Regulators - DC DC Switching Regulators RoHS
WLCSP-8(0.9x1.6)ROHS3 CompliantActive
Ultra-Low Quiescent Current HCoT Buck Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT5707WSC
- Store part #
- C2972230
- Package / case
- WLCSP-8(0.9x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,947 in stock
#C2972230
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.65 | ₹59.65 |
| 10+ | ₹47.28 | ₹472.80 |
| 30+ | ₹42.08 | ₹1,262.40 |
| 100+ | ₹35.36 | ₹3,536.00 |
| 500+ | ₹31.88 | ₹15,940.00 |
| 1,000+ | ₹29.94 | ₹29,940.00 |
1 × ₹59.65
₹59.65
excl. GST
₹70.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT5707WSC
₹59.65 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Output discharge;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Output Voltage
- 1.2V~3.3V
- Quiescent Current
- 360nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
The RT5707/A is a high efficiency synchronous step-down converter featuring typ. 360nA quiescent current. It provides high efficiency at light load down to 10mA. Its input voltage range is from 2.2V to 5.5V. The RT5707 provides eight programmable output voltage 1.2V to 3.3V while delivering output current up to 600mA, peak to 1A. The RT5707A provides eight programmable output voltage 0.7V to 3.1V while delivering output current up to 400mA, peak to 0.5A. The Hysteretic Constant-On-Time (HCOT) operation with internal compensation allow the transient response to be optimized over a wide range of loads and output capacitors. The RT5707/A is a available in WL-CSP-8B 0.9x1.6 (BSC) package.
Applications
- Hand-Held Devices
- Portable Information
- Battery Powered Equipment
- Wearable Devices
- Internet of Things
- Smart Watch
Key features
- Input Voltage Range: 2.2V to 5.5V
- Programmable Output Voltage 8-Level
- RT5707 1.2V to 3.3V
- RT5707A 0.7V to 3.1V
- Typ. 360nA Quiescent Current
- PSM Operation
- Up to 94% Efficiency
- Internal Compensation
- Output Voltage Discharge
- Over-Current Protection
- Over-Temperature Protection
- Output Current
- RT5707 600mA, Peak to 1A
- RT5707A 400mA, Peak to 0.5A
- Automatic Transition to 100% Duty Cycle Operation
