RICHTEK

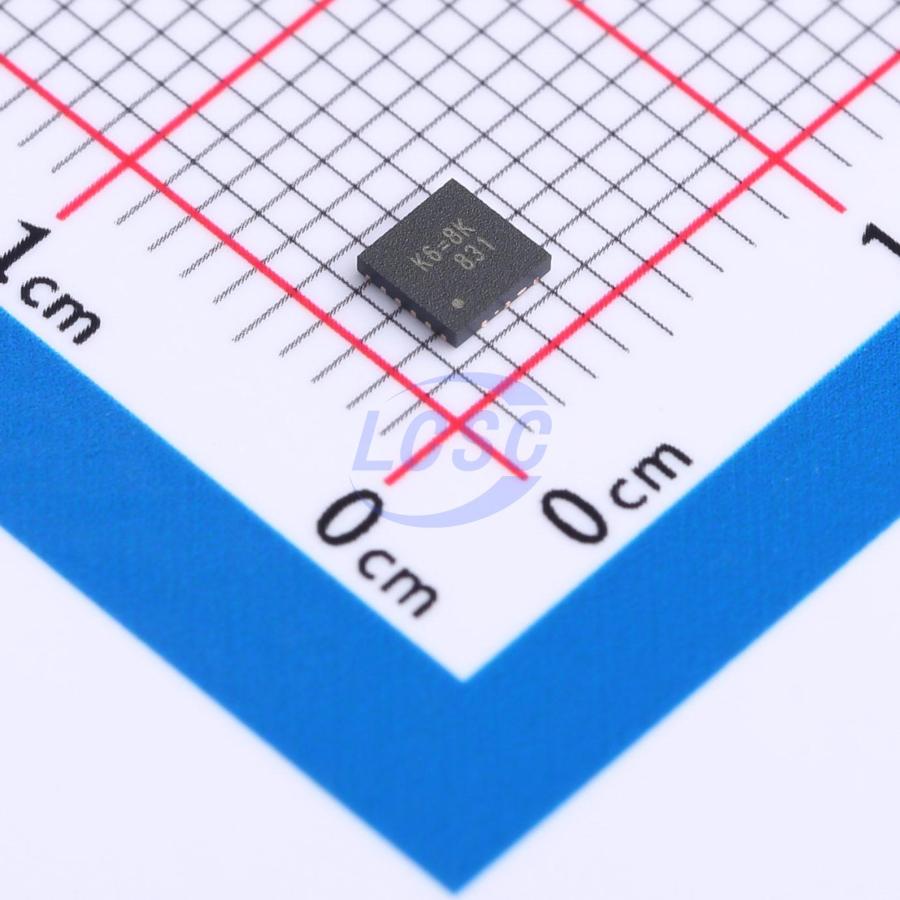

RT6228AGQUF

500kHz Step-down type Adjustable 600mV~5.1V 8A UQFN-12HL(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

UQFN-12HL(3x3)ROHS3 CompliantActive

8A, 23V Synchronous Step-Down Converter with 3.3V/5V LDO

Manufacturer: RICHTEK
Manufacturer part #: RT6228AGQUF
Store part #: C2976596
Package / case: UQFN-12HL(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,449 in stock

#C2976596

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
1+	₹72.90	₹72.90
10+	₹64.19	₹641.90
30+	₹59.84	₹1,795.20
100+	₹55.49	₹5,549.00
500+	₹52.88	₹26,440.00
1,500+	₹51.57	₹77,355.00

Quantity (min 1)

1 × ₹72.90

₹72.90

excl. GST

₹86.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT6228AGQUF

₹72.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 500kHz
Number of Outputs: 1
Function: Step-down type
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Protection latch;Output discharge;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~23V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.1V
Output Current: 8A
Quiescent Current: 100uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

The RT6228A/B/C is an advanced constant on-time (ACOT®) mode synchronous buck converter. The main control loop of the RT6228A/B/C using an advanced constant on-time (ACOT®) mode control which provides a very fast transient response. The RT6228A/B operates from 4.5V to 23V input voltage and the RT6228C operates from 5.1V to 23V. For the RT6228A, the output voltage can be programmed between 0.6V to 5.1V.

Applications

Industrial and Commercial Low Power Systems
Computer Peripherals
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key features

4.5V to 23V (RT6228A/B) and 5.1V to 23V (RT6228C) Input Voltage Range 8A Output Current
ACOT® Mode Performs Fast Transient Response
ACOT® Architecture to Enable All MLCC Output Capacitor Usage
Fixed 750kHz (RT6228C) and 500kHz (RT6228A/B) Switching Frequency
High Efficient Internal Power MOSFET Switch 20mΩ (High-Side) and 10mΩ (Low-Side)
Adjustable Output Voltage from 0.6V to 5.1V (RT6228A)
Fixed 3.3V (RT6228C) LDO Output Supplies 100mA
Pre-biased Soft-Start
Cycle-by-Cycle Over-Current Protection
Input Under-Voltage Lockout
Thermal Shutdown Protection
Output Over-/Under-Voltage Protection
Ultrasonic Mode (USM)
300kHz CLK for External Charge Bump
