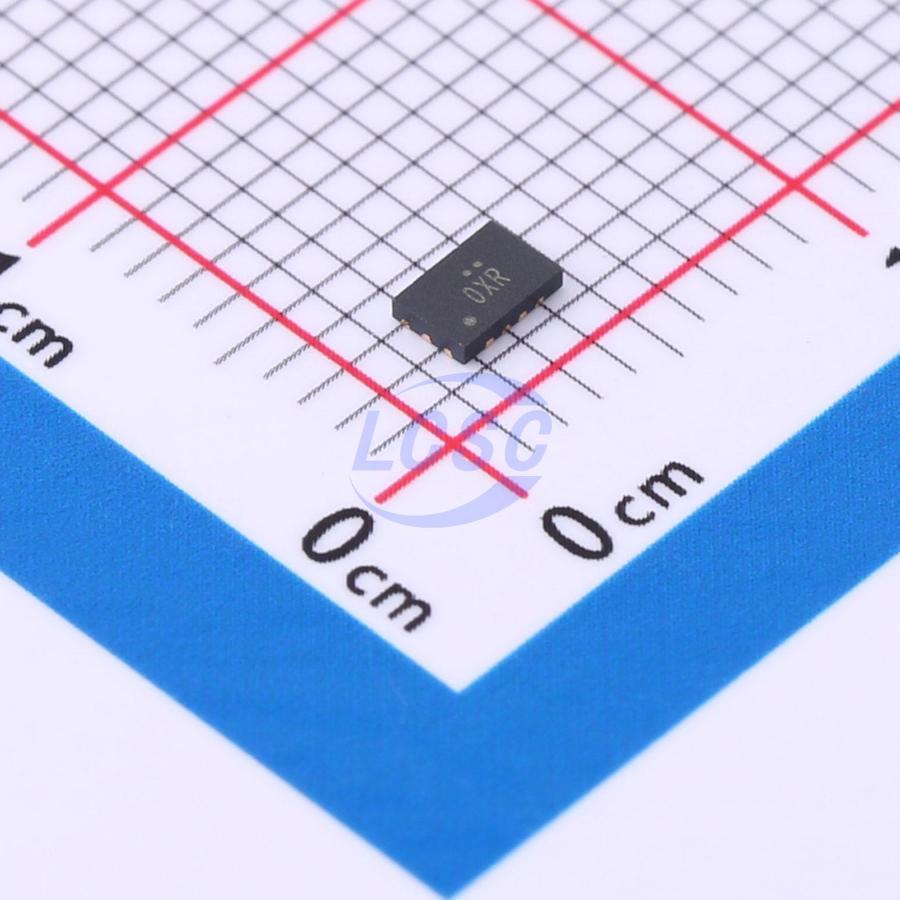

RT6236BHGQUF

The RT6236A/B is a high-performance 650kHz, 6A stepdown regulator with internal power switches and synchronous rectifiers. It features quick transient response using its Advanced Constant On-Time (ACOTTM) control architecture that provides stable operation with small ceramic output capacitors and without complicated external compensation, among other benefits. The input voltage range is from 4.5V to 18V and the output is adjustable from 0.7V to 8V. The proprietary ACOTTM control improves upon other fast response constant on-time architectures, achieving nearly constant switching frequency over line, load, and output voltage ranges. Since there is no internal clock, response to transients is nearly instantaneous and inductor current can ramp quickly to maintain output regulation without large bulk output capacitance. The RT6236A/B is stable with and optimized for ceramic output capacitors. With internal 51mΩ switches and 18mΩ synchronous rectifiers, the RT6236A/B displays excellent efficiency and good behavior across a range of applications, especially for low output voltages and low duty cycles. Cycle-by-cycle current limit provides protection against shorted outputs, input under-voltage lock-out, externally-adjustable soft-start, output under- and over-voltage protection, and thermal shutdown provide safe and smooth operation in all operating conditions. The RT6236A/B is available in the UQFN-13JL 2x3 (FC) package, with exposed thermal pad.

Applications

• Industrial and Commercial Low Power Systems
• Computer Peripherals
• LCD Monitors and TVs
• Green Electronics/Appliances
• Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key features

• Fast Transient Response
• Advanced Constant On-Time (ACOTTM) Control
• 4.5V to 18V Input Voltage Range
• Adjustable Output Voltage from 0.7V to 8V
• 6A Output Current
• 51mΩ Internal High-Side N-MOSFET and 18mΩ Internal Low-Side N-MOSFET
• Steady 650kHz Switching Frequency
• Up to ±95% Efficiency
• Optimized for All Ceramic Capacitors
• Externally-Adjustable, Pre-biased Compatible SoftStart
• Cycle-by-Cycle Current Limit
• Input Under-Voltage Lockout
• Output Over- and Under-Voltage Protection
• Power Good Output
• Thermal Shutdown
