RICHTEKDatasheet (PDF)

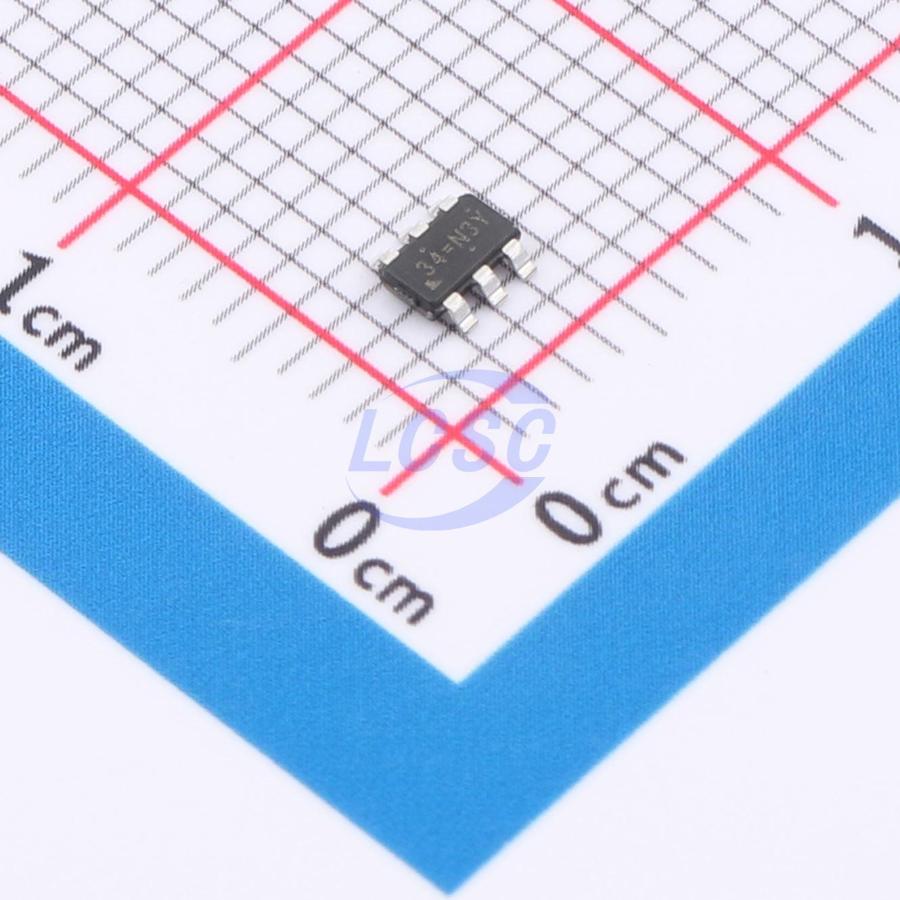

RT6252AHGJ6F
580kHz Step-down type Adjustable 765mV~7V 2A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS3 CompliantActive
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT6252AHGJ6F
- Store part #
- C6792505
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,470 in stock
#C6792505
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.56 | ₹117.80 |
| 50+ | ₹18.63 | ₹931.50 |
| 150+ | ₹16.51 | ₹2,476.50 |
| 500+ | ₹13.87 | ₹6,935.00 |
| 3,000+ | ₹12.70 | ₹38,100.00 |
| 6,000+ | ₹11.99 | ₹71,940.00 |
5 × ₹23.56
₹117.80
excl. GST
₹139.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT6252AHGJ6F
₹117.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 580kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 765mV~7V
- Output Current
- 2A
- Quiescent Current
- 280uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The RT6252A/B is a simple, easy-to-use, 2A synchronous step-down DC-DC converter with an input supply voltage range of 4.5V to 17V. The device possesses an accurate reference voltage and integrates low RDS(ON) power MOSFETs to achieve high efficiency. The RT6252A/B adopts Advanced Constant On-Time (ACOT®) control architecture to provide an ultrafast transient response with few external components and to operate in nearly constant switching frequency over the line, load, and output voltage range. The RT6252A operates in automatic PSM that maintains high efficiency during light load operation. The RT6252B operates in Forced PWM that helps meet tight voltage regulation accuracy requirements. The RT6252A/B senses both FETs current for a robust over-current protection (OCP). The device features cycle-by-cycle current limit protection to prevent the device from the catastrophic damage in output short circuit, over-current or inductor saturation conditions. A built-in soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-voltage protection, and over-temperature protection (OTP) to provide safe and smooth operation in all operating conditions.
Applications
- Set-Top Boxes
- LCD TVs
- Home Networking Devices
- Surveillance
- General Purpose
Key features
- 2A Converter Integrated 140mΩ and 84mΩ FETs
- Input Supply Voltage Range: 4.5V to 17V
- Output Voltage Range: 0.765V to 7V
- Advanced Constant On-Time (ACOT®) Control
- Ultrafast Transient Response
- Optimized for Low-ESR Ceramic Output Capacitors
- High Accuracy Feedback Reference Voltage: Typ. ±1%
- Optional for Operation Modes:
- Automatically Power Saving Mode (PSM) (RT6252A)
- Forced PWM Mode (RT6252B)
- Fixed Switching Frequency: 580kHz
- Enable Control and Internally Fixed Soft-Start
- Safe Start-Up from Pre-biased Output
- Input Under-Voltage Lockout (UVLO)
- Output Under-Voltage Protection (UVP) with Hiccup Mode
- High- /Low-side MOSFET OCP and OTP Function
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT6252BHGJ6F#C2976604RICHTEK · TSOT-23-6 | RICHTEK | TSOT-23-6 | 15,245 | ₹17.07 · 15,245 in stock | View |
 | RT6253BHGJ6F#C2976605RICHTEK · TSOT-23-6 | RICHTEK | TSOT-23-6 | 34,755 | ₹27.78 · 34,755 in stock | View |
 | RT6253AHGJ6F#C2988423RICHTEK · TSOT-23-6 | RICHTEK | TSOT-23-6 | 923 | ₹34.66 · 923 in stock | View |
 | TPS562208DDCT#C544942TI · TSOT-23-6 | TI | TSOT-23-6 | 10 | ₹29.67 · 10 in stock | View |
 | TPS562201DDCR#C90061TI · TSOT-23-6 | TI | TSOT-23-6 | 3,08,830 | ₹7.83 · 3,08,830 in stock | View |
