RICHTEK

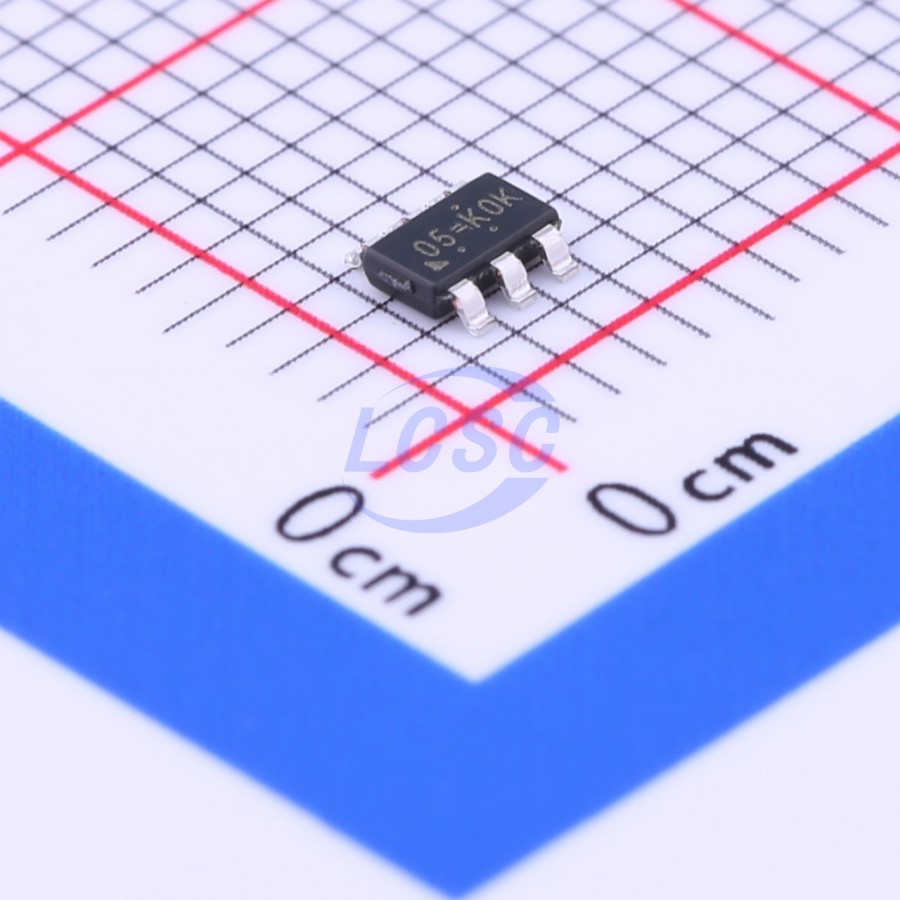

RT7295CGJ6F

500kHz Step-down type Adjustable 600mV~8V 3.5A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23-6ROHS3 CompliantActive

3.5A, 18V, 500kHz Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT7295CGJ6F
Store part #: C250410
Package / case: TSOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,502 in stock

#C250410

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹57.19	₹57.19
10+	₹45.58	₹455.80
30+	₹40.63	₹1,218.90
100+	₹34.40	₹3,440.00
500+	₹27.74	₹13,870.00
1,000+	₹26.02	₹26,020.00

Quantity (min 1)

1 × ₹57.19

₹57.19

excl. GST

₹67.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT7295CGJ6F

₹57.19 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.3V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~8V
Output Current: 3.5A
Quiescent Current: 500uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.036 g

Overview

The RT7295C is a synchronous step-down converter with Advanced Constant On-Time (ACOTTM) mode control. The ACOTTM provides a very fast transient response with few external components. The low impedance internal MOSFET supports high efficiency operation with wide input voltage range from 4.3V to 18V. The proprietary circuit of the RT7295C enables to support all ceramic capacitors. The output voltage can be adjusted between 0.6V and 8V.

Applications

Industrial and Commercial Low Power Systems
Computer Peripherals
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key features

4.3V to 18V Input Voltage Range
3.5A Output Current
Advanced Constant On-Time Control
Fast Transient Response
Support All Ceramic Capacitors
Up to 95% Efficiency
500kHz Switching Frequency
Adjustable Output Voltage from 0.6V to 8V
Cycle-by-Cycle Current Limit
Input Under-Voltage Lockout
Hiccup Mode Under-Voltage Protection
Thermal Shutdown
RoHS Compliant and Halogen Free

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
RT7295AGJ6F#C130800RICHTEK · SOT-23-6	RICHTEK	SOT-23-6	766	₹56.28 · 766 in stock	View
LP6451B6F#C42460086LOWPOWER · SOT-23-6	LOWPOWER	SOT-23-6	680	₹18.35 · 680 in stock	View
LP6451AB6F#C42460079LOWPOWER · SOT-23-6	LOWPOWER	SOT-23-6	635	₹13.81 · 635 in stock	View
TPS563240DDCR#C1850333TI · TSOT-23-6	TI	TSOT-23-6	5,480	₹100.79 · 5,480 in stock	View
TPS563240DDCT#C2071607TI · TSOT-23-6	TI	TSOT-23-6	133	₹182.06 · 133 in stock	View
