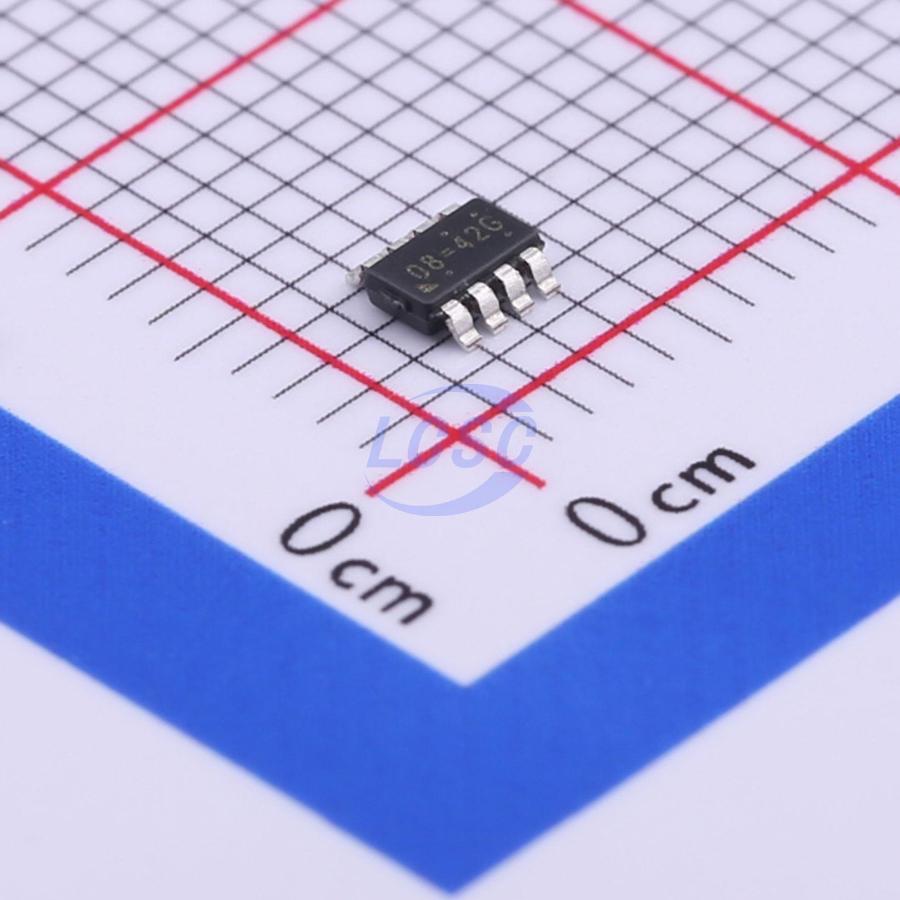

RT7296FGJ8F
500kHz Step-down type Adjustable 807mV~16.15V 3A TSOT-23-8 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-8ROHS3 CompliantActive
3A, 17V Current Mode Synchronous Step-Down Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT7296FGJ8F
- Store part #
- C425180
- Package / case
- TSOT-23-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,839 in stock
#C425180
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.84 | ₹60.84 |
| 10+ | ₹48.69 | ₹486.90 |
| 30+ | ₹43.46 | ₹1,303.80 |
| 100+ | ₹36.95 | ₹3,695.00 |
| 500+ | ₹27.17 | ₹13,585.00 |
| 1,000+ | ₹25.43 | ₹25,430.00 |
1 × ₹60.84
₹60.84
excl. GST
₹71.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT7296FGJ8F
₹60.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Frequency synchronization;Light load efficient mode;Operating status indication;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 807mV~16.15V
- Output Current
- 3A
- Quiescent Current
- 800uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The RT7296F is a high-efficiency, 3A current mode synchronous step-down DC/DC converter with a wide input voltage range from 4.5V to 17V. The device integrates 80mΩ high-side and 30mΩ low-side MOSFETs to achieve high efficiency conversion. The current mode control architecture supports fast transient response and internal compensation. A cycle-by-cycle current limit function provides protection against shorted output. The RT7296F provides complete protection functions such as input under-voltage lockout, output under-voltage protection, over-current protection, and thermal shutdown. The PWM frequency is adjustable by the EN/SYNC pin. The RT7296F is available in the TSOT-23-8 (FC) package.
Applications
- Industrial and Commercial Low Power Systems
- Computer Peripherals
- LCD Monitors and TVs
- Set-top Boxes
Key features
- 4.5V to 17V Input Voltage Range
- 3A Output Current
- Internal N-Channel MOSFETs
- Current Mode Control
- Fixed Switching Frequency: 500kHz
- Synchronous to External Clock: 200kHz to 2MHz
- Cycle-by-Cycle Current Limit
- Internal Soft-Start Function
- Power Save mode at light load
- Power Good Indicator
- Input Under-Voltage Lockout
- Output Under-Voltage Protection
- Thermal Shutdown
