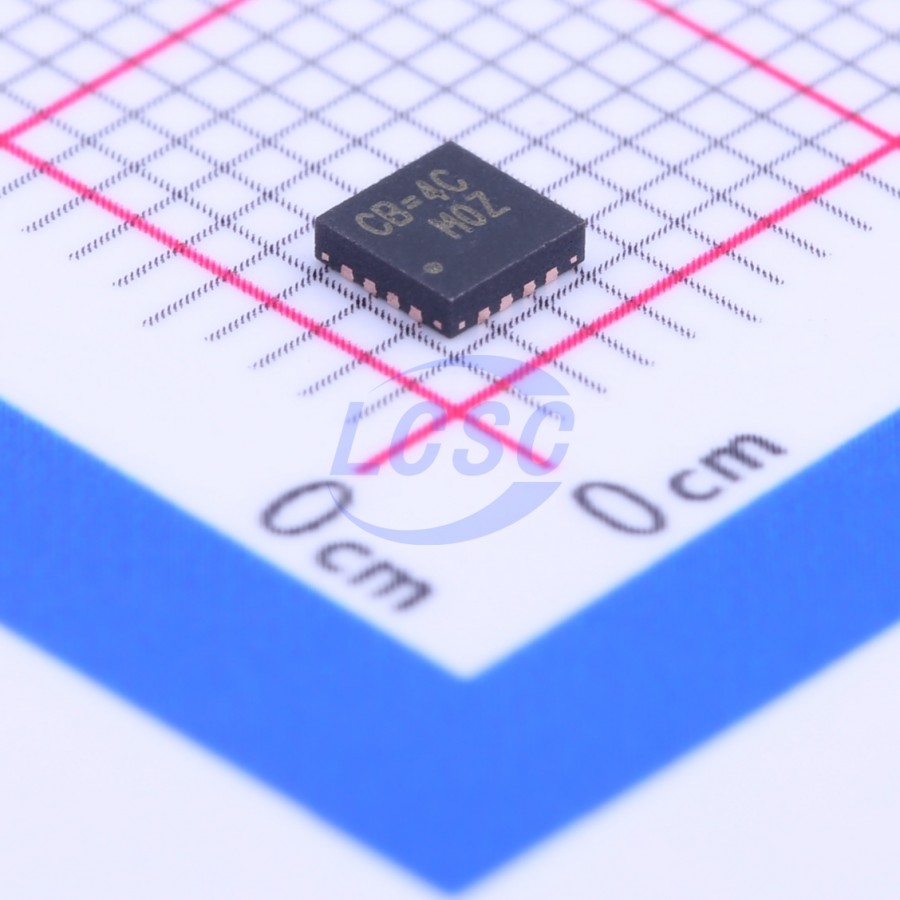

RT8058GQW

The RT8058 is a current mode PWM step-down converter. The chip is ideal for fixed frequency and low ripple applications over full range of load conditions. Its input voltage range is from 2.6V to 5.5V with a constant 1MHz switching frequency that allows it to adopt tiny, low cost capacitors and inductors with 2mm or less in height making it ideal for single-cell Li-lon/polymer battery applications. The low on resistance internal MOSFET can achieve high efficiency without the need of external schottky diodes in wide operating ranges and the output voltage is adjustable from 0.6V to 5V that can provide up to 2A load current. The RT8058 operates at 100% duty cycle for low dropout operation that extends battery life in portable devices. The RT8058 is available in a WQFN-16L 3x3 package. The RT8058 is a 1MHz constant frequency, current mode PWM step-down converter. High switching frequency and high efficiency make it suitable for applications where high efficiency and small size are critical. Frequency compensation is done internally. The output voltages are set by external dividers returned to the FB pin. The output voltage can be set from 0.8V to 5V.

Applications

• Portable Instruments
• Microprocessors and DSP Core supplies
• Cellular Telephones
• Wireless and DSL Modems
• Digital Cameras
• PC Cards

Key features

• 0.6V Reference Allows Low Output Voltage
• Low Dropout Operation : 100% Duty Cycle
• 2A Load Current
• <2μA Shutdown Current
• Up to ±95% Efficiency
• No Schottky Diode Required
• 1MHZ Constant Switching Frequency
• Low RDS(ON) Internal Switches
• Internally Compensated
• Internal Soft-Start
• Over temperature Protection
• Short Circuit Protection
• Small 16-Lead WQFN Package
• RoHS Compliant and 100% Lead (Pb)-Free
