RICHTEKDatasheet (PDF)

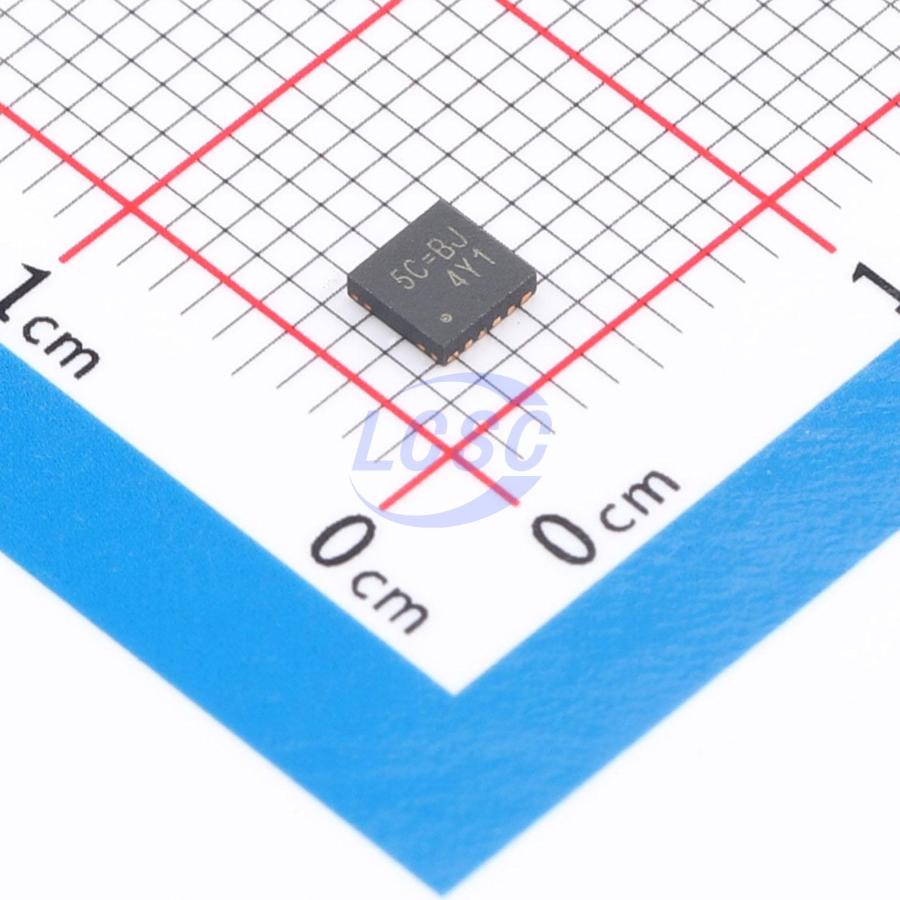

RT8073GQW
300kHz~2MHz Step-down type Adjustable 6A WDFN-12(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
WDFN-12(3x3)ROHS3 CompliantActive
6A, 2MHz, High Efficiency Synchronous Step-Down Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8073GQW
- Store part #
- C294548
- Package / case
- WDFN-12(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C294548
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.48 | ₹58.48 |
| 10+ | ₹52.15 | ₹521.50 |
| 30+ | ₹48.98 | ₹1,469.40 |
| 100+ | ₹45.82 | ₹4,582.00 |
| 500+ | ₹43.91 | ₹21,955.00 |
| 1,500+ | ₹43.08 | ₹64,620.00 |
1 × ₹58.48
₹58.48
excl. GST
₹69.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RT8073GQW
₹58.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 300kHz~2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.9V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 6A
- Quiescent Current
- 250uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- C294548
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The RT8073 is a high efficiency PWM step-down converter and capable of delivering 6A output current over a wide input voltage range from 2.9V to 5.5V. The RT8073 provides accurate regulation for a variety of loads with an ±1% reference voltage at room temperature. For reducing inductor size, it provides up to 2MHz switching frequency. The efficiency is maximized through the integrated 50mΩ for high side, 35mΩ for low side MOSFETs and 250μA typical supply current. The RT8073 features over current protection, frequency fold back function in shorted circuit, hiccup mode under voltage protection and over temperature protection. The RT8073 is available in SOP-8 (Exposed Pad) and WDFN-12L 3x3 packages.
Applications
- Low Voltage, High Density Power Systems
- Distributed Power Systems
- Point-of-Load Conversions
Key features
- Integrated 50mΩ and 35mΩ MOSFETs
- 6A Output Current
- High Efficiency Up to 95%
- 2.9V to 5.5V Input Range
- Adjustable PWM Frequency: 300kHz to 2MHz
- 0.8V±1% Reference Voltage
- Adjustable External Soft-Start
- Power Good Indicator (WDFN-12L 3x3 only)
- Over Current Protection
- Under Voltage Protection
- Over Temperature Protection
- SOP-8 (Exposed Pad) and 12-Lead WDFN Packages
- RoHS Compliant and Halogen Free
