RICHTEK

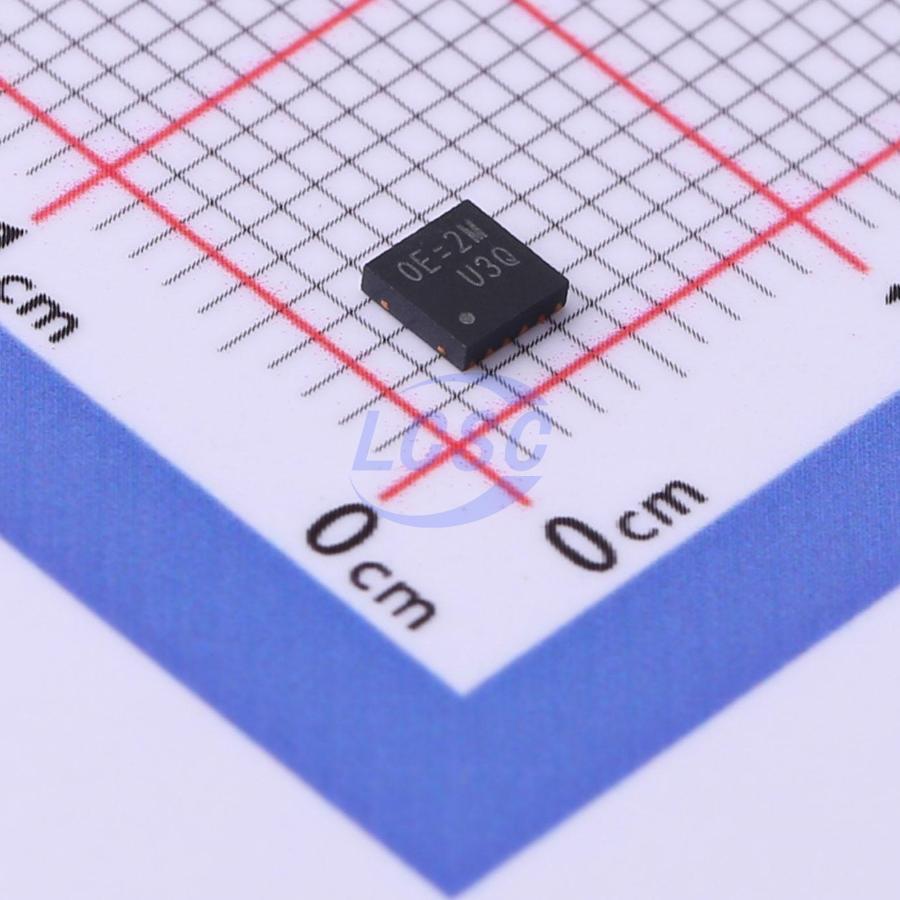

RT8082GQW

2MHz Step-down type Adjustable 1V~5V 3A WDFN-12-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

WDFN-12-EP(3x3)ROHS3 CompliantActive

3A, 2MHz, Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT8082GQW
Store part #: C3019176
Package / case: WDFN-12-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,600 in stock

#C3019176

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹128.15	₹128.15
10+	₹106.03	₹1,060.30
30+	₹94.96	₹2,848.80
100+	₹84.13	₹8,413.00
500+	₹77.62	₹38,810.00
1,500+	₹74.38	₹1,11,570.00

Quantity (min 1)

1 × ₹128.15

₹128.15

excl. GST

₹151.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT8082GQW

₹128.15 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2MHz
Number of Outputs: 1
Function: Step-down type
Features: Hiccup current limiting;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 1V~5V
Output Current: 3A
Quiescent Current: 570uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The RT8082 is a high efficiency synchronous, step-down DC/DC converter. Its input voltage range is from 2.7V to 5.5V and provides an adjustable regulated output voltage from 1V to 5V while delivering up to 3A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The switching ripple voltage is easily smoothed-out by small package filtering elements due to a fixed operating frequency of 2MHz. The 100% duty cycle provides low dropout operation extending battery input range in portable systems. Current mode operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The RT8082 operates in forced continuous PWM Mode, which minimizes ripple voltage and reduces the noise and RF interference.
