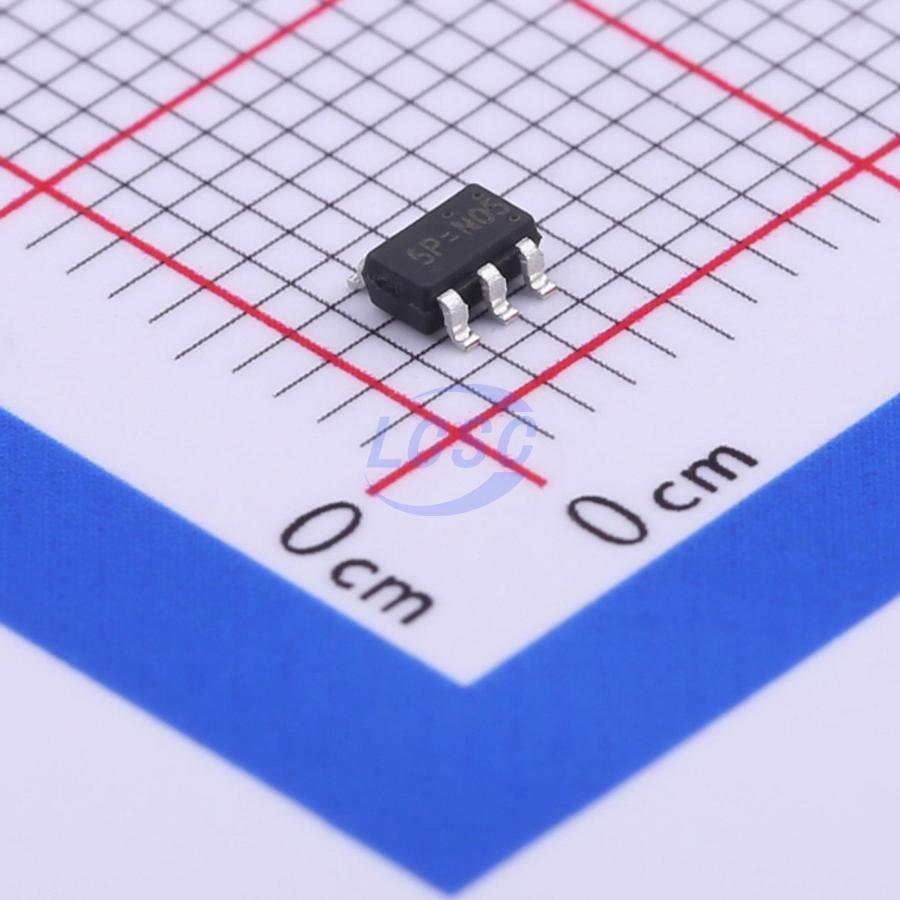

RT8097CHGB
1MHz Step-down type Adjustable 2A 600mV~3.4V SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
2A, 1MHz, 6V CMCOT Synchronous Step-Down Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8097CHGB
- Store part #
- C425768
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,685 in stock
#C425768
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.03 | ₹140.15 |
| 50+ | ₹22.62 | ₹1,131.00 |
| 150+ | ₹20.31 | ₹3,046.50 |
| 500+ | ₹17.41 | ₹8,705.00 |
| 3,000+ | ₹12.62 | ₹37,860.00 |
| 6,000+ | ₹11.84 | ₹71,040.00 |
5 × ₹28.03
₹140.15
excl. GST
₹165.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT8097CHGB
₹140.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Protection latch;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 600mV~3.4V
- Quiescent Current
- 22uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The RT8097C is a high efficiency synchronous stepdown DC-DC converter. Its input voltage range is from 2.7V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 2A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The Current Mode Constant-On-time (CMCOT) operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The RT8097C is available in the SOT-23- 5/6 package.
Applications
- STB, Cable Modem, & xDSL Platforms
- LCD TV Power Supply & Metering Platforms
- General Purpose Point of Load (POL)
Key features
- Efficiency Up to 95%
- RDS(ON) 100mΩ HS / 70mΩ LS
- VIN Range 2.7V to 6V
- VREF 0.6V with ±1.2% Accuracy at 25°C
- CMCOT™ Control Loop Design for Best Transient Response, Robust Loop Stability with Low-ESR (MLCC) COUT
- Soft-Start 1.2ms; PGOOD Function in SOT-23-6
- Power Saving at Light Load
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT8097ARTZ#C5158912HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 205 | ₹22.20 · 205 in stock | View |
 | RT8097AHGB#C3031686RICHTEK · SOT-23-5 | RICHTEK | SOT-23-5 | 37 | ₹45.86 · 37 in stock | View |
