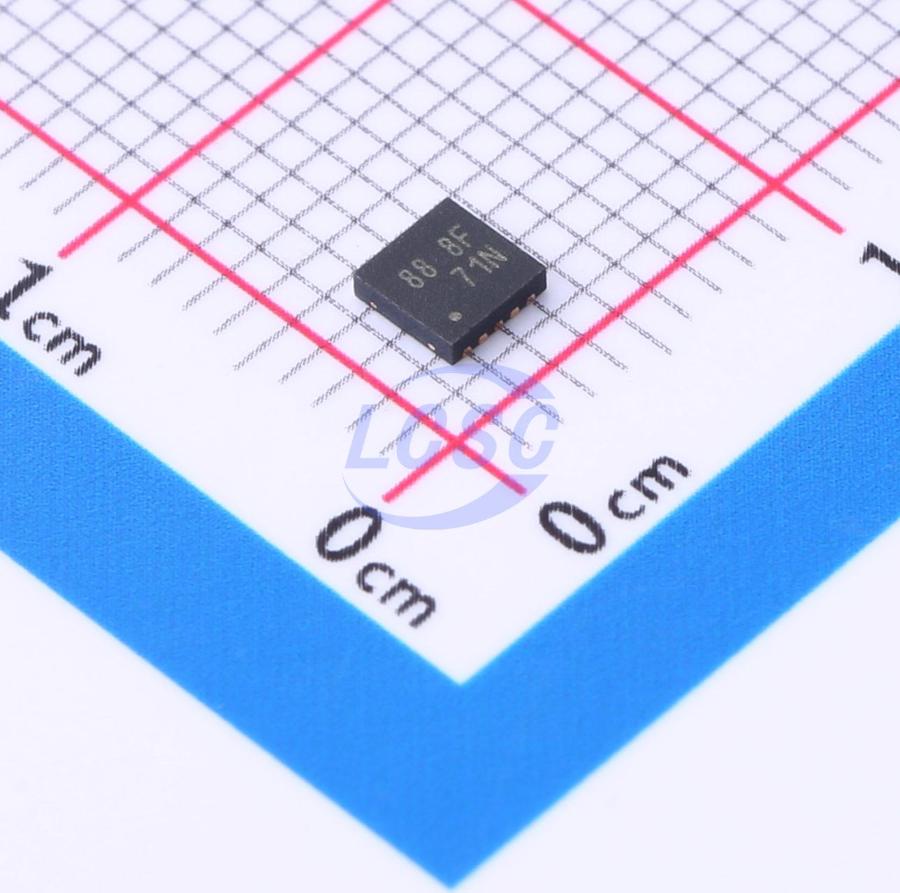

RT8237EZQW
1 Adjustable Step-down type 700mV~3.3V WDFN-10-EP(3x3) DC DC Switching Controllers RoHS
High Efficiency Single Synchronous Buck PWM Controller
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8237EZQW
- Store part #
- C347517
- Package / case
- WDFN-10-EP(3x3)
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,945 in stock
#C347517
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.22 | ₹156.10 |
| 50+ | ₹24.65 | ₹1,232.50 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.33 | ₹9,165.00 |
| 2,500+ | ₹15.28 | ₹38,200.00 |
| 5,000+ | ₹14.34 | ₹71,700.00 |
5 × ₹31.22
₹156.10
excl. GST
₹184.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT8237EZQW
₹156.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Synchronous Rectifier
- Yes
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode;Operating status indication;Overcurrent Protection;Protection latch
- Number of Channels
- 1
- Topology
- Buck
- Operating Voltage
- 2.7V~26V
- Frequency - Switching
- 290kHz;340kHz;380kHz;430kHz
- Switch tube (built-in/external)
- External
- Output Type
- Adjustable
- Function
- Step-down type
- Output Voltage
- 700mV~3.3V
- Quiescent Current
- 500uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The RT8237E PWM controller provides high efficiency, excellent transient response, and high DC output accuracy needed for stepping down high voltage batteries to generate low voltage CPU core, I/O, and chipset RAM supplies in notebook computers. The constant on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns “instant-on” response to load transients while maintaining a relatively constant switching frequency. The RT8237E achieves high efficiency at a reduced cost by eliminating the current sense resistor found in traditional current mode PWMs. Efficiency is further enhanced by its ability to drive very large synchronous rectifier MOSFETs and enter diode emulation mode at light load condition. The Buck conversion allows this device to directly step down high voltage batteries at the highest possible efficiency. The pre-set frequency selections minimize design effort required for new designs. The RT8237E is intended for CPU core, chipset, DRAM, or other low voltage supplies as low as 0.7V. The RT8237E is available in the WDFN-10L 3x3 package.
Applications
- Notebook Computers
- CPU Core Supply
- Chipset/RAM Supply as Low as 0.7V
- Generic DC-DC Power Regulator
Key features
- Wide Input Voltage Range : 2.7V to 26V
- Output Voltage Range : 0.7V to 3.3V
- Built-In 0.5% 0.7V Reference Voltage
- Quick Load-Step Response within 100ns
- 4700ppm/°C Current Source for Current Limit RDS(ON)
- Adjustable Current Limit with Low-Side MOSFET
- 4 Selectable Frequency Setting
- Soft-Start Control
- Drives Large Synchronous-Rectifier FETs
- Integrated Boot Switch
- Built-In OVP/OCP/UVP
- Thermal Shutdown
- Power Good Indicator
- RoHS Compliant and Halogen Free
