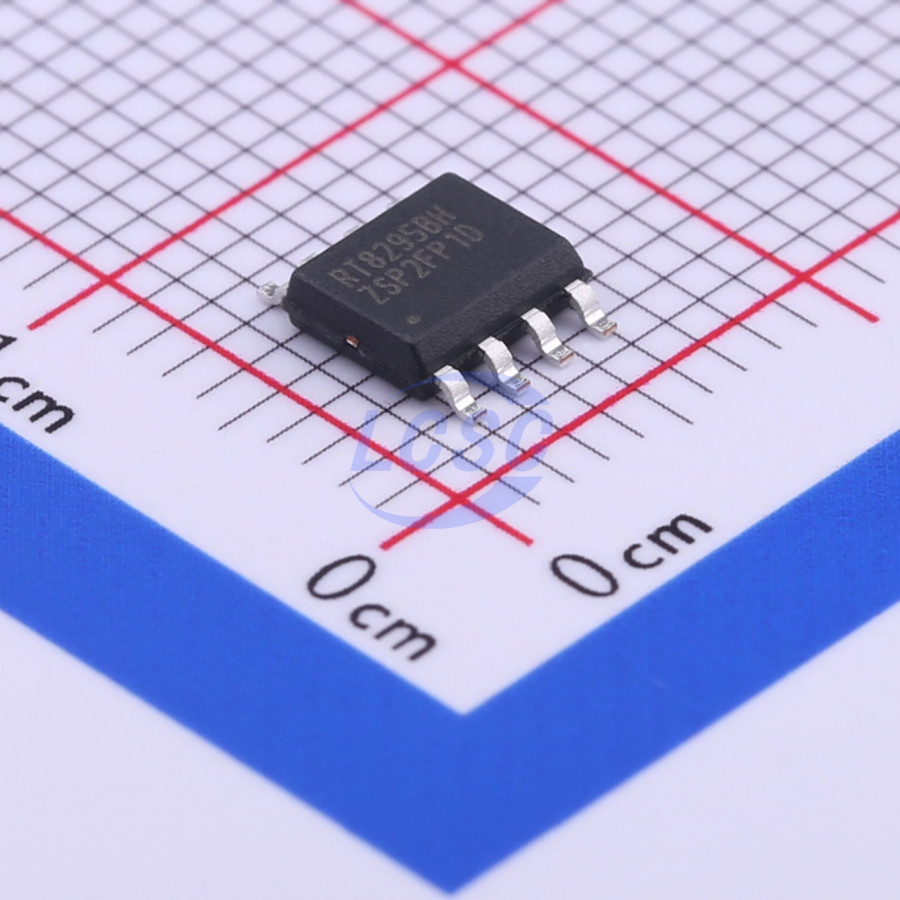

2A, 23V, 1.2MHz Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT8295BHZSP
Store part #: C250422
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,960 in stock

#C250422

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹41.36	₹206.80
50+	₹37.43	₹1,871.50
150+	₹35.73	₹5,359.50
500+	₹33.63	₹16,815.00
2,500+	₹32.69	₹81,725.00
5,000+	₹32.14	₹1,60,700.00

Quantity (min 5, multiples of 5)

5 × ₹41.36

₹206.80

excl. GST

₹244.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

RT8295BHZSP

₹206.80 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Cycle-by-cycle current limiting;Load disconnect;Hiccup current limiting;Protection latch;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~23V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~15V
Output Current: 2A
Quiescent Current: 800uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.108 g

Overview

The RT8295B is a high-efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 2A output current from a 4.5V to 23V input supply. The RT8295B's current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. The RT8295B also provides under voltage protection and thermal shutdown protection. The low current (<3μA) shutdown mode provides output disconnection, enabling easy power management in battery-powered systems. The RT8295B is available in a SOP-8 (Exposed Pad) package.

Applications

Wireless AP/Router
Set-Top-Box
Industrial and Commercial Low Power Systems
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation of High-Performance DSPs

Key features

±1.5% High Accuracy Feedback Voltage
4.5V to 23V Input Voltage Range
2A Output Current
Integrated N-MOSFET Switches
Current Mode Control
Fixed Frequency Operation: 1.2MHz
Adjustable Output from 0.8V to 15V
Up to 95% Efficiency
Programmable Soft-Start
Stable with Low-ESR Ceramic Output Capacitors
Cycle-by-Cycle Over Current Protection
Input Under Voltage Lockout
Output Under Voltage Protection
Thermal Shutdown Protection
RoHS Compliant and Halogen Free
