RICHTEKDatasheet (PDF)

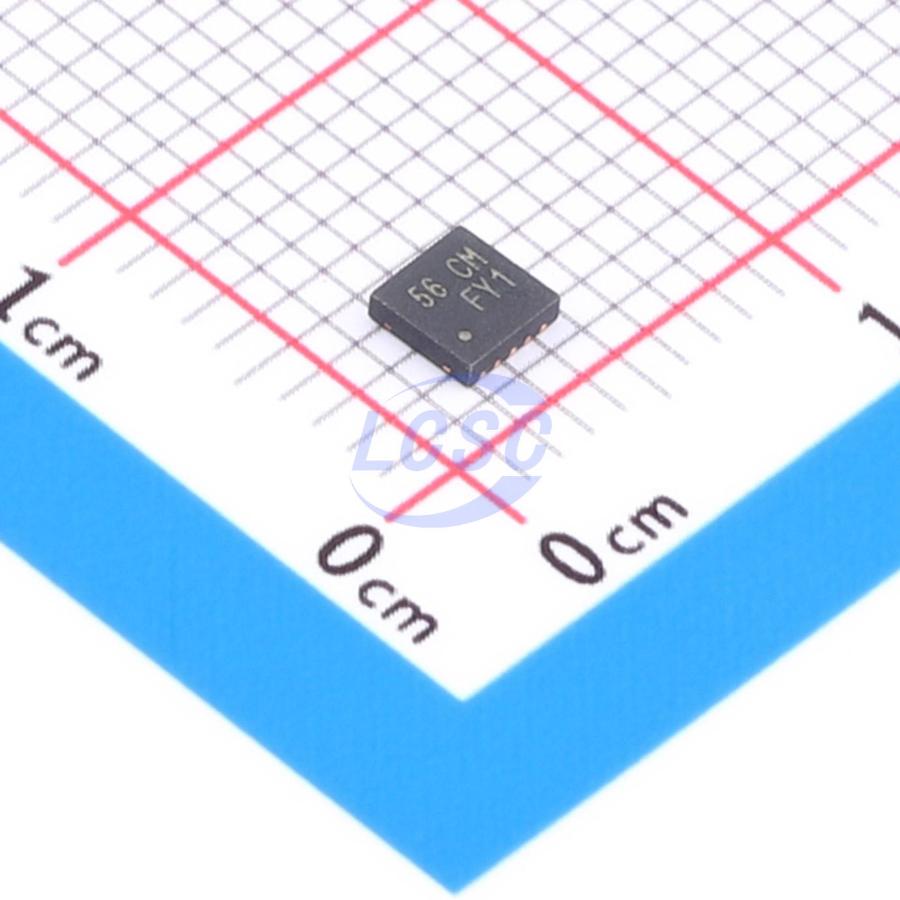

RT8299ZQW
500kHz Step-down type Adjustable 800mV~15V 3A WDFN-10(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
WDFN-10(3x3)ROHS3 CompliantActive
3A, 24V, 500kHz Synchronous Step-Down Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8299ZQW
- Store part #
- C3187672
- Package / case
- WDFN-10(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,231 in stock
#C3187672
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.13 | ₹63.13 |
| 10+ | ₹49.59 | ₹495.90 |
| 30+ | ₹43.86 | ₹1,315.80 |
| 100+ | ₹36.66 | ₹3,666.00 |
| 500+ | ₹33.49 | ₹16,745.00 |
| 1,500+ | ₹31.57 | ₹47,355.00 |
1 × ₹63.13
₹63.13
excl. GST
₹74.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RT8299ZQW
₹63.13 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Load disconnect;Built-in LDO regulator;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~15V
- Output Current
- 3A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The RT8299 is a high efficiency, monolithic synchronous step-down DC-DC converter with internal power MOSFETs. It achieves 3A of continuous output current over a wide input supply range from 3V to 24V with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. Thermal shutdown provides reliable, fault tolerant operation. The low current shutdown mode provides output disconnection, enabling easy power management in battery powered systems.
Applications
- Industrial and Commercial Low Power Systems
- Computer Peripherals
- LCD Monitors and TVs
- Green Electronics/Appliances
- Point of Load Regulation for High Performance DSPs, FPGAs, and ASICs
Key features
- 3V to 24V Input Voltage Range
- 3A Output Current
- Internal N-MOSFETs
- Current Mode Control
- Fixed Frequency Operation: 500kHz
- Output Adjustable from 0.8V to 15V
- Up to ±95% Efficiency
- Stable with Low ESR Ceramic Output Capacitors
- Cycle-by-Cycle Over Current Protection
- Input Under Voltage Lockout
- Output Under Voltage Protection
- Thermal Shutdown Protection
- SOP-8 (Exposed Pad) and 10-Lead WDFN Packages
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RT8299AZQW#C7065297RICHTEK · WDFN-10(3x3) | RICHTEK | WDFN-10(3x3) | On request | Price on request | Quote | |
