RICHTEK

RT8452GQW

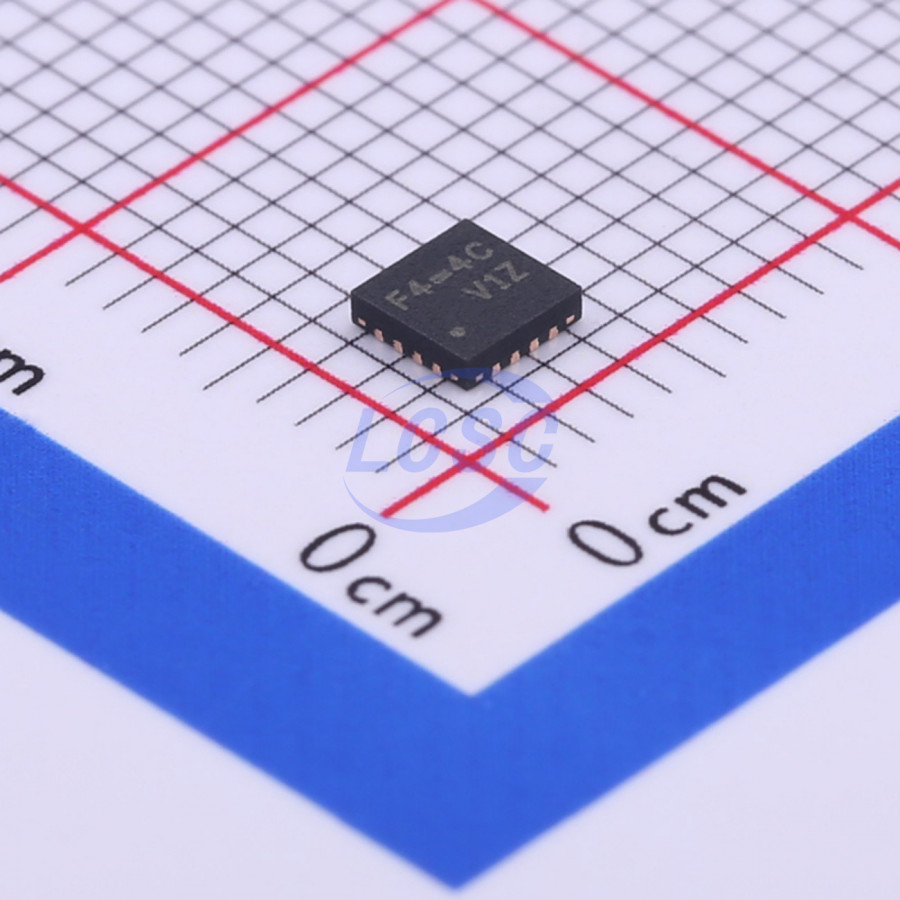

350kHz Buck-Boost 1 DC-DC 6V~36V WQFN-16-EP(3x3) LED Drivers ICs RoHS

WQFN-16-EP(3x3)ROHS CompliantActive

High Voltage High Current LED Driver Controller for Buck, Boost or Buck-Boost Topology

Manufacturer: RICHTEK
Manufacturer part #: RT8452GQW
Store part #: C250423
Package / case: WQFN-16-EP(3x3)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,084 in stock

#C250423

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹135.59	₹135.59
10+	₹111.70	₹1,117.00
30+	₹99.53	₹2,985.90
100+	₹78.67	₹7,867.00
500+	₹71.49	₹35,745.00
1,500+	₹67.80	₹1,01,700.00

Quantity (min 1)

1 × ₹135.59

₹135.59

excl. GST

₹160.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT8452GQW

₹135.59 for 1 + GST

Specifications

Features: Over Voltage Protection;Built-in soft-start;Over-Temperature Protection (OTP)
Frequency - Switching: 350kHz
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+125℃
Topology: Buck-Boost
Number of Channels: 1
Type: DC-DC
Voltage - Input(DC): 6V~36V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.027 g

Overview

The RT8452 is a current mode PWM controller designed to drive an external MOSFET for high current LED applications. With a current sense amplifier threshold of 190mV, the LED current is programmable with one external current sense resistor. With the maximum operating input voltage of 36V and output voltage up to 48V, the RT8452 is ideal for Buck, Boost or Buck-Boost operation. With 350kHz operating frequency, the external inductor and capacitors can be small while maintaining high efficiency. Dimming can be done by either analog or digital. A built-in clamping comparator and filter allow easy low noise analog dimming conversion from digital signal with only one external capacitor. An unique True PWM dimming control is made easy with MOSFET under LED string. A very high dimming ratio can be achieved by adopting both analog/ digital dimming and True PWM dimming together. The RT8452 is available in WQFN-16L 3x3 and SOP-16 packages.

Applications

General Industrial High Power LED Lighting
Desk Lights and Room Lighting
Building and Street Lighting
Industrial Display Backlight

Key features

High Voltage Capability : VIN Up to 36V, VOUT Up to 48V
Buck, Boost or Buck-Boost Operation
Current Mode PWM with 350kHz Switching Frenquency
Easy Dimming Control : Analog or Digital Converting to Analog with One External Capacitor
True PWM Dimming : External FET Driver is Buildin
Programmable Soft Start to Avoid Inrush Current
Programmable Over Voltage Protection
VIN Undervoltage Lockout and Thermal Shutdown
16-Lead WQFN and SOP Packages.
RoHS Compliant and Halogen Free
