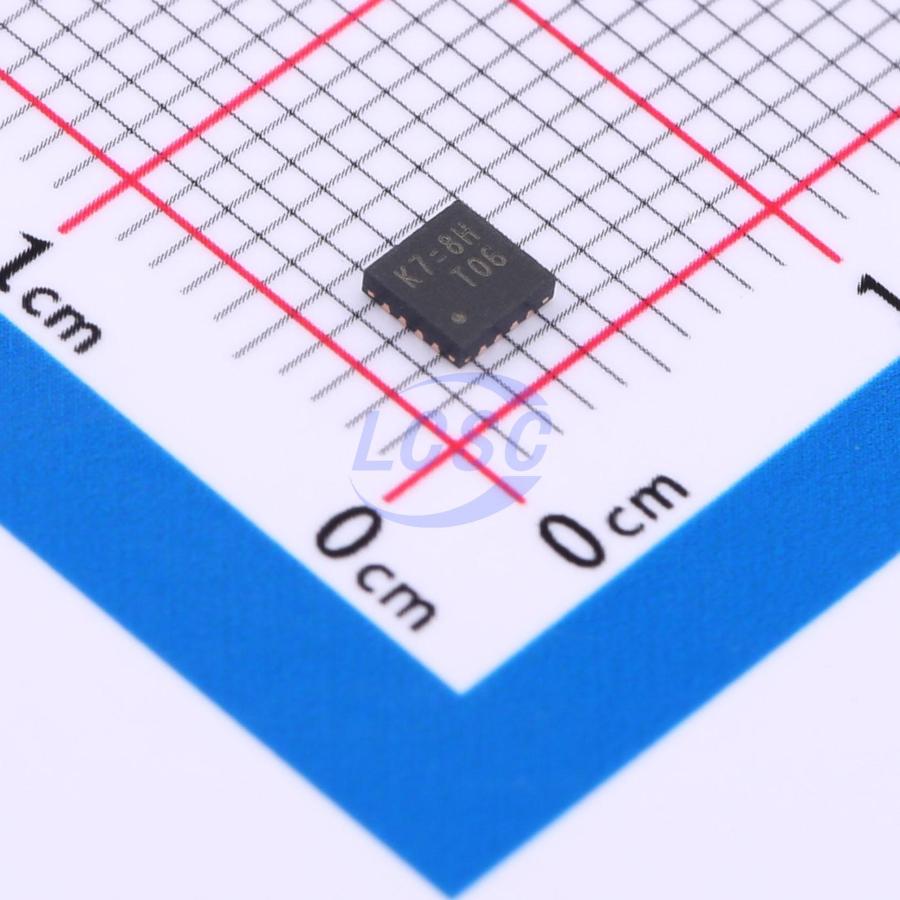

RICHTEK

RT9465GQW

3.9V~14V 1 Lithium Battery 3A WQFN-16-EP(3x3) Battery Chargers RoHS

WQFN-16-EP(3x3)ROHS3 CompliantActive

3A Single Cell Li-on Battery Slave Switching Charger

Manufacturer: RICHTEK
Manufacturer part #: RT9465GQW
Store part #: C2976600
Package / case: WQFN-16-EP(3x3)
Category: Battery Chargers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,959 in stock

#C2976600

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹128.21	₹128.21
10+	₹117.13	₹1,171.30
30+	₹111.04	₹3,331.20
100+	₹104.09	₹10,409.00
500+	₹91.05	₹45,525.00
1,500+	₹89.53	₹1,34,295.00

Quantity (min 1)

1 × ₹128.21

₹128.21

excl. GST

₹151.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT9465GQW

₹128.21 for 1 + GST

Specifications

End-Off Voltage: 2.4V
Voltage - Supply: 3.9V~14V
Quiescent Current: 2mA
Operating Temperature: -40℃~+85℃
Number of Cells: 1
Interface: I2C
Features: Constant current charging;Constant voltage charging;Programmable charging current;Over-discharge protection;Overvoltage protection;Under-voltage lockout;Charge termination;Soft-start
Battery Temperature Detection: Not supported
Type of Battery: Lithium Battery
The Chip Type: Charging IC
Charge Current - Max: 3A
Charging Saturation Voltage: 4.2V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

The RT9465 is a switch-mode single cell li-Ion/Li-Polymer battery charger for portable applications. It integrates a synchronous PWM controller and high accuracy voltage regulation. Besides, the charging current is regulated through the integrated sensing MOSFET. The RT9465 optimizes the charging task by using a control algorithm to vary the charge rate via different modes, including fast charge mode and constant voltage mode. The key charge parameters are programmable via the I²C interface. The junction temperature is monitored by ADC. Other features include under-voltage protection, overvoltage protection (including VBAT and VIN side), thermal regulation and MIVR. The RT9465 is available in a WQFN-16L 3x3 package.

Applications

Cellular Telephones
Personal Information Appliances
Tablet PC, Power Bank
Portable Instruments

Key features

Input Voltage Range: 3.9V to 14V
Synchronous 1.5MHz/0.75MHz Switching Frequency ±95% Max. Duty
Up to 92%/94% Peak Efficiency at VIN = 9V/5V
VIN Over-Voltage Protection: 14.5V
VIN Under-Voltage Protection: 3.8V
VIN Under-Voltage-Lock-Out: 3.3V
Fault Detection (VIN and VBAT Monitoring)
Programmable Minimum Input Voltage Range: 3.9V to 13.4V (0.1V/Step)
Programmable Battery Voltage Regulation Range: 3.8V to 5.06V (0.02V/Step)
Programmable End of Charge Range: 0.6A to 1.6A (0.1A/Step)
Programmable Average Output Current Regulation Range: 0.6A to 3A (0.1A/Step)
Junction Temperature Monitor: 60°C to 116°C (4°C/Step)
VIN Minimum Input Voltage Regulation (MIVR): ±3%
Battery CV (Constant Voltage) Regulation: ±1%
Output CC (Constant Current) Regulation, Output Current < 1A: ±100mA (VIN = 9V/12V)
Output CC (Constant Current) Regulation, Output Current > 1A: ±10% (VIN = 9V/12V)
Junction Temperature Monitor Accuracy: ±3°C
Thermal Shutdown: 160°C
