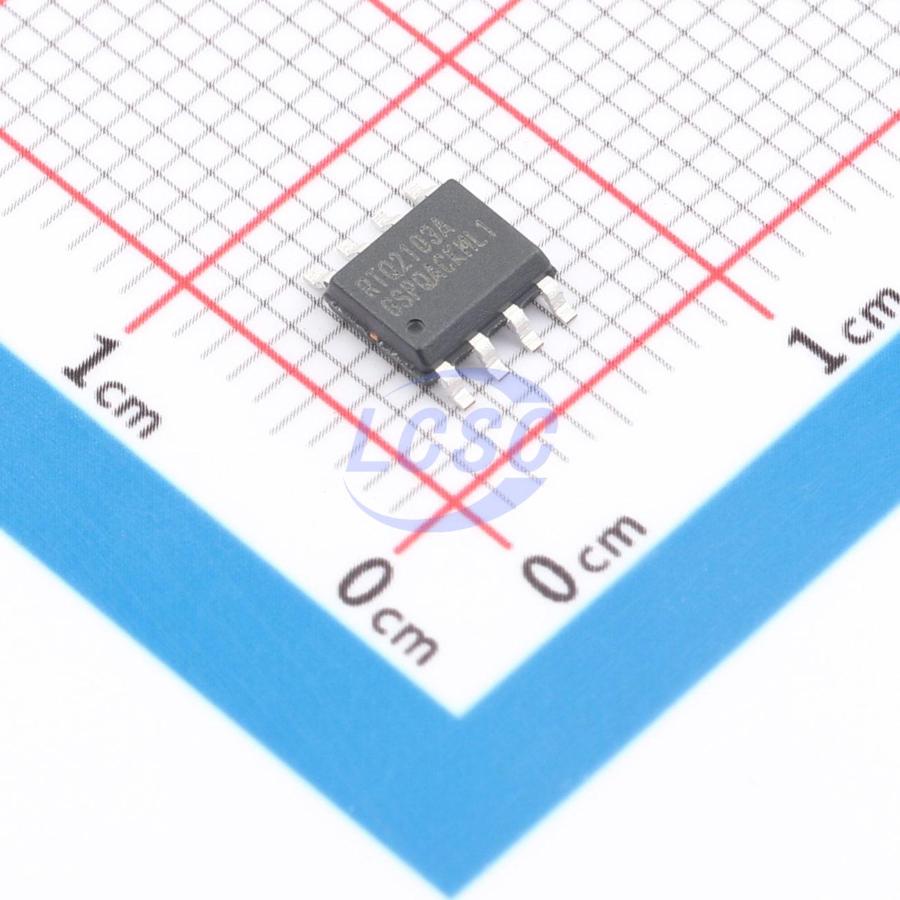

RTQ2103AGSP-QA
2.2MHz~3MHz Step-down type Adjustable 2A 1.2V~3.3V SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8-EPROHS3 CompliantActive
2A, 6V, Low IQ Synchronous Step-Down Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RTQ2103AGSP-QA
- Store part #
- C6461170
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,285 in stock
#C6461170
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.07 | ₹134.07 |
| 10+ | ₹108.66 | ₹1,086.60 |
| 30+ | ₹95.84 | ₹2,875.20 |
| 100+ | ₹83.23 | ₹8,323.00 |
| 500+ | ₹75.62 | ₹37,810.00 |
| 1,000+ | ₹71.93 | ₹71,930.00 |
1 × ₹134.07
₹134.07
excl. GST
₹158.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RTQ2103AGSP-QA
₹134.07 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 2.2MHz~3MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 1.2V~3.3V
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The RTQ2103A is a full featured 6V, 2A, Advanced Constant-On-Time (ACOT) synchronous step-down converter with two integrated MOSFETs. The advanced COT operation allows transient responses to be optimized over a wide range of loads, and output capacitors to efficiently reduce external component count. The RTQ2103A provides up to 2.7MHz switching frequency to minimize the size of output inductor and capacitors. The RTQ2103A is available in the SOP-8 (Exposed Pad) package.
Applications
- Mobile Phones and Handheld Devices
- STB, Cable Modem, and xDSL Platforms
- WLAN ASIC Power / Storage (SSD and HDD)
- General Purpose for POL LV Buck Converter
- Automotive Infotainment
- Automotive Instrument Clusters & HUD
- Car Connectivity
Key features
- AEC-Q100 Grade 1 Qualified
- 3V to 6V Input Voltage Range
- Advanced COT Control Loop Design
- Fast Transient Response
- Internal 130mΩ and 105mΩ Synchronous Rectifier
- Highly Accurate VOUT Regulation Over Load/Line Range
- Robust Loop Stability with Low-ESR COUT
- Automotive Temperature Range -40°C to 125°C
