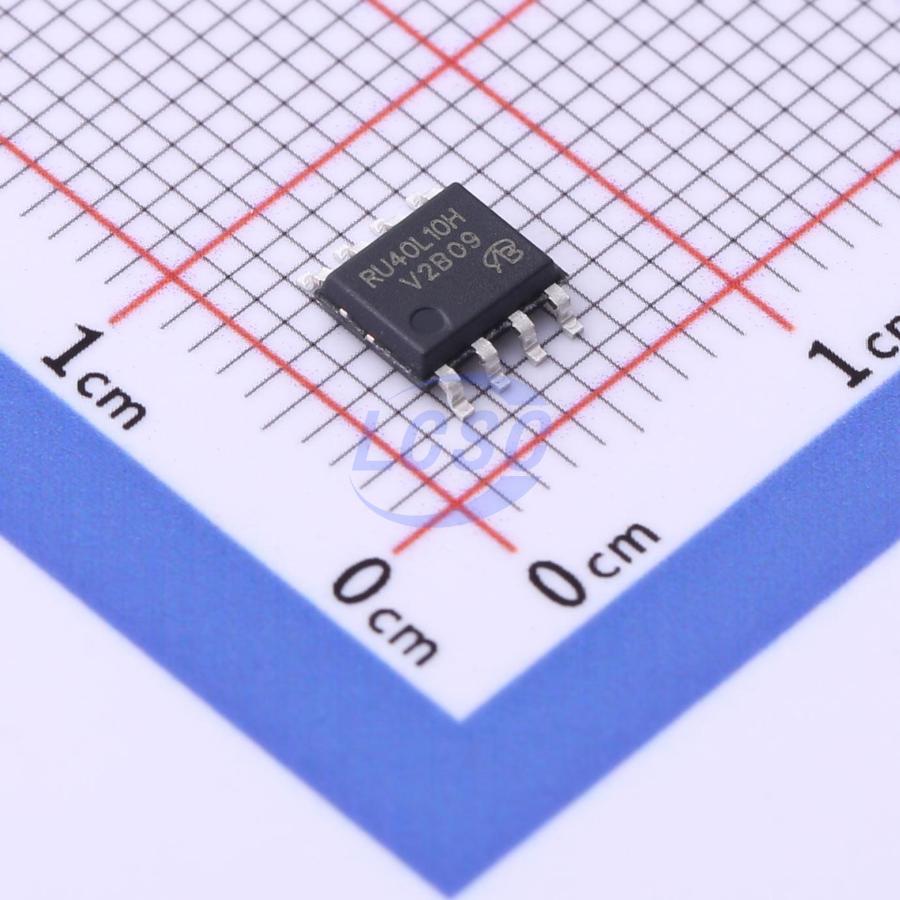

RU40L10H-VB
P-Channel 40V 8A 33W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 40V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU40L10H-VB
- Store part #
- C4355064
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C4355064
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.39 | ₹93.39 |
| 10+ | ₹77.29 | ₹772.90 |
| 30+ | ₹70.32 | ₹2,109.60 |
| 100+ | ₹61.84 | ₹6,184.00 |
| 500+ | ₹42.46 | ₹21,230.00 |
| 1,000+ | ₹40.06 | ₹40,060.00 |
1 × ₹93.39
₹93.39
excl. GST
₹110.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RU40L10H-VB
₹93.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 427pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 3.28nF
- Pd - Power Dissipation
- 33W
- Reverse Transfer Capacitance (Crss)
- 382pF
- RDS(on)
- 17.6mΩ@10V;20.8mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 35.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- Adaptor
- Switch
- Load Switch
- Power Management
- Mobile Computing
Key features
- 100% Rg and UIS Tested
