VBsemi ElecDatasheet (PDF)

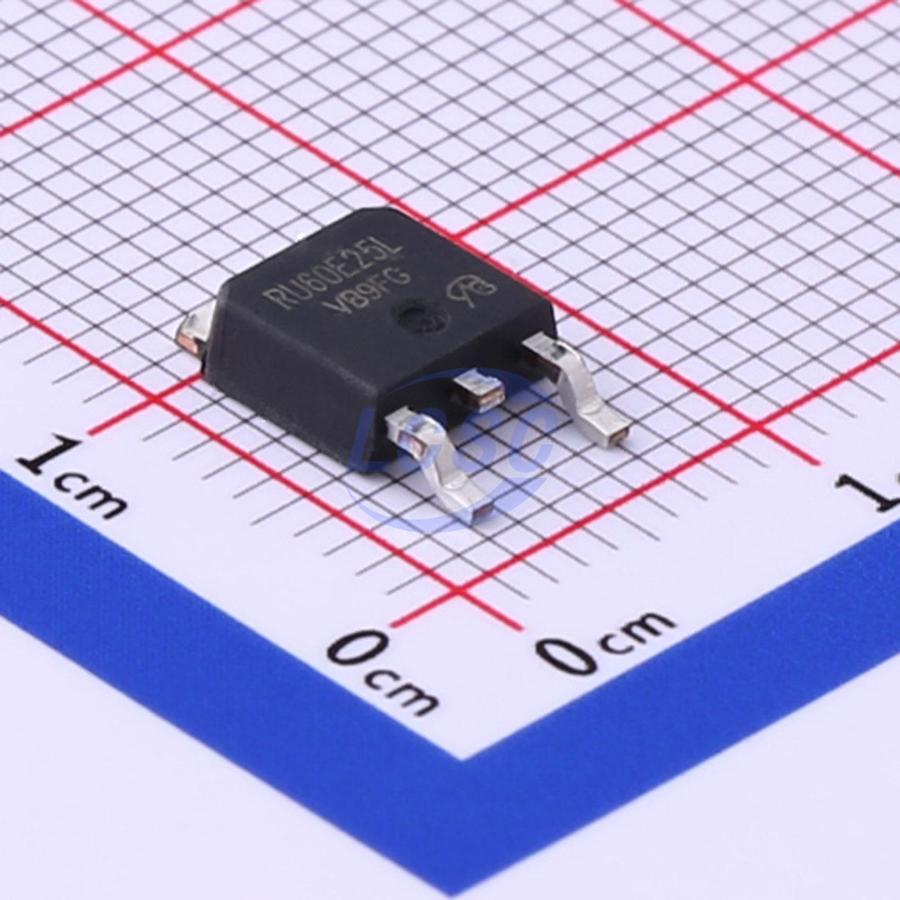

RU60E25L-VB
N-Channel 60V 45A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU60E25L-VB
- Store part #
- C693325
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C693325
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.88 | ₹64.88 |
| 10+ | ₹51.50 | ₹515.00 |
| 30+ | ₹45.91 | ₹1,377.30 |
| 100+ | ₹38.72 | ₹3,872.00 |
| 500+ | ₹31.54 | ₹15,770.00 |
| 1,000+ | ₹29.54 | ₹29,540.00 |
1 × ₹64.88
₹64.88
excl. GST
₹76.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RU60E25L-VB
₹64.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Key features
- Trench power MOSFET
- Junction temperature up to 175°C
- RoHS compliant
- Drain connected to heatsink
- N-channel MOSFET
