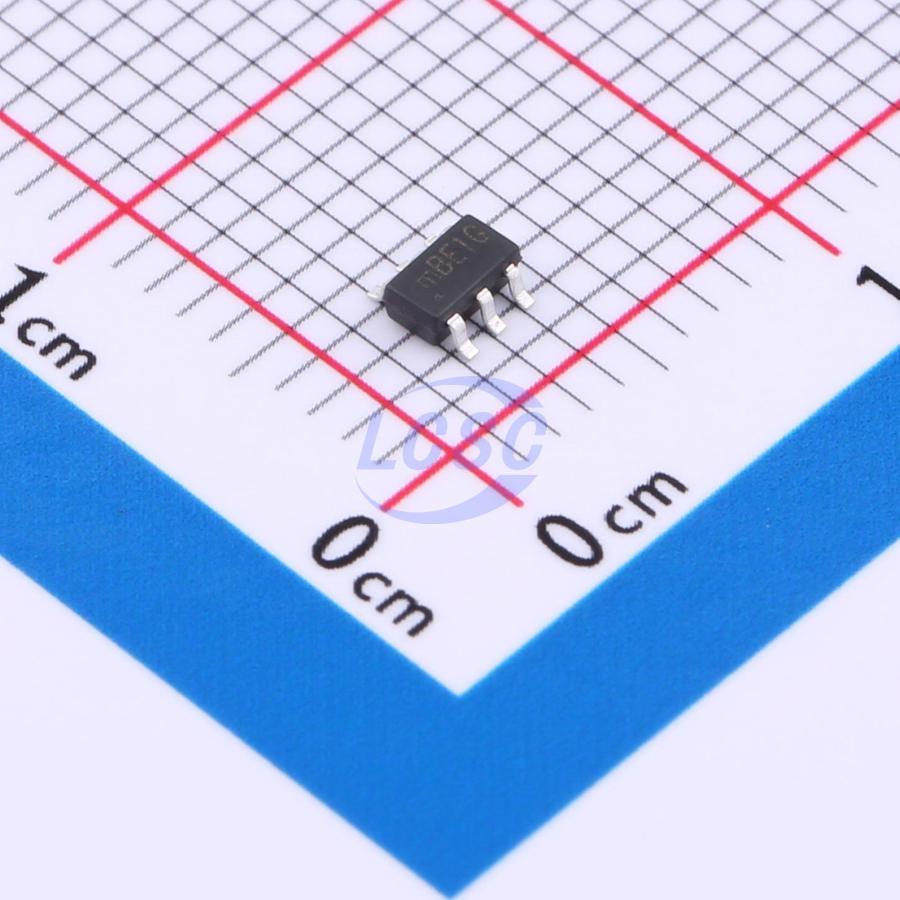

RY2334AT6

A high voltage 30V over voltage protector (OVP) which has a low on resistance, by only change the external connecting. It can be used as an OVP device or a high voltage switch. It consists of a charge pump, a configurable power MOSFET, a voltage reference, a gate driver and some logics and protection modules. It can react to an input surge very fast and shut off the switch in less than 0.1us. It is available in SOT-23-3, SOT23-6 package. It can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected. The system is positive overvoltage protected up to 30V. The internal OVLO is 6.0V. It also has internal over temperature protect (OTP) function and it can monitor chip temperature to protect the device.

Applications

• All electronic devices with input DC power plug
• Car Camera
• E-Cigarette
• Cellphone

Key features

• 30V standoff voltage
• Fixed 6.0V protection voltage
• Integrated OTP
• Environment Temperature: -40°C~85°C
• Maximum load Current 2A
• Typical equivalent on-resistance 110mΩ
• Input OVP with 0.1us reaction time
• SOT-23-3, SOT23-6 package
