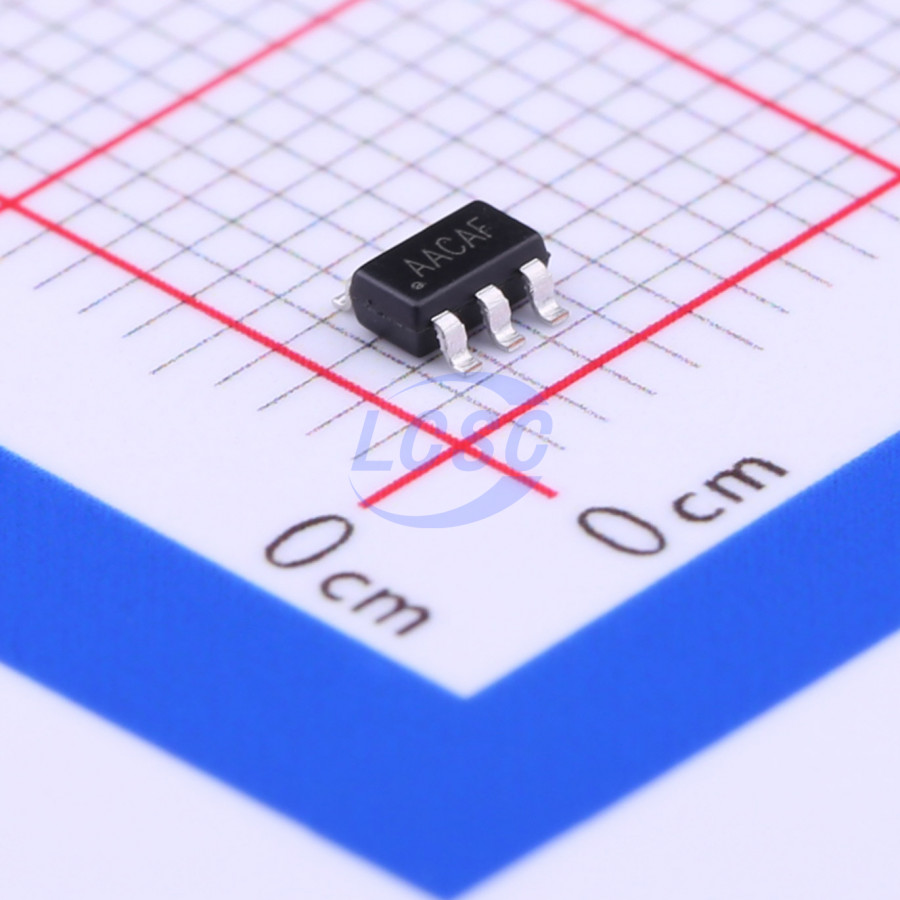

RYCHIP Semiconductor Inc.

RY3408

1.5MHz Step-down type Fixed 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

5.5V 1A 1.5MHz Synchronous Step-Down Regulator

Manufacturer: RYCHIP Semiconductor Inc.
Manufacturer part #: RY3408
Store part #: C370750
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,240 in stock

#C370750

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹6.81	₹136.20
200+	₹6.05	₹1,210.00
600+	₹5.61	₹3,366.00
3,000+	₹5.36	₹16,080.00
9,000+	₹5.13	₹46,170.00
21,000+	₹5.01	₹1,05,210.00

Quantity (min 20, multiples of 20)

20 × ₹6.81

₹136.20

excl. GST

₹160.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RY3408

₹136.20 for 20 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.5MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 1A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.04 g

Overview

The RY3408 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to <1uA in shutdown. The 2.5V to 5.5V input voltage range makes the RY3408 ideally suited for single Li-Ion battery powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications. Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. Low output voltages are easily supported with the 0.6V feedback reference voltage. The RY3408 is offered in a low profile (1mm) 5-pin, thin SOT package, and is available in an adjustable version.
