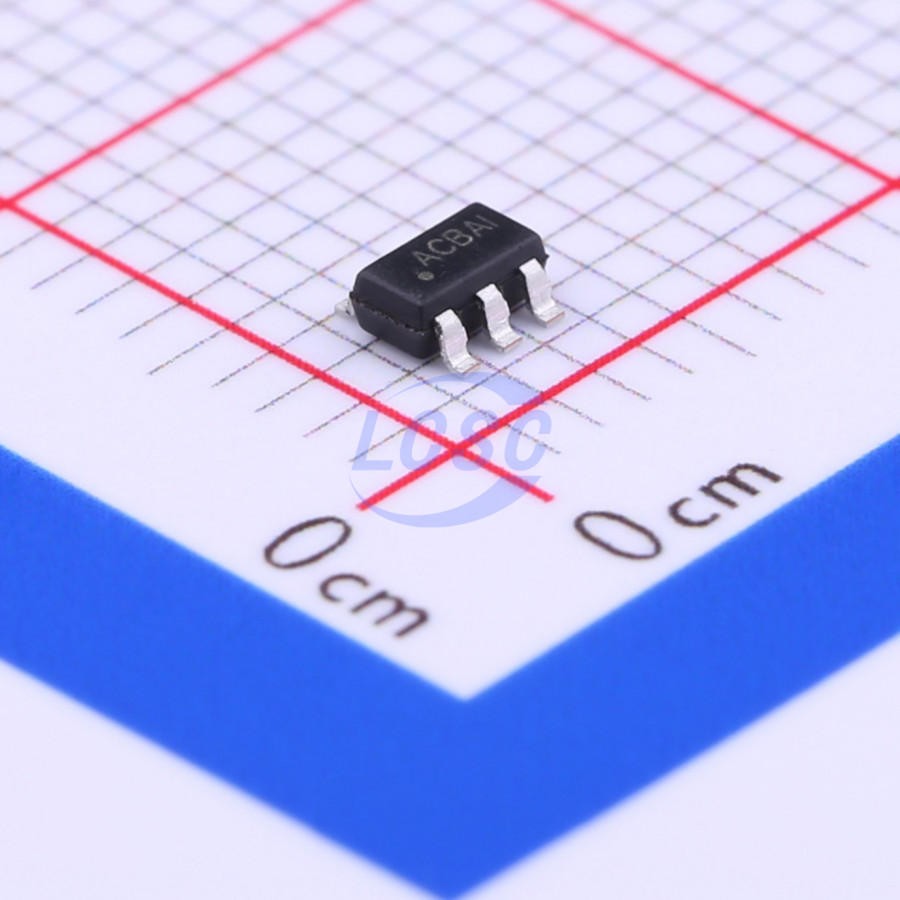

RYCHIP Semiconductor Inc.

RY3415

1.5MHz Step-down type Adjustable 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

5.5V 1.5A 1.5MHz Sync Step-Down Regulator

Manufacturer: RYCHIP Semiconductor Inc.
Manufacturer part #: RY3415
Store part #: C370753
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,080 in stock

#C370753

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.03	₹50.30
100+	₹3.94	₹394.00
300+	₹3.41	₹1,023.00
3,000+	₹3.02	₹9,060.00

Quantity (min 10, multiples of 10)

10 × ₹5.03

₹50.30

excl. GST

₹59.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RY3415

₹50.30 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.5MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The RY3415 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to <1uA in shutdown. The 2.5V to 5.5V input voltage range makes the RY3415 ideally suited for single Li-Ion battery powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications. Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. Low output voltages are easily supported with the 0.6V feedback reference voltage. The RY3415 is offered in a low profile (1mm) 5-pin, thin SOT package, and is available in an adjustable version.
