RYCHIP Semiconductor Inc.Datasheet (PDF)

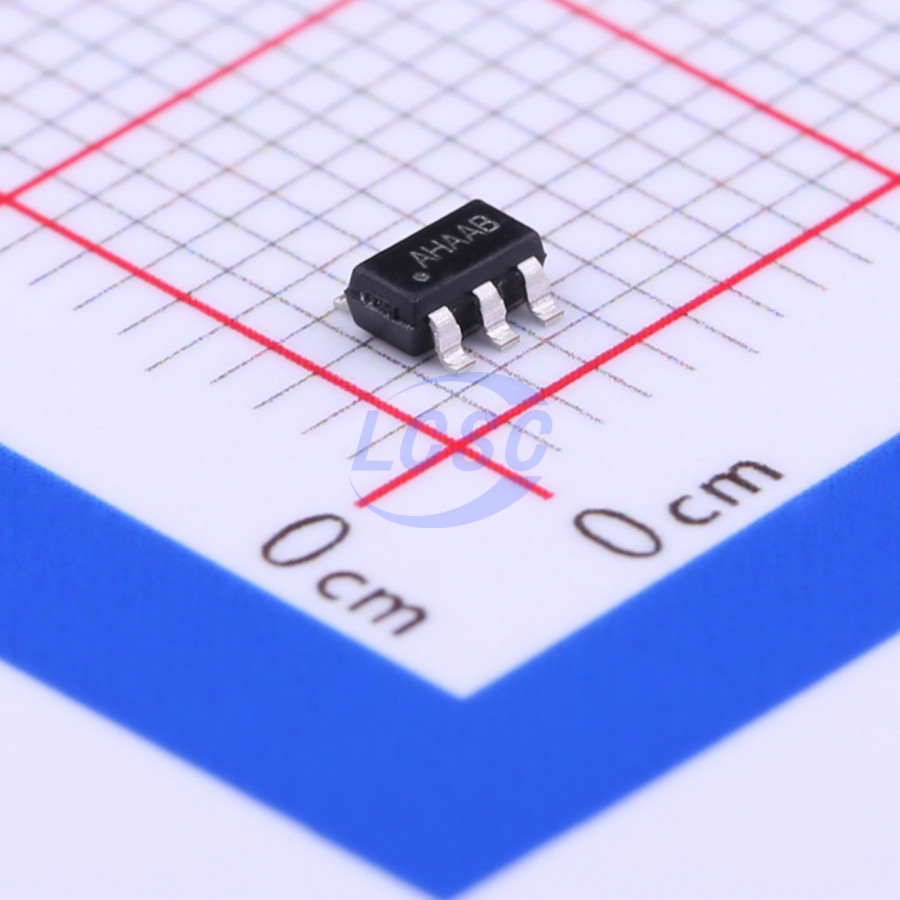

RY3430
1.2MHz Step-down type Adjustable 3A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
5.5V 3A 1.2MHz Synchronous Step-Down Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY3430
- Store part #
- C370755
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44,330 in stock
#C370755
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹14.39 | ₹143.90 |
| 100+ | ₹12.83 | ₹1,283.00 |
| 300+ | ₹12.05 | ₹3,615.00 |
| 3,000+ | ₹11.46 | ₹34,380.00 |
| 6,000+ | ₹10.99 | ₹65,940.00 |
| 9,000+ | ₹10.76 | ₹96,840.00 |
10 × ₹14.39
₹143.90
excl. GST
₹169.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY3430
₹143.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The RY3430 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to <1uA in shutdown. The 2.5V to 5.5V input voltage range makes the RY3430 ideally suited for single Li-Ion battery powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications. Switching frequency is internally set at 1.2MHz, allowing the use of small surface mount inductors and capacitors. Low output voltages are easily supported with the 0.6V feedback reference voltage. The RY3430 is offered in a low profile (1mm) 5-pin, thin SOT package, and is available in an adjustable version.
Applications
- Cellular and Smart Phones
- Portable Instruments
- Wireless and DSL Modems
- Digital Still and Video Cameras
- PDAs
- PC Cards
Key features
- High Efficiency: Up to 96%
- 2.5V to 5.5V Input Voltage Range
- 1.2MHz Constant Frequency Operation
- Up to 3.0A Current Output
- No Schottky Diode Required
- PFM Mode for High Efficiency in Light Load
- Over temperature Protected
- Low Quiescent Current: 40μA
- Short Circuit Protection
- Inrush Current Limit and Soft Start
- Low Dropout Operation: 100% Duty Cycle
- SOT23-5 package
