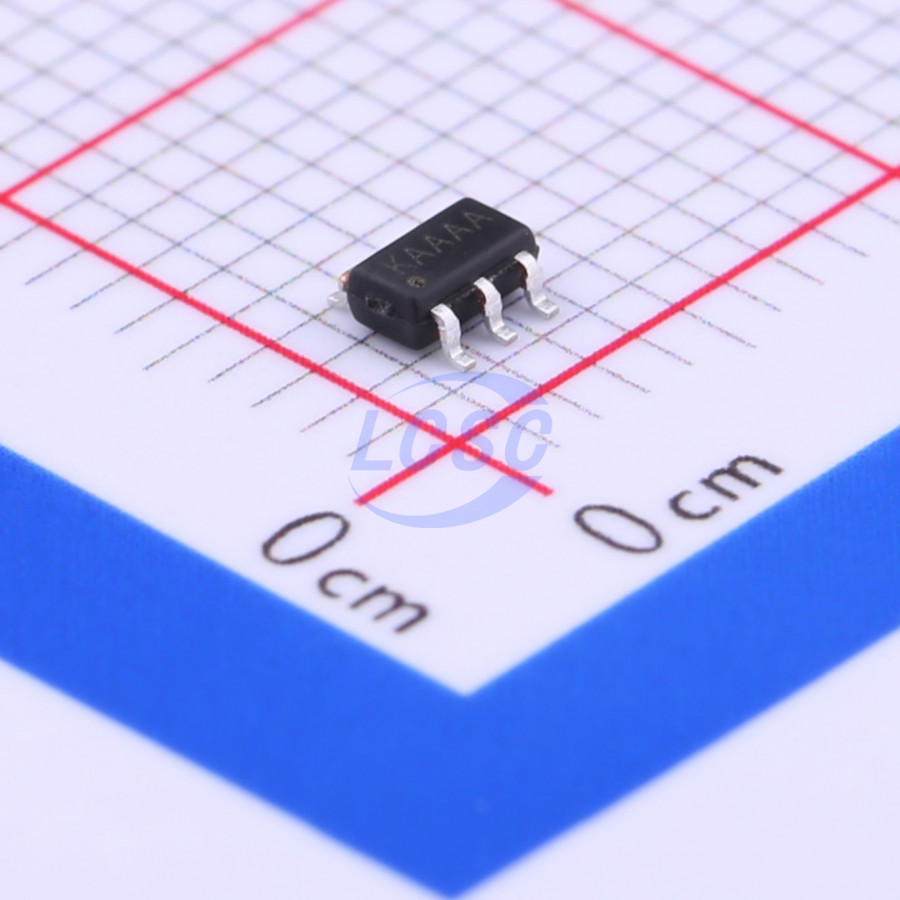

RYCHIP Semiconductor Inc.

RY3708

1.2MHz Boost Adjustable 2.5V~5.5V 1A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

5.5V Output, 1A, 1.2MHz Boost Regulator

Manufacturer: RYCHIP Semiconductor Inc.
Manufacturer part #: RY3708
Store part #: C370884
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,580 in stock

#C370884

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.67	₹86.70
100+	₹6.85	₹685.00
300+	₹5.94	₹1,782.00
3,000+	₹5.27	₹15,810.00
6,000+	₹4.72	₹28,320.00
9,000+	₹4.45	₹40,050.00

Quantity (min 10, multiples of 10)

10 × ₹8.67

₹86.70

excl. GST

₹102.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RY3708

₹86.70 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~5.5V
Output Current: 1A
Quiescent Current: 50uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.039 g

Overview

A constant frequency, current mode step-up converter intended for small, low power applications. Switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. Includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. Available in a small 6-pin SOT-23 package.
