RYCHIP Semiconductor Inc.

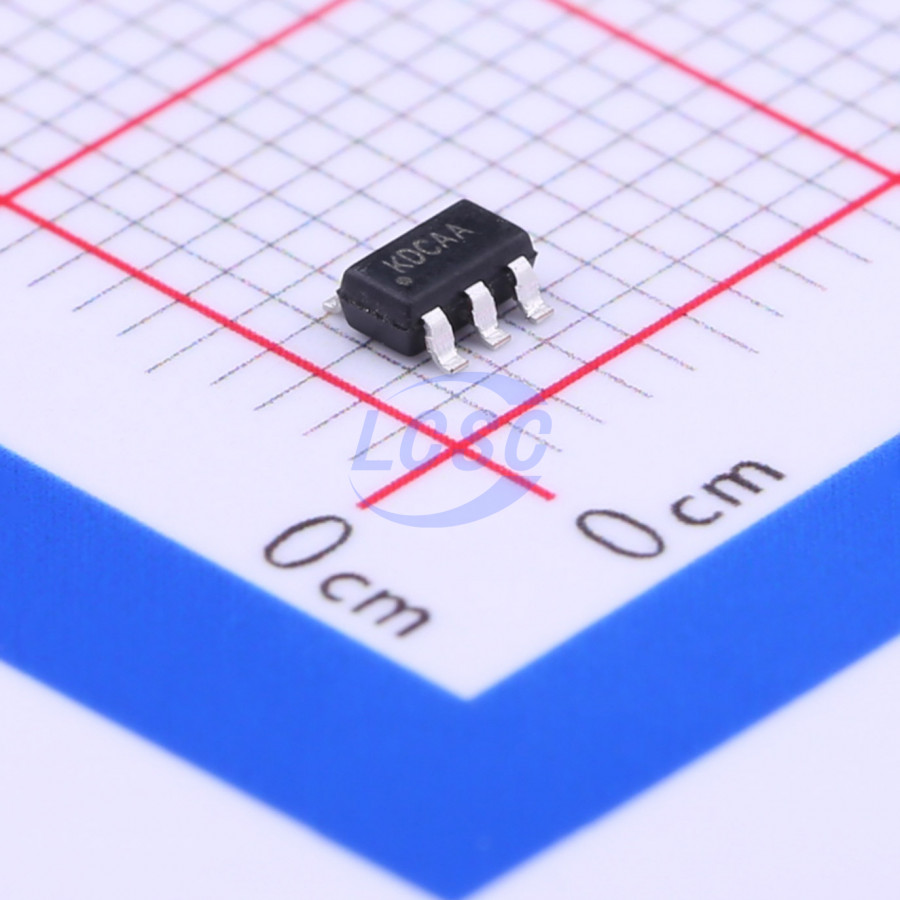

RY3730

2.5V~30V 1.2MHz 1 Boost 2.5V~5.5V SOT-23-6 LED Drivers ICs RoHS

SOT-23-6ROHS CompliantActive

1.2MHz, 30V Output, Step-Up WLED Driver

Manufacturer: RYCHIP Semiconductor Inc.
Manufacturer part #: RY3730
Store part #: C370887
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

35,280 in stock

#C370887

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹10.74	₹107.40
100+	₹9.58	₹958.00
300+	₹9.00	₹2,700.00
3,000+	₹8.56	₹25,680.00
6,000+	₹8.20	₹49,200.00
9,000+	₹8.03	₹72,270.00

Quantity (min 10, multiples of 10)

10 × ₹10.74

₹107.40

excl. GST

₹126.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RY3730

₹107.40 for 10 + GST

Specifications

Output Voltage: 2.5V~30V
Features: Over Voltage Protection;Built-in soft-start;Over-Temperature Protection (OTP);Remove stroboscopic effect
Frequency - Switching: 1.2MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Topology: Boost
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.039 g

Overview

A step-up converter designed for driving up to 8 Series white LED's from a single cell Lithium Ion battery. Its low 250mV feedback voltage reduces power loss and improves efficiency. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. Internal soft start function can reduce the inrush current. Tiny package type provides the best solution for PCB space saving and total BOM cost.
