RYCHIP Semiconductor Inc.

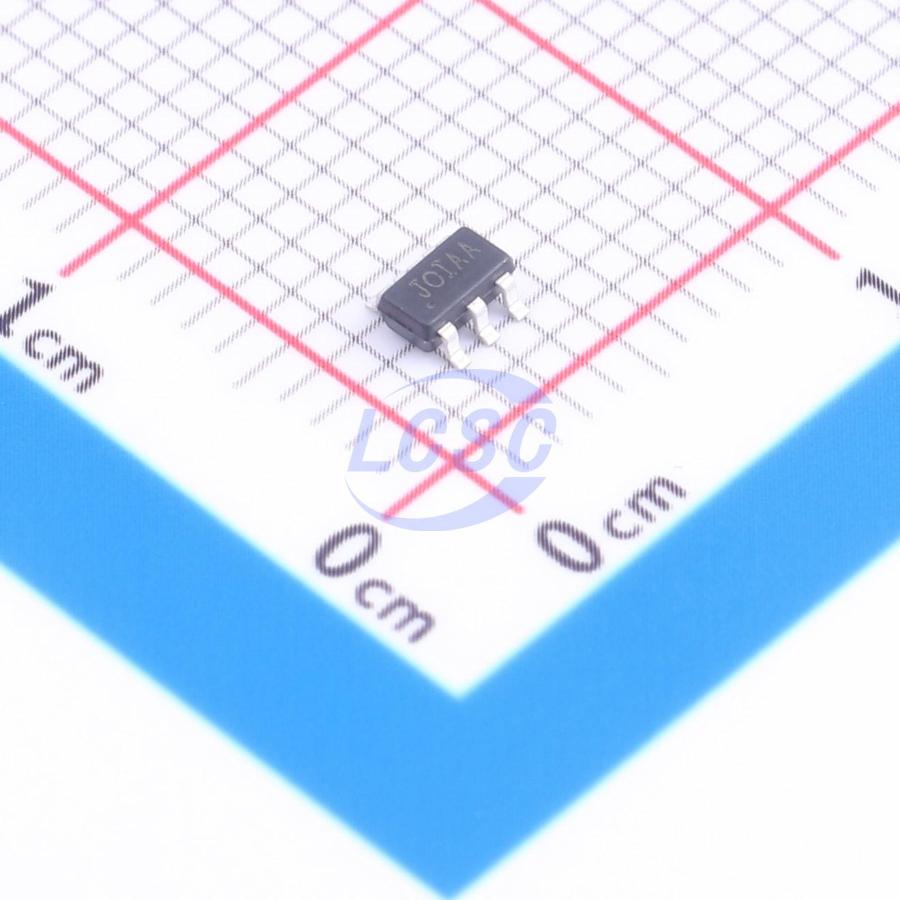

RY7317AT6

0V~10V 1MHz 1 Buck DC-DC 1A 4.5V~30V SOT-23-6 LED Drivers ICs RoHS

SOT-23-6ROHS CompliantActive

30V 1A 1MHz Sync Step-Down Dimmable LED Driver

Manufacturer: RYCHIP Semiconductor Inc.
Manufacturer part #: RY7317AT6
Store part #: C48580217
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,910 in stock

#C48580217

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.92	₹109.60
50+	₹16.99	₹849.50
150+	₹14.88	₹2,232.00
500+	₹12.25	₹6,125.00
3,000+	₹11.07	₹33,210.00
6,000+	₹10.37	₹62,220.00

Quantity (min 5, multiples of 5)

5 × ₹21.92

₹109.60

excl. GST

₹129.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RY7317AT6

₹109.60 for 5 + GST

Specifications

Output Voltage: 0V~10V
Features: Built-in soft-start;Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Topology: Buck
Type: DC-DC
Output Current: 1A
Voltage - Input(DC): 4.5V~30V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The RY7317 is step-down regulator for dimmable LED driver, which is designed in continuous current mode for driving the high-brightness LEDs from a wide input voltage of 4.5V to 30V. It supports the analog and PWM dimming signal to achieve dimmable LED lighting application. The RY7317 includes under-voltage lockout and thermal overload protection to prevent damage in the event of an output overload. The RY7317 requires a minimal number of readily available external components and is available in a space saving SOT23-6 package.
