RYCHIP Semiconductor Inc.Datasheet (PDF)

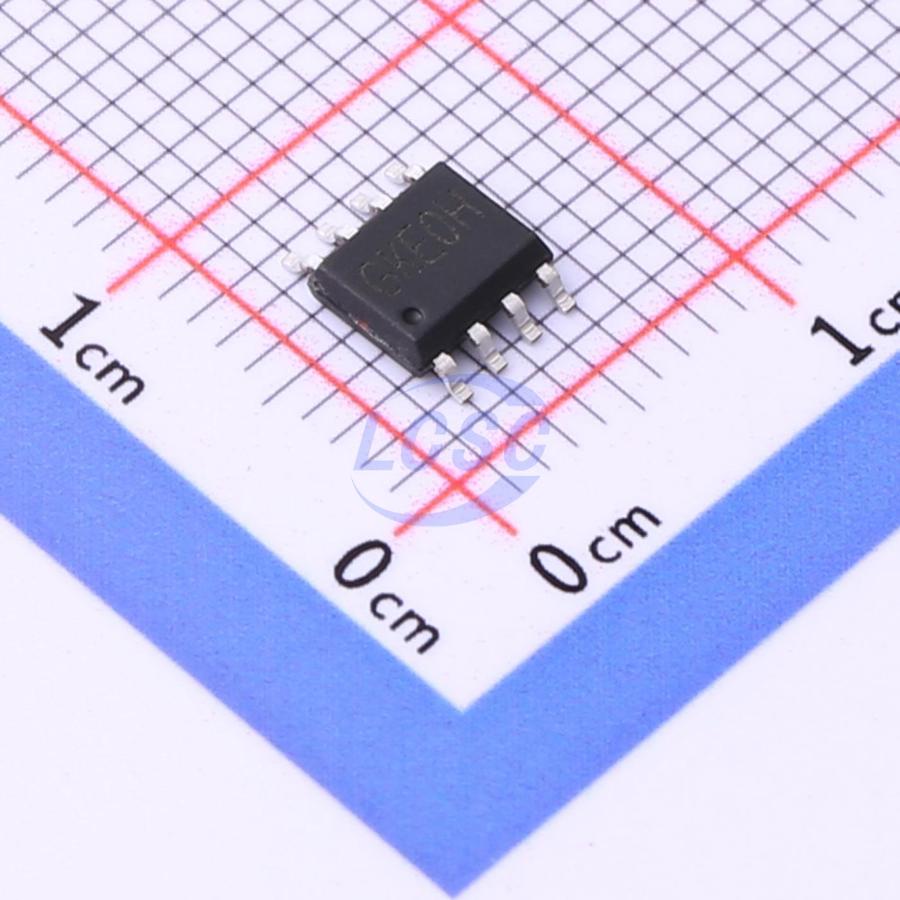

RY8326
Step-down type 500kHz Adjustable 2A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
30V 2A Synchronous Step-Down Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY8326
- Store part #
- C370878
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C370878
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.03 | ₹85.15 |
| 50+ | ₹13.27 | ₹663.50 |
| 150+ | ₹11.39 | ₹1,708.50 |
| 500+ | ₹9.99 | ₹4,995.00 |
| 3,000+ | ₹8.86 | ₹26,580.00 |
| 6,000+ | ₹8.30 | ₹49,800.00 |
5 × ₹17.03
₹85.15
excl. GST
₹100.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY8326
₹85.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The RY8326 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A peak output current over a wide input supply range, with excellent load and line regulation.
Applications
- Car Charge/Adapter
- Flat-Panel Television and Monitor
- Notebook Systems and I/O Power
- Distributed Power Systems
Key features
- Wide 4V to 30V Operating Input Range
- 2A Continuous Output Current
- 500kHz Switching Frequency
- Short Protection with Hiccup-Mode
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Internal Power-Save Mode (PFM/PWM)
- Internal Soft-Start
- 200mΩ/150mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.923V
- No Schottky Diode Required
- Integrated internal compensation
- Thermal Shutdown
- Available in ESOP8 Package
- -40°C to +85°C Temperature Range
