RYCHIP Semiconductor Inc.Datasheet (PDF)

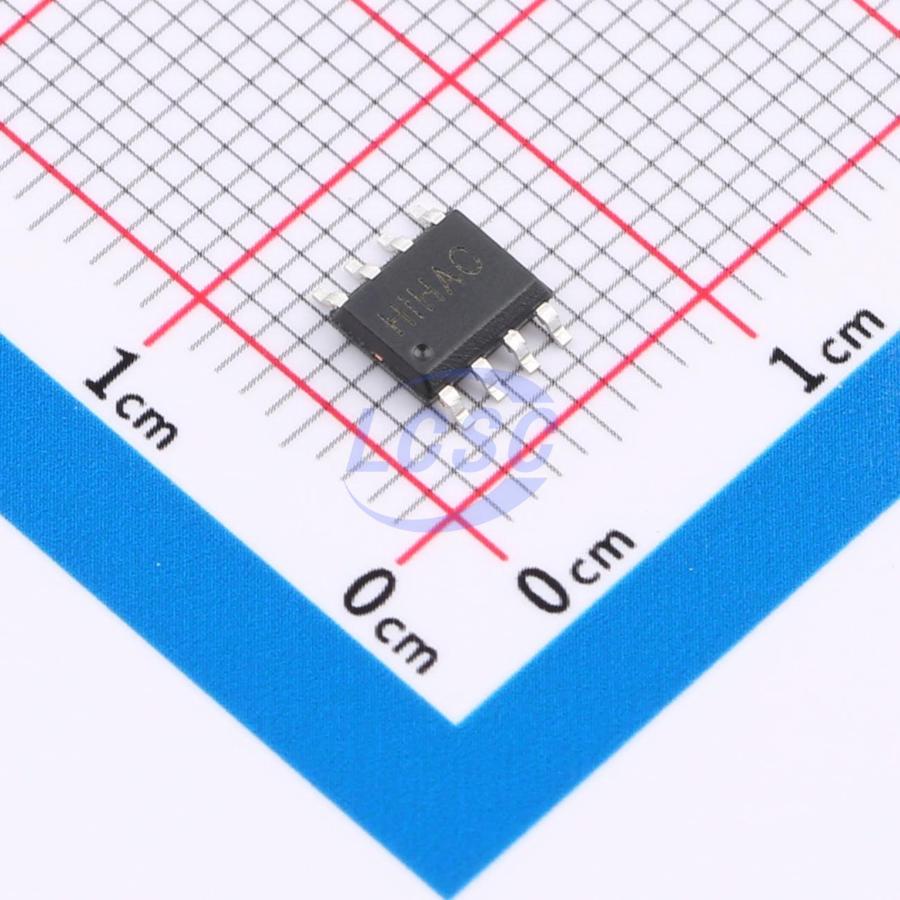

RY8630CP8
Buck Switching Regulator IC Adjustable 1V~48V 1 Output 3A SOP-8
SOP-8ROHS CompliantActive
60V 3A 500KHz Async Step-Down Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY8630CP8
- Store part #
- C48580214
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,783 in stock
#C48580214
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.39 | ₹55.39 |
| 10+ | ₹43.88 | ₹438.80 |
| 30+ | ₹38.88 | ₹1,166.40 |
| 100+ | ₹32.80 | ₹3,280.00 |
| 500+ | ₹29.98 | ₹14,990.00 |
| 1,000+ | ₹28.46 | ₹28,460.00 |
1 × ₹55.39
₹55.39
excl. GST
₹65.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY8630CP8
₹55.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 1V~48V
- Quiescent Current
- 650uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.201 g
Overview
RY8630 is a current-mode monolithic step-down switching regulator with an input voltage range of 4.5V to 60V, capable of delivering 3A continuous output current over a wide input supply range with excellent load and line regulation. Under light-load conditions, the regulator operates at reduced frequency to maintain high efficiency and minimize output ripple. Current-mode control provides tight load transient response. The RY8630 achieves low EMI characteristics through well-controlled switching edges. Fault protection features include programmable output overvoltage protection, detectable output short-circuit protection, thermal shutdown, and input undervoltage lockout. The RY8630 is available in ESOP8A, ESOP8B, and ESOP8C packages, offering a compact solution with minimal external components.
Applications
- Automotive GPS
- Automotive entertainment systems
- Linear charger power supply
- Network equipment
Key features
- 4.5V to 60V wide input voltage range
- 3A continuous output current
- 500KHz switching frequency
- Detectable output short-circuit protection
- Programmable output overvoltage protection
- PSM mode for high efficiency at light load
- Low EMI characteristics
- 150mΩ internal power MOSFET
- Output voltage adjustable from 0.8V
- Internal soft-start
- Thermal shutdown
- Available in ESOP8A, ESOP8B, and ESOP8C packages
- -40°C to +85°C operating temperature range
