RYCHIP Semiconductor Inc.Datasheet (PDF)

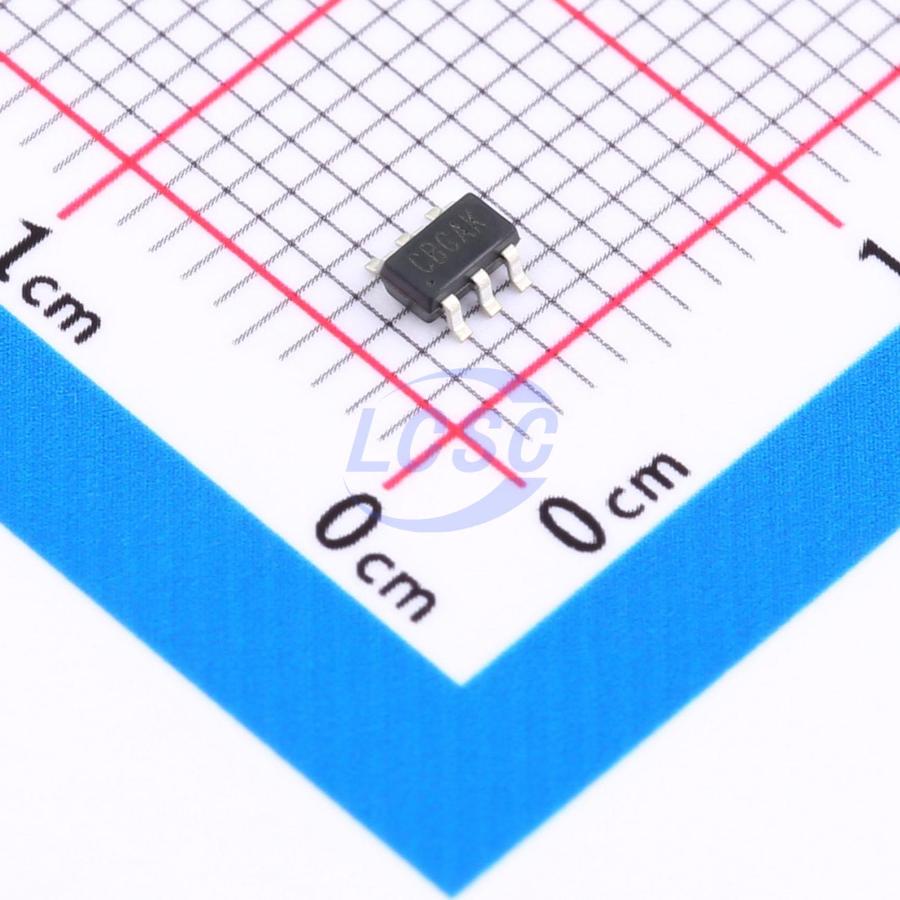

RY9121E
Step-down type 1.2MHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY9121E
- Store part #
- C22392164
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,450 in stock
#C22392164
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.59 | ₹75.90 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.25 | ₹1,575.00 |
| 3,000+ | ₹4.67 | ₹14,010.00 |
| 6,000+ | ₹4.21 | ₹25,260.00 |
| 9,000+ | ₹3.97 | ₹35,730.00 |
10 × ₹7.59
₹75.90
excl. GST
₹89.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY9121E
₹75.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
RY9121E is a high-frequency, synchronous rectification, step-down switching converter with integrated power MOSFETs. It delivers 2A continuous output current over a wide input voltage range with excellent load and line regulation. The ECOT control mode provides ultra-fast transient response, simplified loop design, and tight output regulation. The device requires minimal external components and comes in a space-saving SOT23-6 package.
Applications
- Digital set-top boxes
- Tablet PCs
- Flat-panel TVs and monitors
- Wi-Fi routers/access points
- Digital video recorders
- Portable media players
- Cable modems/XDSL
- General purpose
Key features
- 4.5V to 17V wide input voltage range
- 2A continuous output current
- 1.2MHz switching frequency
- ECOT mode control with fast transient response
- Built-in overcurrent limiting
- Built-in overvoltage protection
- Forced PWM mode
- Internal soft-start
- 110mΩ/70mΩ low RDS(ON) internal power MOSFETs
- Output voltage adjustable from 0.6V
- No Schottky diode required
- Short-circuit protection with hiccup mode
- Integrated internal compensation
- Thermal shutdown protection
- SOT23-6 package
- -40°C to +85°C operating temperature range
