RYCHIP Semiconductor Inc.Datasheet (PDF)

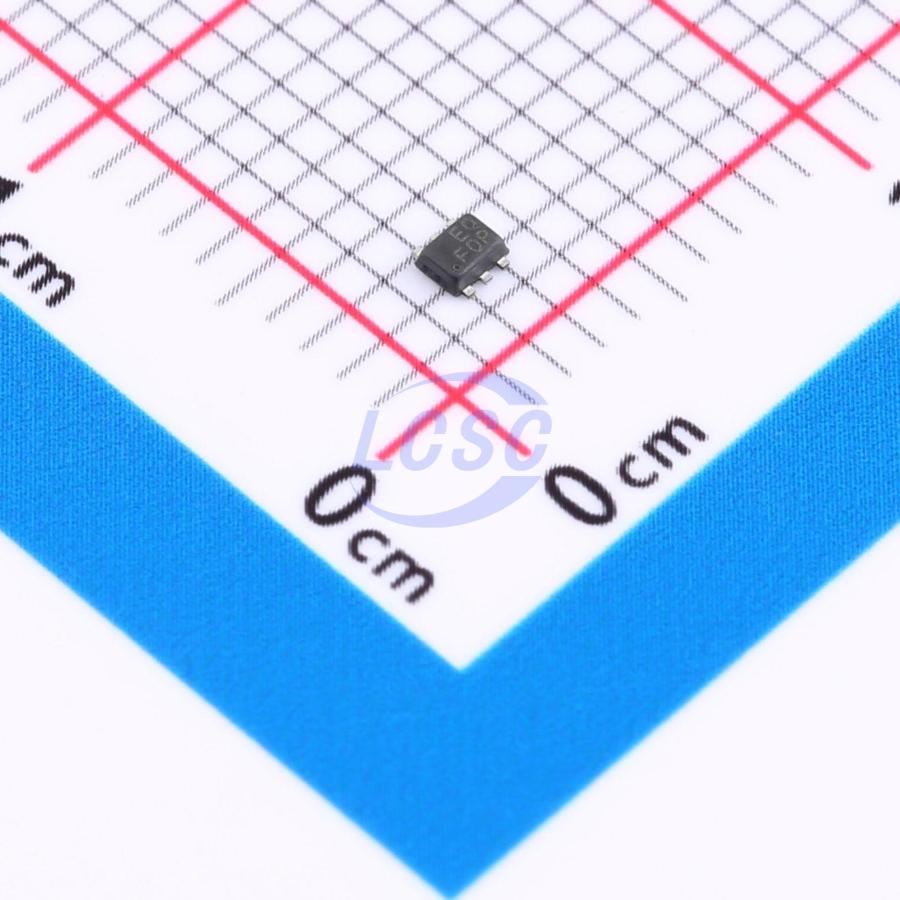

RY9128D
Step-down type 1MHz~1.4MHz Adjustable 2A SOT-563 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-563ROHS CompliantActive
17V 2A 1.2MHz ECOT Force-CCM Sync Step-Down Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY9128D
- Store part #
- C48580213
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,985 in stock
#C48580213
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.17 | ₹55.85 |
| 50+ | ₹8.77 | ₹438.50 |
| 150+ | ₹7.57 | ₹1,135.50 |
| 500+ | ₹6.67 | ₹3,335.00 |
| 2,500+ | ₹5.95 | ₹14,875.00 |
| 5,000+ | ₹5.60 | ₹28,000.00 |
5 × ₹11.17
₹55.85
excl. GST
₹65.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RY9128D
₹55.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz~1.4MHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
A high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation. It requires a minimal number of readily available, external components and is available in a space saving SOT563 package.
Applications
- Digital Set-top Box (STB)
- Tablet Personal Computer (Pad)
- Flat-Panel Television and Monitor
- Wi-Fi Router / AP
- Digital Video Recorder (DVR)
- Portable Media Player (PMP)
- Cable Modem / XDSL
- General Purposes
Key features
- Wide 4.5V to 17V Operating Input Range
- 2A Continuous Output Current
- 1.2MHz Switching Frequency
- ECOT Mode Control with Fast Transient Response
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Continuous Conduction Mode (CCM)
- Internal Soft-Start
- 110mΩ/70mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.6V
- Short Protection with Hiccup-Mode
- Integrated internal compensation
- Thermal Shutdown
- Available in SOT563 Package
- -40°C to +85°C Temperature Range
