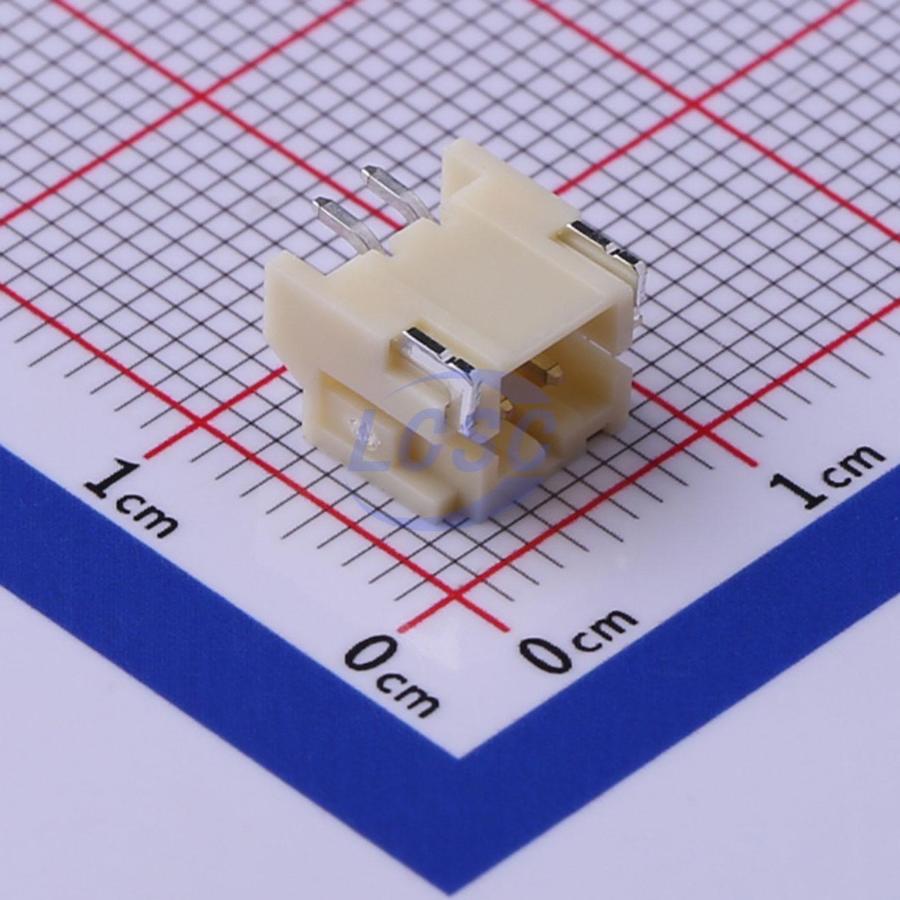

S2B-PH-SM4-TB(LF)(SN)

Connector Header 2 position 2mm Pitch 2A Surface Mount, Right Angle -25℃~+85℃

PopularSMD,P=2mm,Surface Mount,Right AngleROHS3 CompliantActive

CONN HEADER SMD R/A 2POS 2mm

Manufacturer: JST
Manufacturer part #: S2B-PH-SM4-TB(LF)(SN)
Store part #: C295747
Package / case: SMD,P=2mm,Surface Mount,Right Angle
Category: Headers, Male Pins
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15,210 in stock

#C295747

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹31.58	₹157.90
50+	₹25.44	₹1,272.00
150+	₹22.81	₹3,421.50
1,000+	₹19.51	₹19,510.00
2,000+	₹18.06	₹36,120.00
5,000+	₹17.17	₹85,850.00

Quantity (min 5, multiples of 5)

5 × ₹31.58

₹157.90

excl. GST

₹186.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

S2B-PH-SM4-TB(LF)(SN)

₹157.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type: Surface Mount, Right Angle
Reference Series: PH
Voltage Rating (Max): 100V
Contact Material: Copper alloy
Number of PINs Per Row: 2
Number of Rows: 1
Pitch: 2mm
Flame Retardant Rating: UL94V-0
Current Rating: 2A
Supplementary Features: Auxiliary Solder Pin
Number of PINs: 2P
Contact Plating: Tin
Operating Temperature: -25℃~+85℃
Plastic Material: PA
Color: Beige
X-Length of Bottom Edge on Board (Spacing Line): 7.9mm
Pin Structure: 1x2P

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.29 g

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LAIL-PHC2.0-2P-01-PH-WT#C54905902LAILAN · SMD,P=2mm,Surface Mount,Right Angle	LAILAN	SMD,P=2mm,Surface Mount,Right Angle	7,565	₹10.99 · 7,565 in stock	View
PH2.0-2PWT#C52037422XUNPU · SMD,P=2mm,Surface Mount,Right Angle	XUNPU	SMD,P=2mm,Surface Mount,Right Angle	780	₹6.95 · 780 in stock	View
JXT-PH2.0-2PWT#C52204942JXTCONN · SMD,P=2mm,Surface Mount,Right Angle	JXTCONN	SMD,P=2mm,Surface Mount,Right Angle	1,030	₹5.11 · 1,030 in stock	View
SH-PH2.0-2PWT#C53477401SHOU HAN · SMD,P=2mm,Surface Mount,Right Angle	SHOU HAN	SMD,P=2mm,Surface Mount,Right Angle	12,940	₹4.22 · 12,940 in stock	View
GT-A2001WRS-102SBT01#C53699845G-Switch · SMD,P=2mm,Surface Mount,Right Angle	G-Switch	SMD,P=2mm,Surface Mount,Right Angle	570	₹5.91 · 570 in stock	View

Questions about S2B-PH-SM4-TB(LF)(SN)

What are the key technical specifications of this JST connector header?

This is a 2-position wire-to-board connector header manufactured by JST (MPN: S2B-PH-SM4-TB(LF)(SN)). It belongs to the standard PH Series, featuring a 2mm pitch, a 1x2P single-row pin structure, and a Surface Mount, Right Angle (horizontal/side entry) configuration.

What are the maximum electrical ratings and environmental limits for this connector?

The connector is rated for a maximum voltage of 100V and a current rating of 2A. It is designed to operate reliably within a temperature range from -25℃ to +85℃, making it suitable for standard electronic signaling and power delivery configurations.

What materials are used in the construction and flame retardancy of this component?

The housing is molded from high-performance PA (Polyamide/Nylon) plastic with a Beige color and carries a UL94V-0 flame retardancy rating. The contacts are made of a durable Copper alloy finished with high-conductivity Tin plating.

Does this surface-mount connector include alignment or physical structural supports?

Yes, the layout features a Supplementary Auxiliary Solder Pin (solder tab/ retention clip) design. This enhances the physical mechanical bond to the PCB surface, helping prevent the connector from lifting or shearing off during cable plugging and unplugging.

What is the packaging style and the minimum order quantity (MOQ) on LCSC?

The minimum order quantity is 5 pieces, and orders must be placed in multiples of 5. Wholesale tiered quantity discounts apply for bulk purchases, and high-volume manufacturing orders are fulfilled in standard factory packaging formats suited for automated SMT pick-and-place lines.
