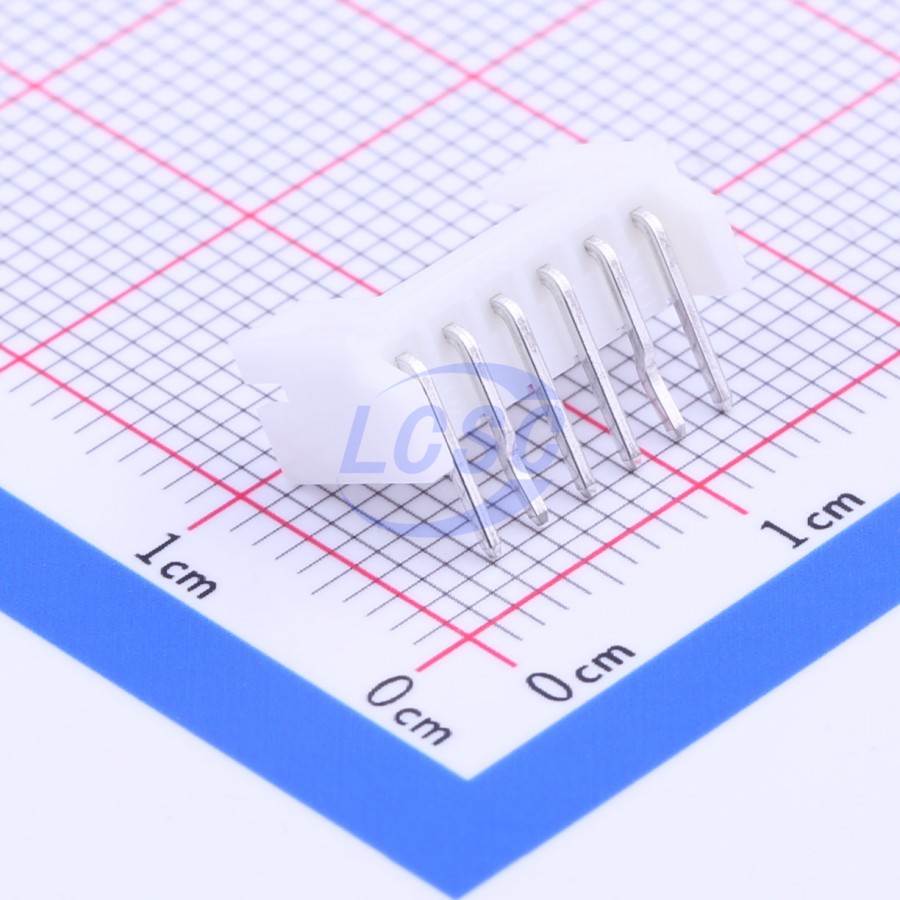

S6B-PH-K-S(LF)(SN)
Connector Header 6 position 2mm Pitch 2A Right Angle -25℃~+85℃
PopularThrough Hole,Right Angle,P=2mmROHS3 CompliantActive
CONN HEADER TH R/A 6POS 2mm
- Manufacturer
- JST
- Manufacturer part #
- S6B-PH-K-S(LF)(SN)
- Store part #
- C157920
- Package / case
- Through Hole,Right Angle,P=2mm
- Category
- Headers, Male Pins
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,16,850 in stock
#C157920
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.46 | ₹94.60 |
| 100+ | ₹7.70 | ₹770.00 |
| 500+ | ₹6.81 | ₹3,405.00 |
| 1,000+ | ₹6.15 | ₹6,150.00 |
| 5,000+ | ₹5.62 | ₹28,100.00 |
| 10,000+ | ₹5.36 | ₹53,600.00 |
10 × ₹9.46
₹94.60
excl. GST
₹111.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per box
S6B-PH-K-S(LF)(SN)
₹94.60 for 10 + GST
Specifications
- Connector Type
- Right Angle
- Reference Series
- PH
- Voltage Rating (Max)
- 100V
- Contact Material
- Brass
- Number of PINs Per Row
- 6
- Number of Rows
- 1
- Pitch
- 2mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 2A
- Supplementary Features
- K Pin
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Number of PINs
- 6P
- Plastic Material
- PA66
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 13.9mm
- Pin Structure
- 1x6P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 500 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.44 g
