JSCJ

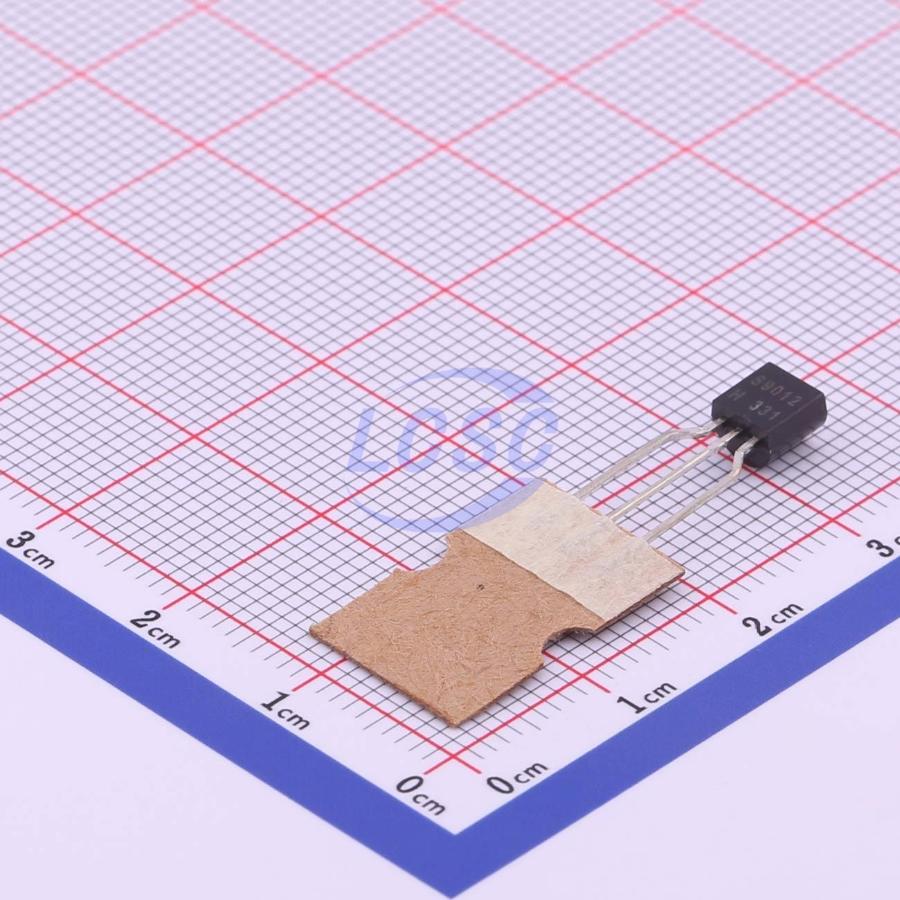

S9012-TA(RANGE:144-202)

Bipolar (BJT) Transistor PNP 25V 500mA 150MHz 625mW Through Hole TO-92

TO-92ROHS CompliantActive

TRANS PNP 25V 500mA TO-92

Manufacturer: JSCJ
Manufacturer part #: S9012-TA(RANGE:144-202)
Store part #: C15086
Package / case: TO-92
Category: Single Bipolar Transistors
Packaging: Box-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,960 in stock

#C15086

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
20+	₹4.90	₹98.00
200+	₹3.81	₹762.00
600+	₹3.21	₹1,926.00
2,000+	₹2.86	₹5,720.00
10,000+	₹2.54	₹25,400.00
20,000+	₹2.37	₹47,400.00

Quantity (min 20, multiples of 20)

20 × ₹4.90

₹98.00

excl. GST

₹115.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per box

S9012-TA(RANGE:144-202)

₹98.00 for 20 + GST

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 100nA
Transition frequency(fT): 150MHz
Collector - Emitter Voltage VCEO: 25V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 144
Current - Collector(Ic): 500mA
Pd - Power Dissipation: 625mW
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 600mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Box-packed
Standard pack: 2,000 / Box
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.314 g
