Silergy

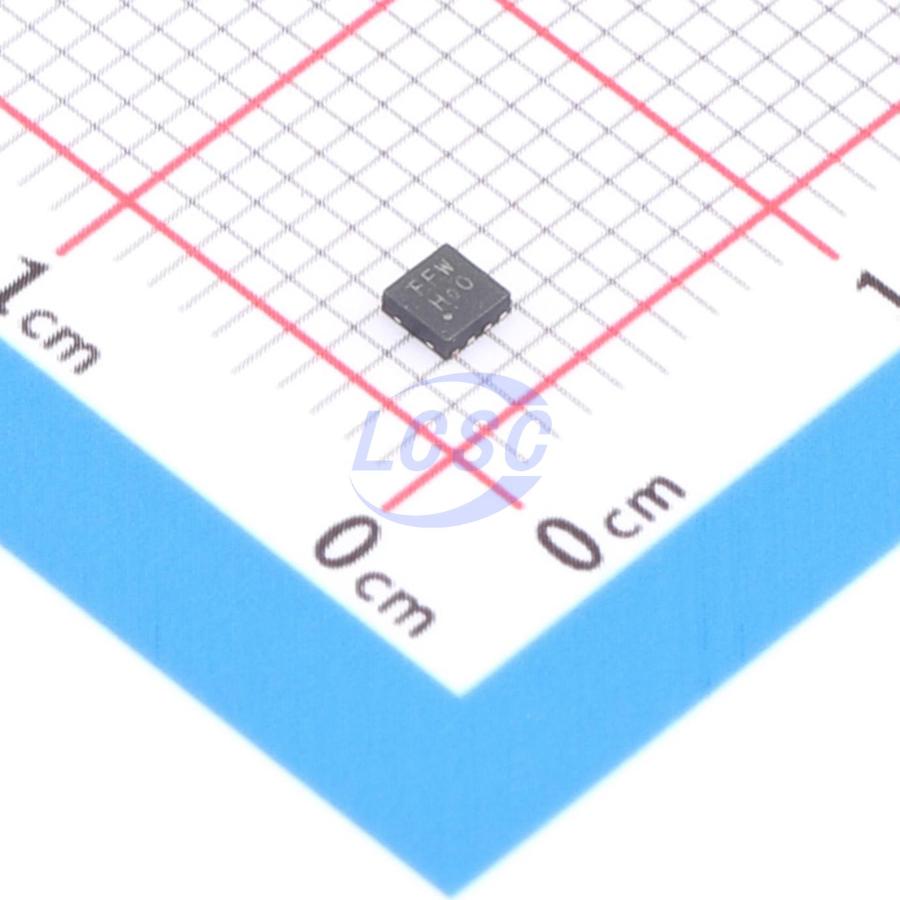

SA23002ADFD

Step-down type 2MHz~2.7MHz Adjustable 2A 600mV~5.5V DFN-8(2x2) Voltage Regulators - DC DC Switching Regulators

DFN-8(2x2)RoHSActive

Manufacturer: Silergy
Manufacturer part #: SA23002ADFD
Store part #: C46628875
Package / case: DFN-8(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

935 in stock

#C46628875

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
1+	₹42.20	₹42.20
10+	₹36.98	₹369.80
30+	₹34.81	₹1,044.30
100+	₹31.98	₹3,198.00
500+	₹30.89	₹15,445.00
1,000+	₹30.02	₹30,020.00

Quantity (min 1)

1 × ₹42.20

₹42.20

excl. GST

₹49.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SA23002ADFD

₹42.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 2MHz~2.7MHz
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.8V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 600mV~5.5V
Quiescent Current: 22uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The SA23002A is a high-efficiency synchronous buck converter capable of delivering 2A output current from an input voltage range of 2.8V to 5.5V. It integrates internal power MOSFETs to provide a resistor-configurable output voltage ranging from 0.6V to the input voltage. The fixed 2.35MHz switching frequency allows the use of smaller external inductors and capacitors. The SA23002A is available in a DFN 2mm×2mm-8 package.
