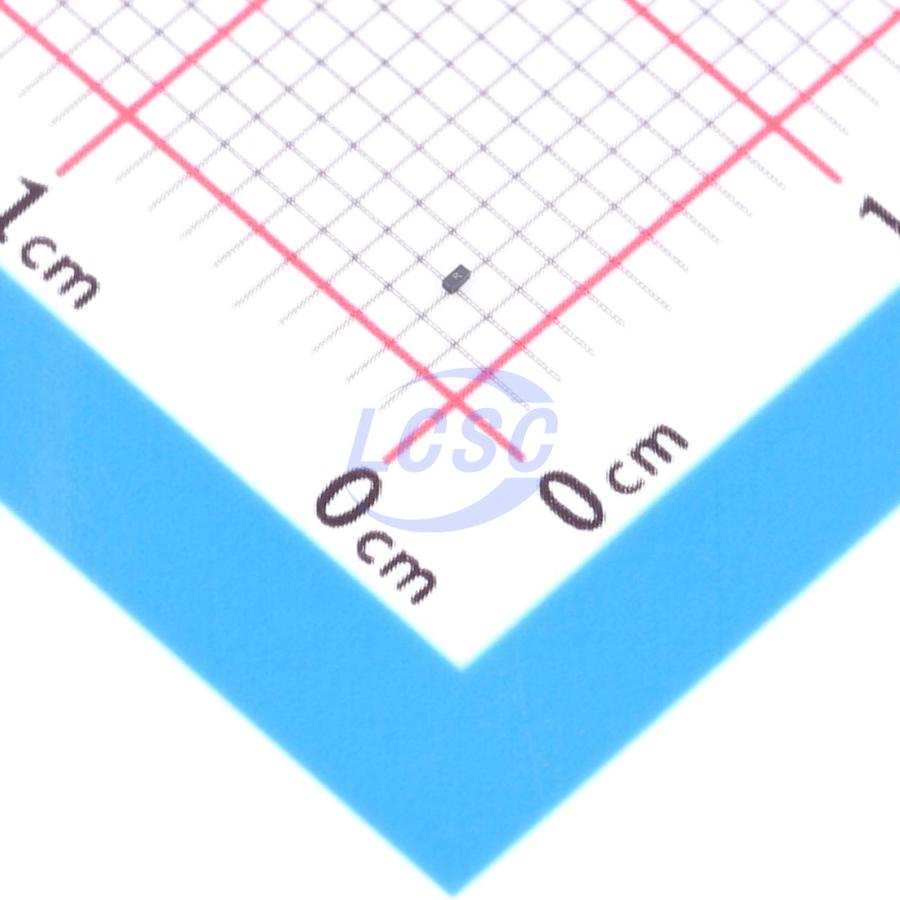

Littelfuse

SC1205-01UTG

10VC Clamp 7A@8/20us Ipp TVS DIODE UDFN-2(0.60x0.30)

UDFN-2(0.60x0.30)ROHS3 CompliantActive

Manufacturer: Littelfuse
Manufacturer part #: SC1205-01UTG
Store part #: C3713173
Package / case: UDFN-2(0.60x0.30)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C3713173

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.02	₹70.10
50+	₹13.72	₹686.00
150+	₹13.51	₹2,026.50
500+	₹13.30	₹6,650.00

Quantity (min 5, multiples of 5)

5 × ₹14.02

₹70.10

excl. GST

₹82.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 15,000 per reel

SC1205-01UTG

₹70.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 10V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 7A@8/20us
Voltage - Breakdown: 5.3V
type: TVS
Reverse Leakage Current (Ir): 1nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 4.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 15,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.004 g

Overview

The SC1205-01UTG bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SC1205-01UTG TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additionally, each TVS can safely dissipate a 7A 8/20us surge event as defined in IEC 61000 - 4-5 2nd Edition.
