Littelfuse

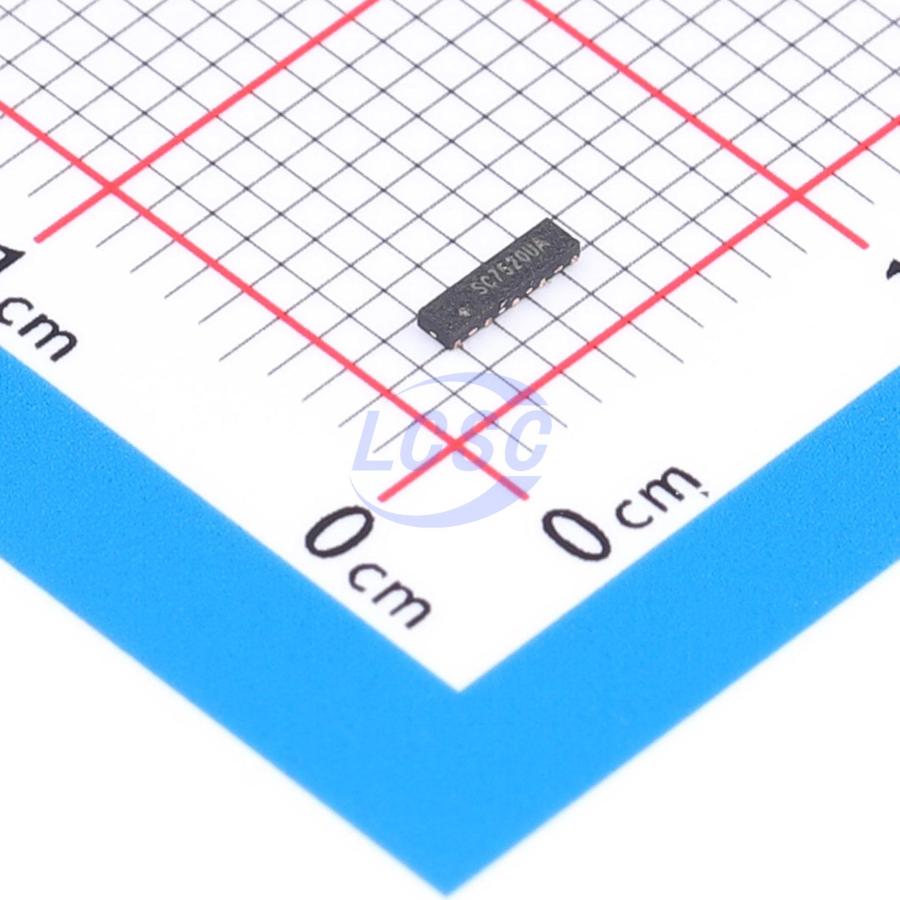

SC7520-08UTG

6VC Clamp TVS DIODE UDFN-9(1x3.8)

UDFN-9(1x3.8)ROHS3 CompliantActive

Manufacturer: Littelfuse
Manufacturer part #: SC7520-08UTG
Store part #: C6801951
Package / case: UDFN-9(1x3.8)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

84 in stock

#C6801951

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹151.09	₹151.09
10+	₹147.82	₹1,478.20
30+	₹145.64	₹4,369.20
100+	₹143.47	₹14,347.00

Quantity (min 1)

1 × ₹151.09

₹151.09

excl. GST

₹178.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SC7520-08UTG

₹151.09 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 6V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Number of Channels: 8
Voltage - Breakdown: 6.5V
type: TVS
Reverse Leakage Current (Ir): 20nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.076 g

Overview

The SC7520-08UTG includes eight channels ultra low capacitance and high-level ESD protection diodes to protect high-speed data rate such as USB 3.1, DisplayPort and e-SATA. The typical capacitance of 0.32pF helps ensure signal integrity and this robust device can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation and safely dissipate 6A of 8/20μs surge current (IEC 61000-4-5 2nd edition).
