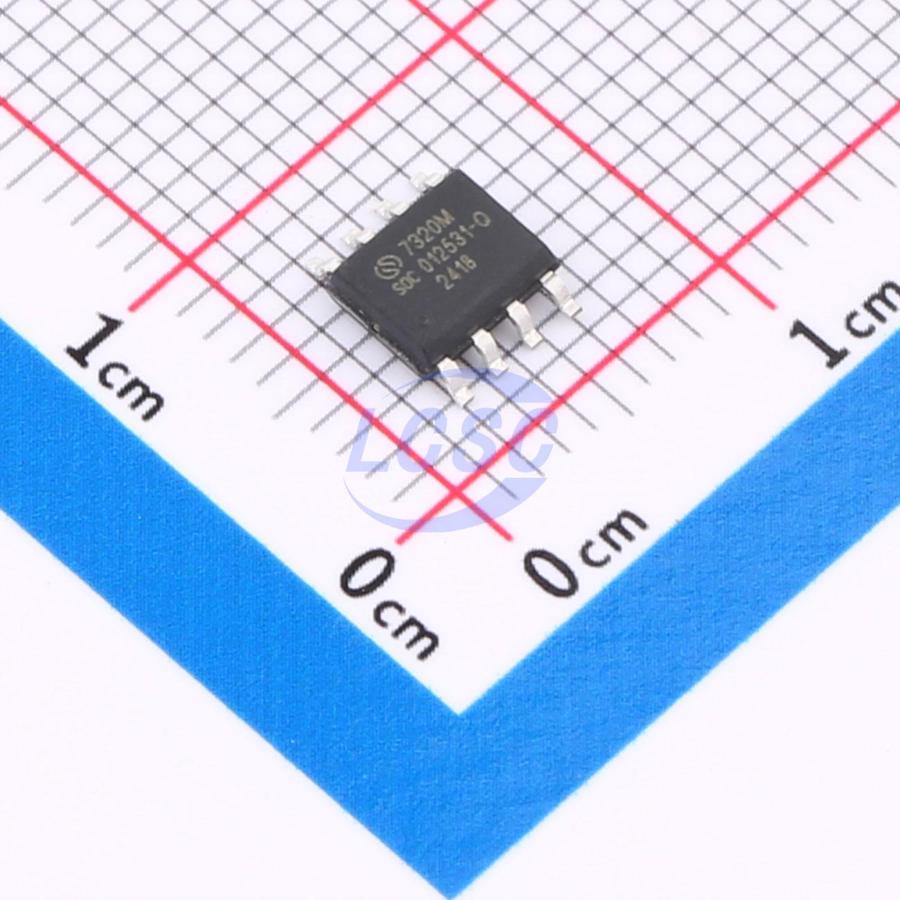

SC92F7320M08U

The SC92F732X series is an enhanced 1T 8051-core industrial-grade Flash microcontroller with an instruction set fully compatible with the traditional 8051 product family. It integrates 8 Kbytes Flash ROM, 256 bytes + 256 bytes SRAM, 128 bytes EEPROM, up to 26 GP I/Os, 14 IOs with external interrupt capability, 3 16-bit timers, 11-channel 12-bit high-precision ADC, 3 independent 8+2-bit PWM channels switchable to 6 output pins, IO drive level control (P0 and P2 ports), internal ±1% high-precision high-frequency 24/12/6/2MHz oscillator and ±4% accuracy low-frequency 128K oscillator, external crystal oscillator support, UART and other communication interfaces. To enhance reliability and simplify customer circuit design, it also integrates high-reliability circuits including a 4-level selectable voltage LVR, 2.4V reference ADC voltage, and an independent 2kHz low-power WDT. With excellent EMI immunity, it is well-suited for a wide range of IoT control, large and small smart home appliances, smart home systems, chargers, power supplies, drone models, walkie-talkies, wireless communications, gaming consoles, and other industrial control and consumer applications.

Applications

• IoT control
• Small and large smart appliances and smart home
• Chargers
• Power supplies
• Drone/RC aircraft
• Walkie-talkies
• Wireless communications
• Game consoles

Key features

• Operating voltage: 2.4V ~ 5.5V
• Operating temperature: -40 ~ 85℃
• Core: High-speed 1T 8051
• Flash ROM: 8 Kbytes Flash ROM (MOVC prohibited addressing 0000H ~ 00FFH), 10,000 erase/write cycles
• IAP: Code option configurable as 0K, 0.5K, 1K, or 8K
• EEPROM: Dedicated 128 bytes, 100,000 erase/write cycles, data retention over 10 years
• SRAM: Internal 256 bytes + external 256 bytes
• Built-in high-frequency 24MHz oscillator (fHRC)
• System clock fSYS selectable via programmer: 24MHz (3.7 - 5.5V) and (-40 ~ 70℃); 12/6/2MHz (2.4 - 5.5V) and (-40 ~ 85℃)
• Frequency error: No more than ±1% across (4.0V ~ 5.5V) and (-20 ~ 85℃) operating conditions
• External 32K oscillator supported as Base Timer clock source, capable of waking from STOP
• Built-in low-frequency 128kHz LRC oscillator, usable as Base Timer clock source, capable of waking from STOP
• Frequency error: No more than ±4% across (4.0V ~ 5.5V) and (-20 ~ 85℃)
• Built-in 2kHz oscillator as WDT CLK source
• 4 selectable reset voltage levels: 4.3V, 3.7V, 2.9V, and 2.3V; default value set by user-programmed Code Option
• 2-wire JTAG programming and emulation interface
• 10 interrupt sources: Timer0, Timer1, Timer2, INT0 ~ 2, ADC, PWM, UART, and Base Timer
• 3 external interrupt vectors with 14 interrupt pins total; all support rising edge, falling edge, and dual-edge triggering
• 2-level configurable interrupt priority
• Up to 26 bidirectional independently controllable I/O ports with individually configurable pull-up resistors
• P0 and P2 port source drive capability with 4-level control
• All I/O pins support high sink current drive capability (70mA)
• 11-bit WDT with selectable clock divider ratio
• 3 standard 80C51 timers: Timer0, Timer1, and Timer2
• Timer2 supports Capture function
• 3-channel 8+2-bit PWM with shared period and individually adjustable duty cycles, each switchable to different pin outputs (6 outputs total)
• 5 I/O pins configurable as 1/2 BIAS LCD COM outputs
• 1 dedicated UART port
• Built-in 2.4V internal reference voltage
• 2 ADC reference voltage options: VDD and internal 2.4V
• 1 internal ADC channel for direct VDD measurement
• Configurable ADC conversion complete interrupt
• IDLE Mode, wake-up by any interrupt
• STOP Mode, current < 1μA, wake-up by INT0 ~ 2 and Base Timer
