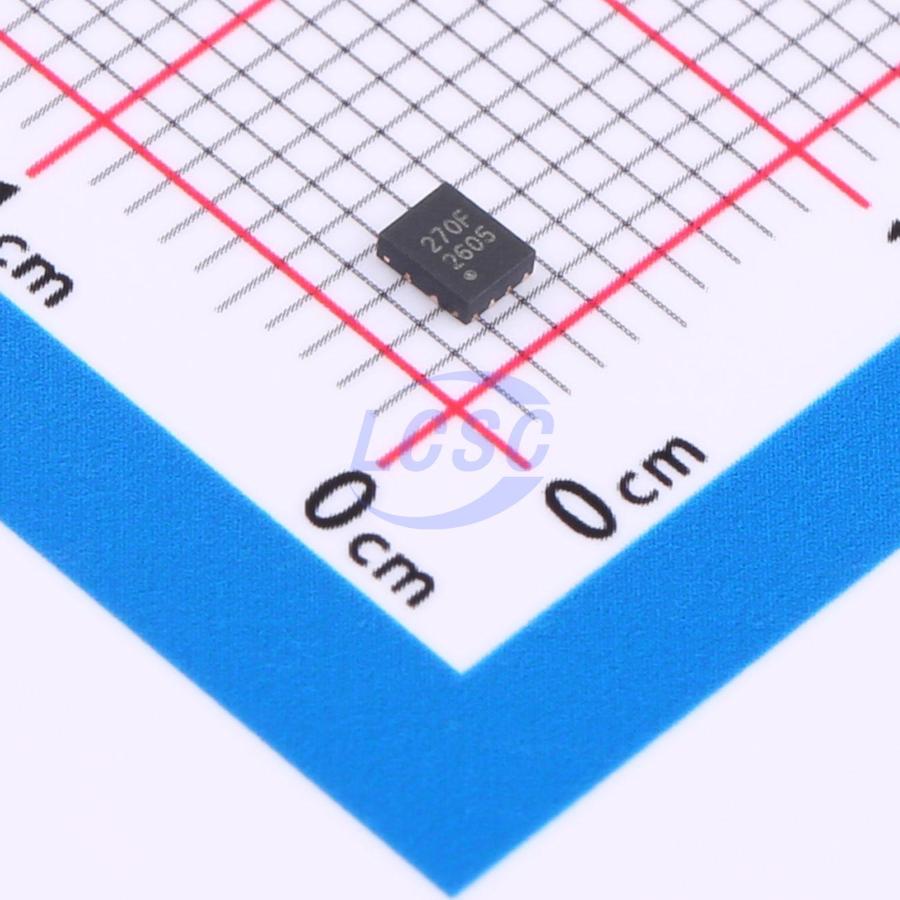

SCT1270FFQAR

The SCT1270F is a high efficiency synchronous boost converter with fully integrated a 17mΩ high - side MOSFET and a 14mΩ low - side MOSFET, featuring 2.7V to 12V input voltage range to support single cell or two cell Lithium ion/polymer batteries and up to 9.5A peak switch current. The switch current limit can be adjustable with an external resistor. The SCT1270F has 7A continuous switch current capability and provides output voltage up to 12.6V. The SCT1270F adopts constant off - time peak current control to provide fast transient response. An external compensation network allows flexibility setting loop dynamics to achieve optimal transient performance at different load conditions. The SCT1270F works in the PWM at moderate and heavy load condition and also works in the PWM mode at light load to avoid application problems caused by low switching frequency. The switching frequency is adjustable from 200KHz to 2.2MHz. The SCT1270F features output overvoltage protection and thermal shutdown protection when the device over loads. The device is available in a QFN - 11 2mm x 2.5mm package.

Applications

• Bluetooth Speaker
• Portable POS Terminal
• Quick Charge Power Bank
• E - Cigarette
• Outdoor Flashlight

Key features

• Wide Input Voltage Range: 2.7V - 12V
• Wide Output Voltage Range: 4.5V - 12.6V
• Fully Integrated 17mΩ High Side FET and 14mΩ Low Side FET
• Up to 93% Efficiency at Vin = 3.3V, Vout = 9V, and Iout = 2A
• Programmable and Up to 9.5A Peak Switch Current Limit
• Typical Shut - down Current: 1μA
• Adjustable Switching Frequency: 200KHz to 2.2MHz
• Forced PWM Operation Mode at Light Load
• Internal Soft Start and External Compensation
• Cycle - by - Cycle Overcurrent Protection
• Output Overvoltage Protection
• Thermal Shutdown Protection: 160°C
• QFN - 11 2mm x 2.5mm Package
