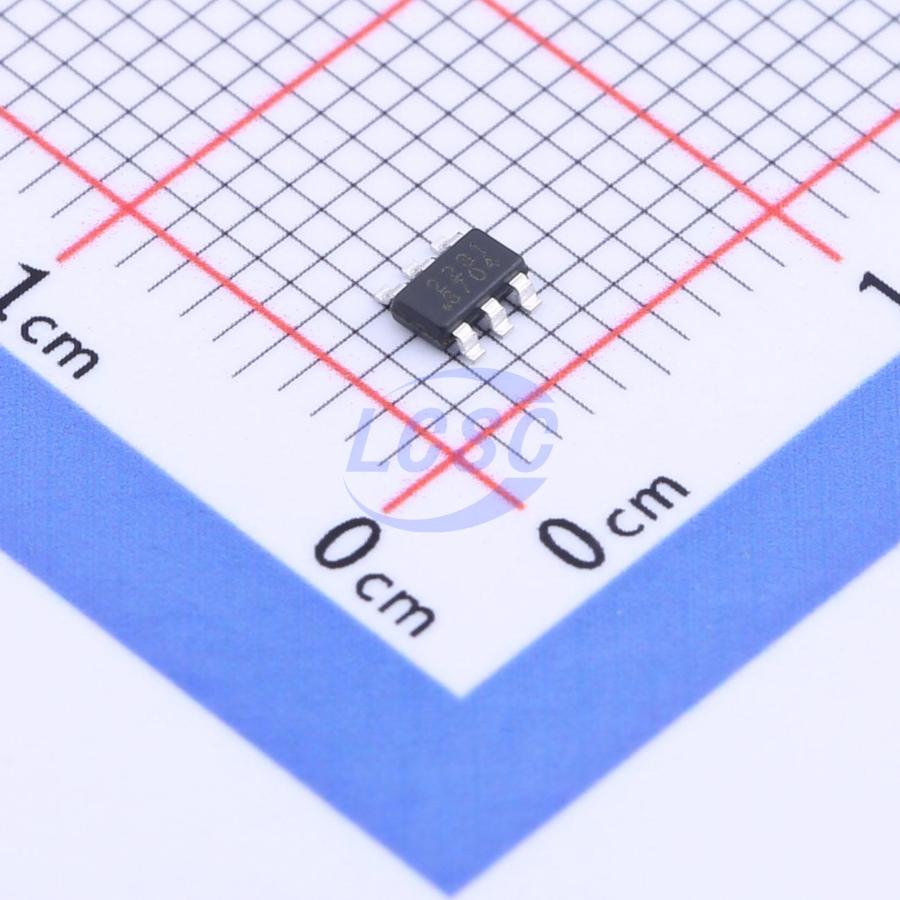

SCT2231TVBR

The SCT2231 is a fully integrated high efficiency synchronous step-down DCDC converter capable of delivering 3A current. The devices operate over a wide input voltage range from 4.2V to 17V and fully integrate high-side power MOSFETs and synchronous MOSFETs with very low Rdson to minimize the conduction loss. With 750 kHz switching frequency, low output voltage ripple, small external inductor and capacitor size are achieved. SCT2231 adopts adaptive constant ONtime control architecture to achieve fast load transient responses for step-down applications. The SCT2231 operates in Forced Pulse Width Modulation (FPWM) mode, which maintains small output voltage ripple during light load operation. It includes full protection features, such as over current protection, output under-voltage protection, input under-voltage lockout, and thermal shutdown. The SCT2231 requires a minimal number of external components and is available in a space-saving SOT563 and TSOT23-6 package.

Applications

• Flat Panel Digital TV and Monitors
• Surveillance
• Set Top Boxes
• Networking Systems
• Consumer Electronics General Purpose

Key features

• Wide Input Voltage: 4.2 - 17V
• 3A Continuous Output Current with Integrated 70mΩ/42mΩ FETs
• Wide Output Voltage Range: 0.8V - 7V
• Quiescent Current 275uA
• Cycle-by-Cycle Current Limiting
• Internal 2ms Soft-Start Limits the Inrush Current
• Fixed 750kHz Switching Frequency
• Input Under-Voltage Lockout
• Forced PWM Mode at Light Load
• Over-Temperature Protection
• Available in a SOT563 and TSOT23 Package
